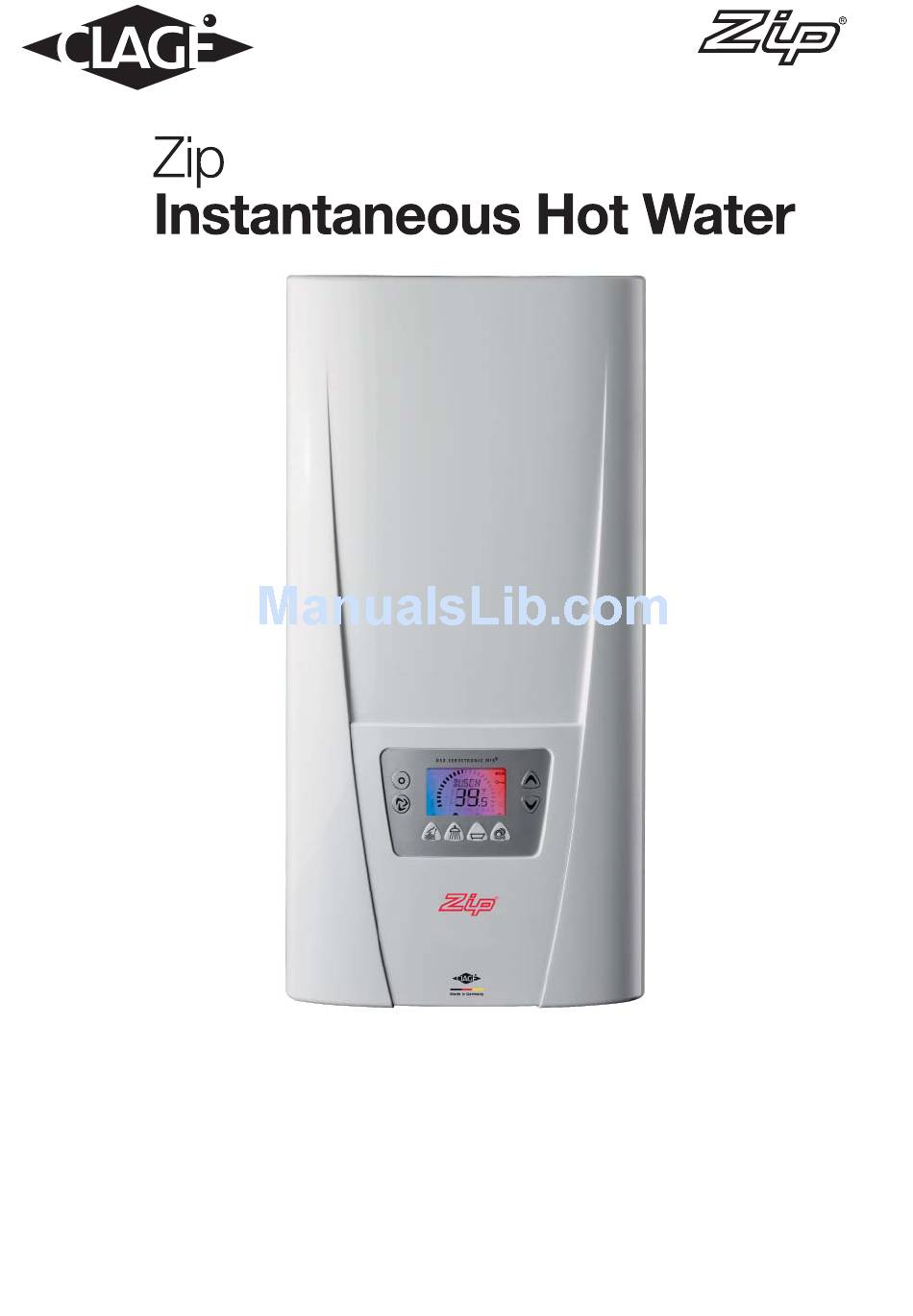

Electronically controlled instantaneous water heater
DSX: : 27940 - 50 °C models
Instructions for the user
For 50 ºC models, the appliance delivers water not exceeding 50 ºC in accordance with AS3498.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zip DSX ELECTRONIC MPS 27940 and is the answer not in the manual?

Questions and answers

Related Manuals for clage Zip DSX ELECTRONIC MPS 27940

Summary of Contents for clage Zip DSX ELECTRONIC MPS 27940

  • Page 1 Electronically controlled instantaneous water heater DSX: : 27940 - 50 °C models Instructions for the user For 50 ºC models, the appliance delivers water not exceeding 50 ºC in accordance with AS3498.

  • Page 2: Overview

    1. Overview When ordering spare parts, please always specify the appliance model and serial number. M A D E I N G E R M A N Y Pos. Part.-No. Description Pos. Part.-No. Description 801097 Hot water connection 801103 DSX control panel Outlet pipe Inlet pipe 801098...

  • Page 3: Table Of Contents

    Contents 1. Overview ....................2 2.

  • Page 4: Safety Instructions

    3. Safety instructions Installation, initial operation and maintenance of this appliance must only be conducted by an authorised professional, who will then be responsible for adherence to applicable standards and installation regulations. We assume no liability for any damages caused by failure to observe these instructions.

  • Page 5: Technical Specifications

    4. Technical specifications ® Model DSX ELECTRONIC MPS Part no. 27940 - 50 °C models Rated capacity / rated cur- 18 kW..27 kW (26 A..39 A) rent Chosen capacity / current 18 kW (26 A) 21 kW (30 A) 24 kW (35 A) 27 kW (39 A) Electrical connection 3/PE 380..415 V AC...

  • Page 6: Typical Installation

    6. Typical installations...
  • Page 7 6. Typical installations Alternativer alternative Kabeleingang rear cable entry Example of installation with two tap connections. depth of the unit: rear G1/2“ cable entry shut-off valve Maßangaben in mm dimensions in mm...

  • Page 8: Description Of Appliance

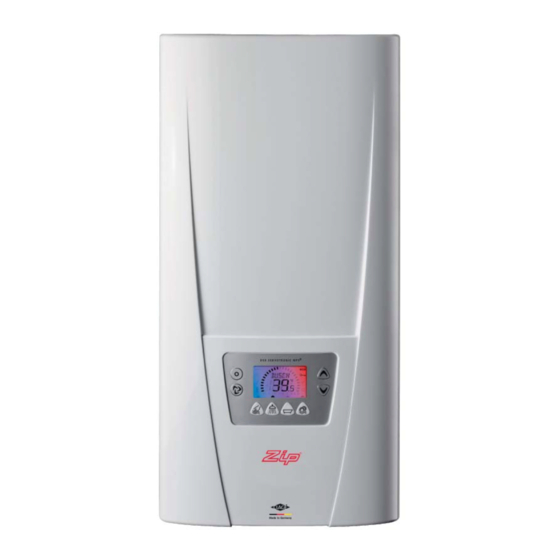

    7. Description of applicance The instantaneous water heater DSX is a microprocessor-controlled, pressure-resistant water heater for a decentralised water supply to one or more tap connections. Its electronic control regulates the power consumption depending on the selected outlet temperature, the respective inlet temperature and the flow rate, thus reaching the set temperature exactly to the degree and keeping it constant in case of pressure fluctuations.

  • Page 9: Info Menu

    8. Operation Info menu Info menu The Info menu offers a variety of display values, that provide information on vari- ous parameters. Press the info key for at least 3 seconds to call up the Info menu, the display confirms by “Info”. Press ≥...

  • Page 10: Setup Menu

    8. Operation Control value Indication of calibration value of the control system. Setup menu Diagnostics Indication of the last ten diagnostic messages. Signal Press ≥ 3 secs Indication of the current I C- connection quality in %. Software version Information about installed software version. Note: Values of the Info menu cannot be modified or entered.
  • Page 11 8. Operation Tone Activation and deactivation of key tone. Setting options: Setup menu “on“ key tone activated “--“ key tone deactivated Press Background light ≥ 3 secs Activation and deactivation of display background light Setting options: “on“ background light constantly on “At“...
  • Page 12 8. Operation Lock level Setup menu To enter “Lock level” mode, you will need to access the Setup menu. Press Press the setup key and the info key simultaneously for ≥ 3 secs at least 3 seconds to call up the setup menu, the display con- firms by “setup”.

  • Page 13: Performance Monitoring

    “Energy Efficiency Monitor“: Individual parameter as follows: CLAGE (or Clock, if enabled) C LO C K This is the normal display mode without an activated Energy and Status Monitor. If the clock was enabled in the Setup menu, it is only shown in normal display mode.

  • Page 14: Reset To Factory Settings

    8. Operation Reset to factory setting Factory reset To return to factory settings: • Press and hold the setup key , the display now counts backwards from “10” to “00” in second intervals. Press + hold! • The appliance is reset at value “00” Note: To cancel the reset process, release the setup key before the count-...

  • Page 15: Maintenance

    9. Maintenance N.B. Maintenance work must only be carried out by a qualifi ed tradesperson familiar with instantaneous water heaters. Plastic surfaces and sanitary fi ttings should only be wiped with a damp cloth. Never use abrasive or chloric cleaning agents or solvents. Outlet fi...
  • Page 16 11. Notes...
  • Page 17 11. Notes...

  • Page 18: Quick Reference Guide

    Head Office Telephone: (02) 9796 3100 Free Call: 1 800 638 633 Zip Heaters (Aust) Pty. Ltd. ABN: 46 000 578 727 67 Allingham Street As Zip policy is one of continuous Condell Park NSW 2200 product improvement, changes Postal: Locked Bag 80 to specifications may be made Bankstown 1885 Australia without prior notice.
