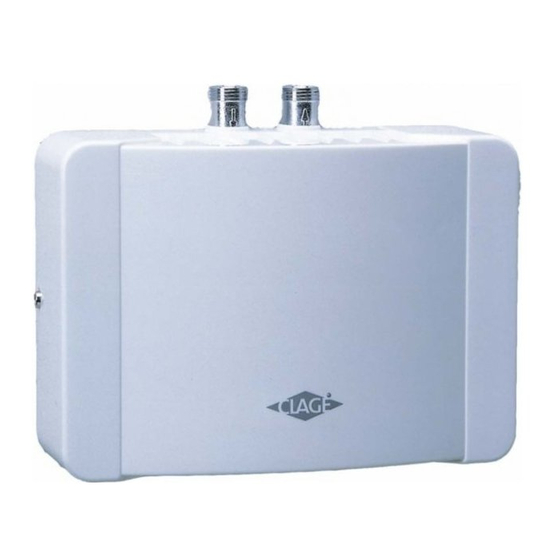

- Page 1 Klein-Durchlauferhitzer MH 3..7 und MDH 3..7 Gebrauchs- und Montageanleitung Small instant water heaters MH 3..7 and MDH 3..7 Operating and installation instructions ...wirtschaftlich warmes Wasser.
- Page 3 Spezial-Strahlregler (M22/24) einsetzen (liegt dem Gerät bei) Ø 50 Elektroanschluss mit Netzleitung (ggf. kürzen) 3/8“ M../ ENM G 3/8 Eckventil Abgang G 3/8 Kabeleingang ≥ ca. 297 3/8” Maßangaben in mm M../ SNM M.. / BG M.. / SMB M.. / BGS...
- Page 4 3.5 kW 4.4 kW 5.7 kW 6.5 kW 1 .4 1 .7 2 .0 2 .5 3 .0 3 .5 4 .0 Warmwasserleistung l/min...
- Page 6 MH 3..7...
- Page 7 MH 3..7, MDH 3..7 Inhaltsverzeichnis · Table of contents · Index...
- Page 8 MH 3..7, MDH 3..7 Layout of appliance and spareparts Pos. Description Pos. Description wall bracket appliance hood water connector heating wire filter safety thermal cut-out (MDH only) fastening earth clip flow adjustment screw microswitch set of small spareparts (for spare...
-
Page 9: Safety Notes
This small instantaneous water heater shall supply a single outlet and shall only be used for heating drinking water with a specific water resistance of ≥ 800 Ω cm at 15 °C. Types MH 3..7 may be used only with special safety taps (open outlet)! Use for any other purpose is not permitted. -
Page 10: Maintenance And Cleaning
MH 3..7, MDH 3..7 Purging To prevent damage to the appliance, the instantaneous water heater must be purged for air before using it for the first time. Each time it is emptied (e.g. after work on the plumbing system, if there is a risk of frost or following repair work), the appliance must be purged for air before it is used again. -
Page 11: Installing The Appliance
The heater is installed as shown in the immediate vicinity of the outlet in a frost-free room. We guarantee trouble-free operation only if CLAGE fittings and accessories are used. Note the following during installation: • Observe the statutory regulations of the respective country, as well as those of the local electricity and water supply companies. - Page 12 MH 3..7, MDH 3..7 Electrical connection Fill the appliance completely with water by repeatedly opening and closing the tap before connecting to electrical power. The heating element may be damaged if this is not done! • The installation must comply with current IEC regulations or national local regulations or any particular regulations, specified by the local electricity supply company!
-
Page 13: Technical Specifications
MH 3..7, MDH 3..7 Technical specifications Type MH 3 MDH 3 MH 4 MDH 4 MH 6 MDH 6 MH 7 MDH 7 Capacity system open outlet • / 0 (0) – • / 0 (0) – • / 0 (0) –... -
Page 14: Customer Service
/ the shut-off valve the jet regulator is not fitted fit the special CLAGE jet regulator water flows more slowly- water pressure is not sufficient check the water flow pressure than expected remove any dirt from the filter, valves and/or taps... - Page 15 21337 Lüneburg Fon: +49 (0) 41 31 - 89 01-0 Fax: +49 (0) 41 31 - 83 200 E-Mail: info @ clage.de Internet: www.clage.de CLAGE GmbH Zentralkundendienst Fon: +49 (0) 41 31 - 89 01-40 Fax: +49 (0) 41 31 - 89 01-41 E-Mail: service @ clage.de...
