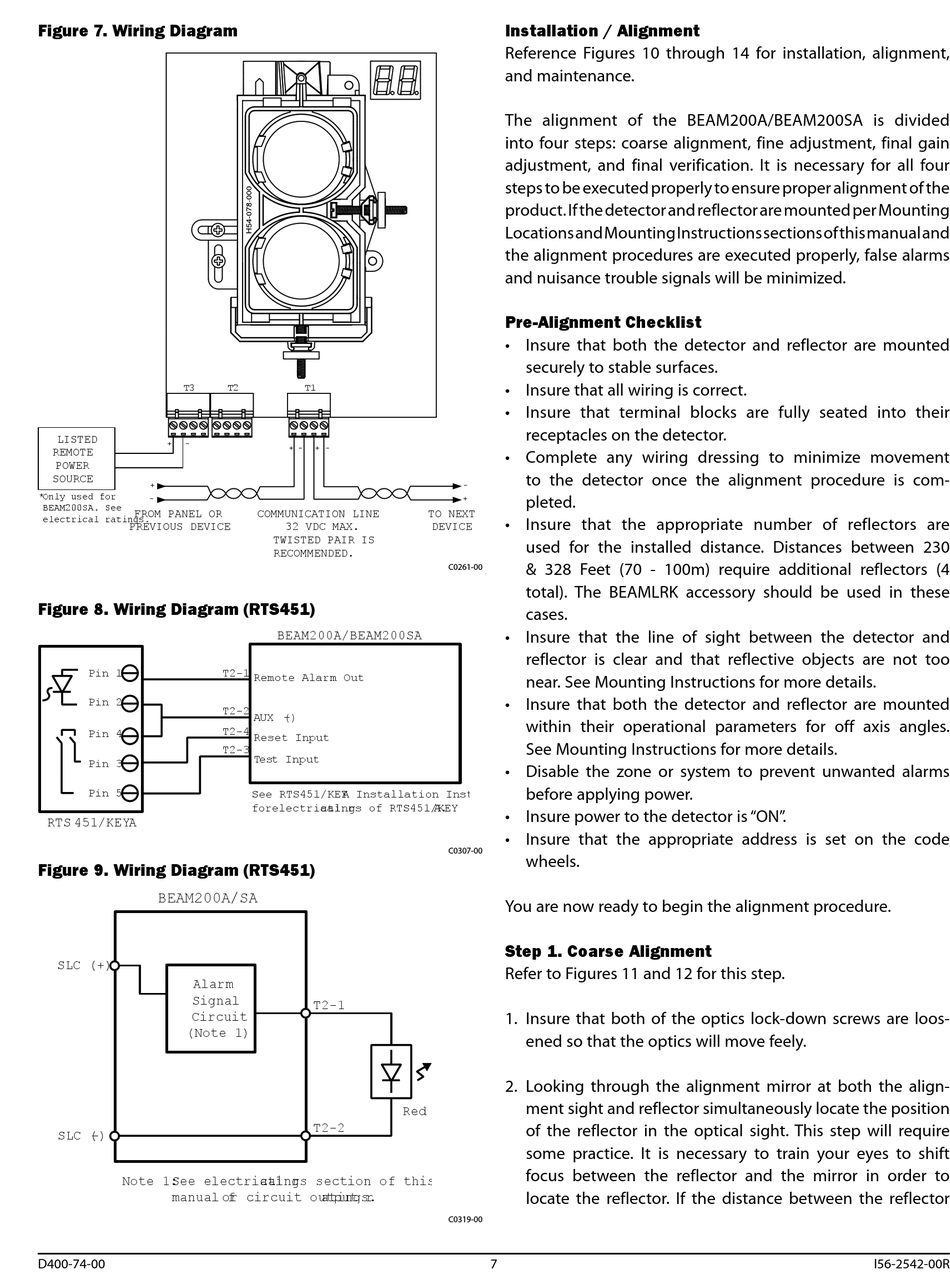

Figure 7. Wiring Diagram
T3
LISTED
+ –
REMOTE
POWER
SOURCE
+
* Only used for
–
BEAM200SA. See
FROM PANEL OR
electrical ratings.
PREVIOUS DEVICE
Figure 8. Wiring Diagram (RTS451)
Pin 1
Pin 2
Pin 4
Pin 3
Pin 5
RTS 451/KEYA
Figure 9. Wiring Diagram (RTS451)
BEAM200A/SA
SLC (+)
Alarm
Signal
Circuit
(Note 1)
SLC ( –)
Note 1: See electrical r
manual f or circuit output r
D400-74-00
T2 T1
+ – + –
COMMUNICATION LINE
32 VDC MAX.
TWISTED PAIR IS
RECOMMENDED.
BEAM200A/BEAM200SA
T2-1
Remote Alarm Out
T2-2
AUX ( – )
T2-4
Reset Input
T2-3
Test Input
See RTS451/KEY A Installation Inst
for electrical r atings of RTS451/KEY
T2-1
Red
T2-2
atings section of this
atings.

Installation / Alignment

Reference Figures 10 through 14 for installation, alignment,
and maintenance.
The alignment of the BEAM200A/BEAM200SA is divided
into four steps: coarse alignment, fine adjustment, final gain
adjustment, and final verification. It is necessary for all four
steps to be executed properly to ensure proper alignment of the
product. I f t he d etector a nd reflector are mounted p er M ounting
Locations a nd M ounting I nstructions s ections o f t his m anual a nd
the alignment procedures are executed properly, false alarms
and nuisance trouble signals will be minimized.

Pre-Alignment Checklist

• I nsure that both the detector and reflector are mounted
securely to stable surfaces.
• I nsure that all wiring is correct.
• I nsure that terminal blocks are fully seated into their
receptacles on the detector.
• C omplete any wiring dressing to minimize movement
to the detector once the alignment procedure is com-
–
pleted.
+
TO NEXT
• I nsure that the appropriate number of reflectors are
DEVICE
used for the installed distance. Distances between 230
& 328 Feet (70 - 100m) require additional reflectors (4
C0261-00
total). The BEAMLRK accessory should be used in these
cases.
• I nsure that the line of sight between the detector and
reflector is clear and that reflective objects are not too
near. See Mounting Instructions for more details.
• I nsure that both the detector and reflector are mounted
within their operational parameters for off axis angles.
See Mounting Instructions for more details.
• D isable the zone or system to prevent unwanted alarms
before applying power.
A.
• I nsure power to the detector is "ON".
• I nsure that the appropriate address is set on the code
C0307-00
wheels.
You are now ready to begin the alignment procedure.
Step 1. Coarse Alignment
Refer to Figures 11 and 12 for this step.
1. I nsure that both of the optics lock-down screws are loos-
ened so that the optics will move feely.
2. L ooking through the alignment mirror at both the align-
ment sight and reflector simultaneously locate the position
of the reflector in the optical sight. This step will require
some practice. It is necessary to train your eyes to shift
focus between the reflector and the mirror in order to
locate the reflector. If the distance between the reflector
C0319-00
