bay should make the plug-in process an effort-less task. You
should be able to feel the contact resistance of the docking
connector when pushing the controller inwards.
2. Pull the ejector handle outwards and orient it to an angle of
approximately 15 degree relative to the controller rear panel.
Carefully orient it so that the notches on the handle can lock
onto the protruded edge of enclosure rail on the left-hand side.
This is crucial for the positive insertion of the controller unit.
(See Figure 2- 5)

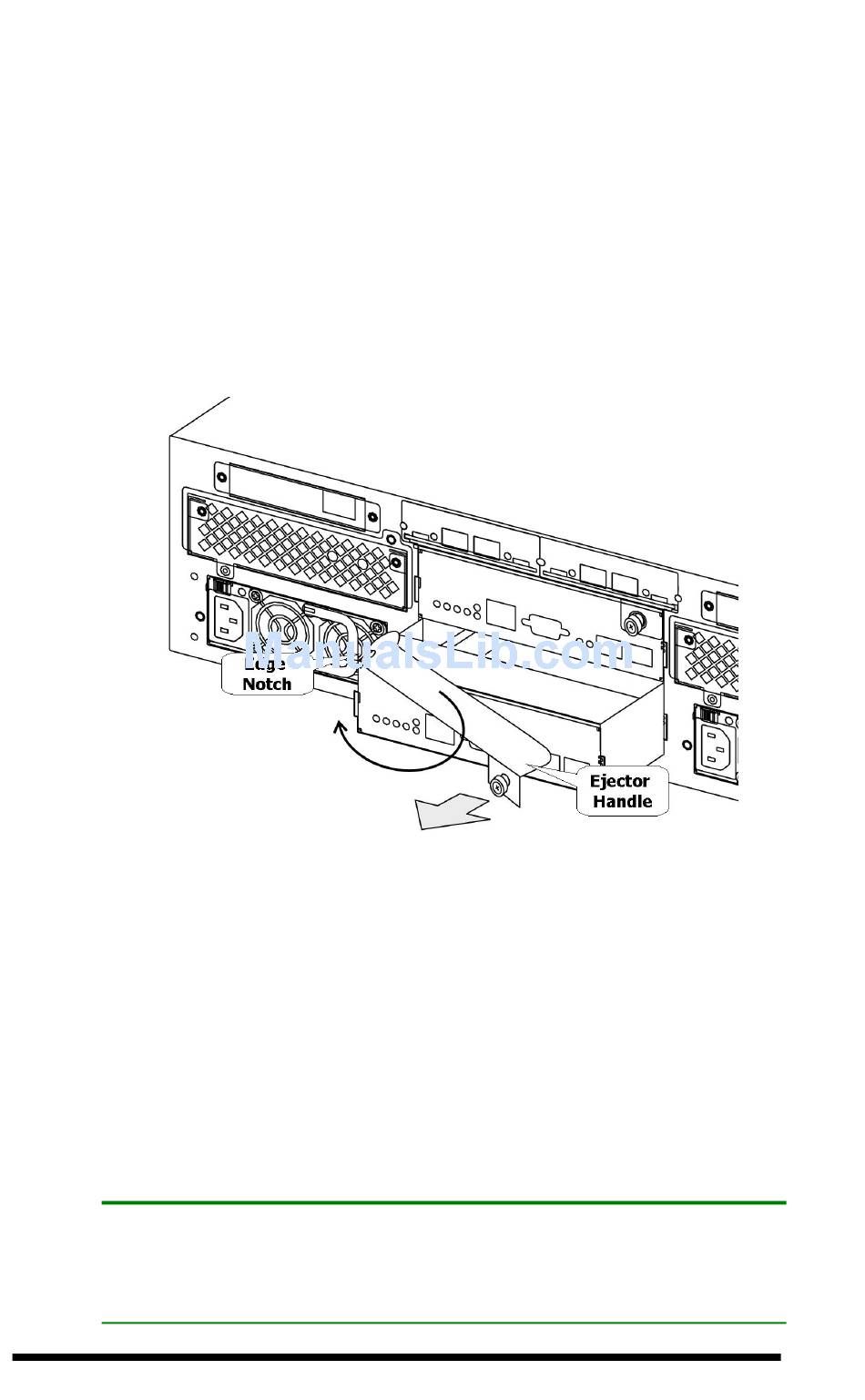

Figure 2- 5: Inserting the Controller Module
3. Secure the controller module to the enclosure by fastening the
hand screw. Insert the retention screw on the right hand side of
the ejector handle.
2.8 Hard Drive Installation
WARNING:
1. Handle hard drives with extreme care. Hard drives are very
delicate. Dropping a drive onto a hard surface (even over a
2-10
Galaxy 16i User's Manual
