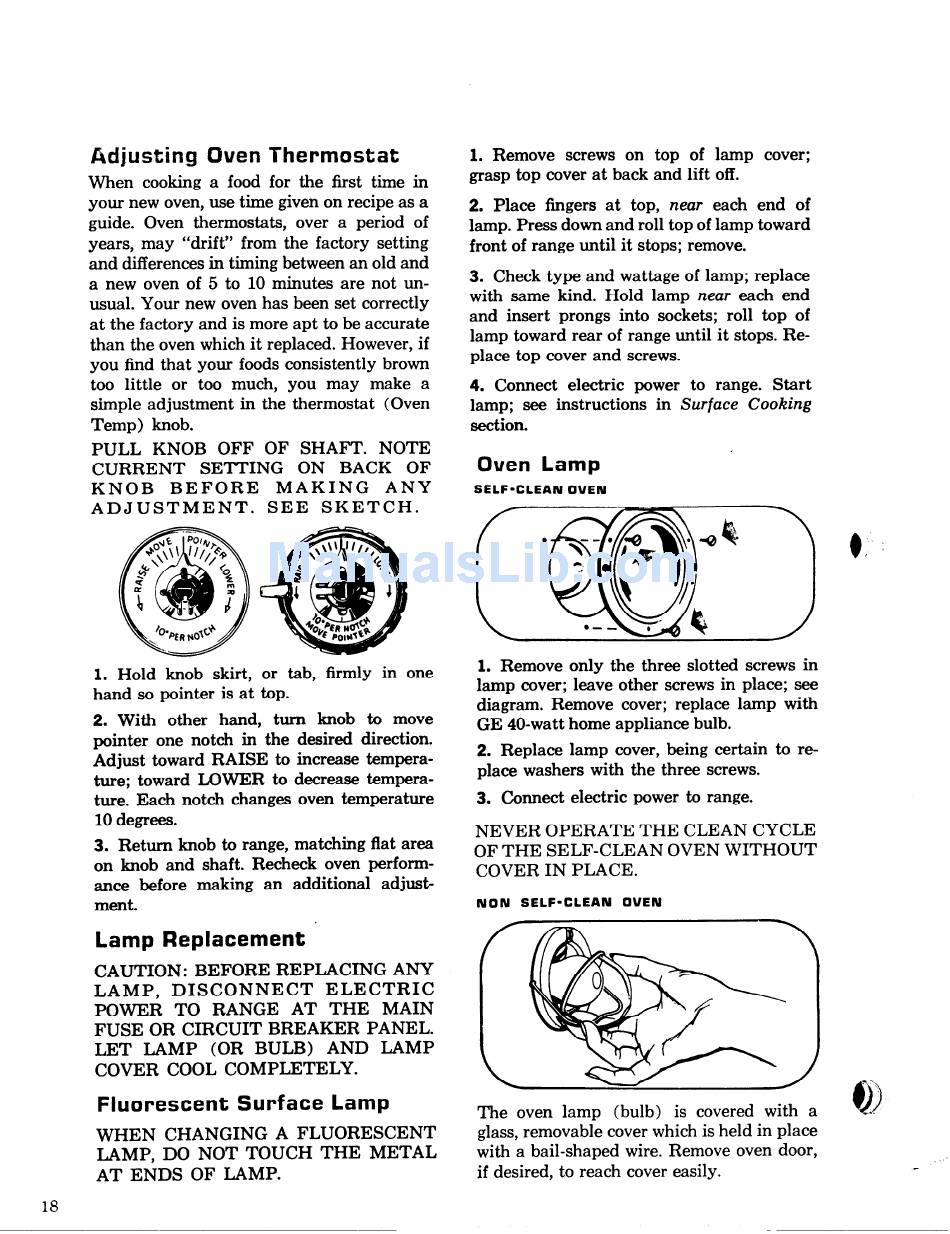

Adjusting
Oven Thermostat
When cooking a
food for the first time in
your new oven, use time given on recipe as a
guide.
Oven thermostats, over a period of
years, may "drift" from the factory setting
and differences in timing between an old and
a new oven of 5 to
10
minutes are not un-
usual. Your new oven has been set correctly
at the factory and is more apt to be accurate
than the oven which it replaced. However, if
you find that your foods consistently brown
too little or too much, you may make a
simple adjustment in the thermostat (Oven
Temp) knob.
PULL KNOB OFF OF SHAFT. NOTE
CURRENT
SETI'ING
ON BACK
OF
KNOB
BEFORE
MAKING
ANY
ADJUSTMENT.
SEE
SKETCH.
1.
Hold knob skirt, or tab, firmly in one
hand so pointer is at top.
2. With other hand, turn knob to move
pointer one notch in the desired direction.
Adjust toward RAISE to increase tempera-
ture; toward LOWER to decrease tempera-
ture. Each notch changes oven temperature
10 degrees.
3. Return knob to range, matching flat area
on knob and shaft. Recheck oven perform-
ance before making an additional adjust-
ment.
Lamp Replacement
CAUTION: BEFORE REPI.ACING ANY
LAMP,
DISCONNECT
ELECTRIC
POWER TO RANGE AT THE MAIN
FUSE OR CIRCUIT BREAKER PANEL.
LET IAMP
(OR BULB)
AND LAMP
COVER COOL COMPLETELY.
Fluorescent
Surface
Lamp
WHEN
CHANGING
A FLUORESCENT
LAMP,
DO NOT TOUCH
THE
METAL
AT ENDS
OF I.AMP.
18
1.
Remove screws on top of lamp cover;
grasp top cover at back and lift off.
2.
Place fingers at top,
near
each end of
lamp. Press down and roll top of lamp toward
front of range until it stops; remove.
3. Check type and wattage of lamp; replace
with same kind. Hold lamp near
each end
and insert prongs into sockets; roll top of
lamp toward rear of range until it stops. Re-
place top cover and screws.
4. Connect
electric power to range. Start
lamp; see instructions
in Surface Cooking
section.
Owen Lamp
SELF-CLEAN
OVEN
\
\~--
1.
Remove only
the three slotted screws in
lamp cover; leave other screws in place; see
diagram. Remove
cover; replace lamp with
GE 40-watt home appliance bulb.
2. Replace lamp cover, being certain to re-
place washers with the three screws.
3. Connect electric power to range.
NEVER OPERATE
THE CLEAN CYCLE
OF THE SELF-CLEAN
OVEN WITHOUT
COVER IN PLACE.
NON
SELF-CLEAN
OVEN
The
oven
lamp
(bulb)
is covered
with a
glass,
removable cover which is held in place
with a bail-shaped wire. Remove oven door,
if desired, to reach cover easily.
o
'
\
