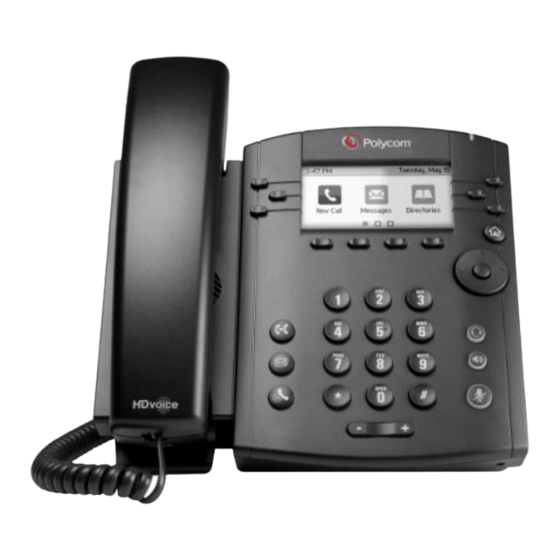

Telstra VVX300 Phone Guide
If you are required to initially configure your
IP phone you will be advised of the
Username and Password. This information
only needs to be entered once via the
QSetup soft key.
Press the QSetup soft key
Press the Server User field
Enter the Server User credentials (obtain
this information from Telstra.
This number will be your phone number)
Press the Server Password field
Press the Mode soft key and tap 123 (to
select numbers)
Enter the Server password (obtain this
information from Telstra)
Press Save Config to Save the Config
You will now need to manually reboot the
phone
Telstra VVX 300 Phone Guide | July 2014
Press the Home button
Press Settings
Press Basic , swipe your finger up the
screen and
Press Restart Phone
Press the Yes soft key (to confirm)
Note 1: Restarting the phone may take a few
minutes
Note 2: If your phone has been preconfigured
the QSetup soft key will not be visible
Note 3: This is only required for phones that are
on DMS (Device Management System)
platform.
To enter the Home View main menu, press
To return to the Line View, press
To select a menu item, press the Home button,
scroll through the icons ad select the relevant
option ie settings or directories by pressing the
Select button in the middle of the Navigation
button.
The VVX300 is a black and white screen
device.
To move through the pages press the right or
left arrow buttons on the Navigation button.
New Call – Select New Call to display
Dialler
From the Dialler, you can enter a number or
URL to place a call
Messages – Select Messages to
access your Voicemail Messages
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VVX300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Telstra VVX300

  • Page 1 Messages – Select Messages to Enter the Server password (obtain this access your Voicemail Messages information from Telstra) The VVX300 is a black and white screen Press Save Config to Save the Config device. You will now need to manually reboot the...
  • Page 2 With the handset on-hook, press the New Call soft key, enter the phone number by using the phone keypad The VVX300 has four soft key buttons at the bottom of the phone. The contact sensitive tabs A held call displays as appearing on the screen relate to the relevant soft key.
  • Page 3 To turn off mute, press the mute button Call Forward Busy. highlight the held call. again Press the Resume soft key to resume your conversation. You cannot receive additional calls while both lines are engaged. Telstra VVX 300 Phone Guide | July 2014 Page 3...
  • Page 4 (20 rings is the maximum) The Do Not Disturb Service has been Press the Do Not Disturb soft key (DND) turned off. Press the Enable soft key Press the Select soft key Telstra VVX 300 Phone Guide | July 2014 Page 4...
  • Page 5 Press the Yes or No soft key. Press the Down arrow to access Missed Press the Add soft key Pressing the Home button takes you back Call List to the main home screen Telstra VVX 300 Phone Guide | July 2014 Page 5...
  • Page 6 The headset button will flash when enabled To change your ring type: Press the Back soft key to return to the From Home View previous screen Scroll across and Select Settings icon Telstra VVX 300 Phone Guide | July 2014 Page 6...
  • Page 7 3... Go to the Greetings Menu or re-record your name 4... Change your Call Forwarding options 8... Change your passcode 9... Exit the Voice Portal #... Repeat this menu †... Only available if assigned. Telstra VVX 300 Phone Guide | July 2014 Page 7...
  • Page 8 Select Message Centre (this will direct you to your voicemail, where you will follow the prompts to retrieve your messages BACK TO MAILBOX 1... Listen to your messages 2... Change your mailbox Busy greeting Telstra VVX 300 Phone Guide | July 2014 Page 8...
