HQ Power VDP250SC4EHJ Manual

1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.

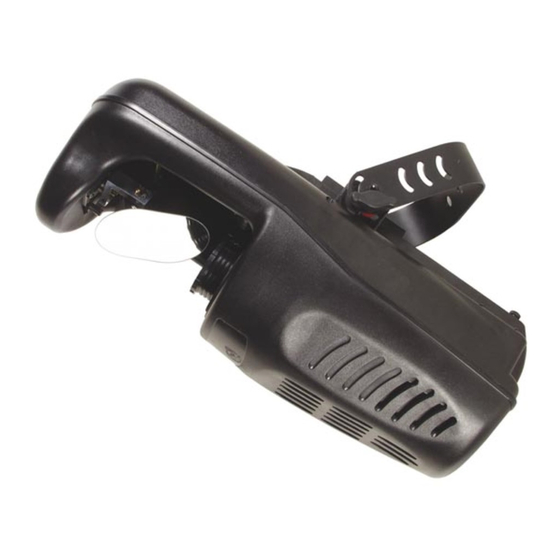

Thank you for buying the VDP250SC4EHJ! It is moulded in new extra strong and heat-resistant plastic materials,
which weigh far less and are more streamlined than a traditional metal case. It features a highly effective lighting
system, comprised of filters and lenses with anti-reflection coatings, enhancing light efficiency by 30% and making
colours more vivid and patterns clearer. The device is DMX512-controlled and equipped with 6 gobos that can be
projected in 7 colours. The device is equipped with blackout, flash and manual focusing functions. Characteristics:
stable, smooth and quiet operation, reliable and safe thanks to the integrated overheating protection. Please read the
manual thoroughly before bringing this device into service.
Make sure there is no damage caused by transportation. Should there be any, don't install the device and consult
your dealer.

2. Safety Instructions

Be very careful during the installation: touching live wires can cause life-threatening electroshocks.
Do not touch the device during operation as the housing heats up.
Keep this device away from rain and moisture.
Unplug the mains lead before opening the housing.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer
will not accept responsibility for any ensuing defects or problems.
• A qualified technician should install and service this device.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device
against damage by leaving it switched off until it has reached room temperature.
• This device falls under protection class I. It is therefore essential that the device be earthed. Have a qualified
person carry out the electric connection.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
• Disconnect the device from the mains to clean it or when it is not in use. Handle the power cord by the plug only.
• There may be some smoke or a particular smell when the device is activated for the first time. This is normal and
any smoke or smell will gradually disappear.
• Do not look directly at the light source as sensitive people may go into epileptic seizure if they do.
• Note that damage caused by user modifications to the device are not covered by the warranty.
• Keep the device away from children and unauthorised users.
VDP250SC4EHJ
VDP250SC4EHJ – OBLIVION 250
1 VELLEMAN
