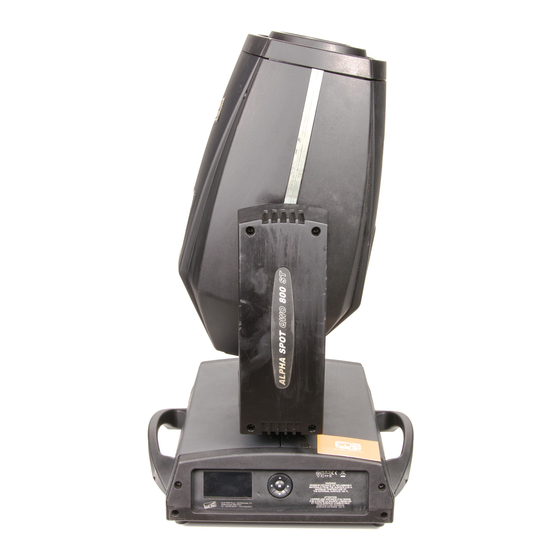

Clay Paky ALPHA SPOT QWO 800 Instruction Manual

Hide thumbs Also See for ALPHA SPOT QWO 800:
Table of Contents

Advertisement

Quick Links

INDEX
Page Contents
2
Safety Information
3
Unpacking and preparation
4
Installation and start-up
5
Control panel
7
Menu setting
15
Maintenance
24
Optional accessories
26
Technical information
26
Cause and solution of problems
27
Channel functions
ALPHA SPOT QWO 800
ALPHA SPOT QWO 800
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
C61380
ST
"
"
C61381

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA SPOT QWO 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clay Paky ALPHA SPOT QWO 800

Summary of Contents for Clay Paky ALPHA SPOT QWO 800

  • Page 1 Menu setting the fitting is installed, used and serviced correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Maintenance or to other property or persons deriving from installation, use and...

  • Page 2: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Clay Paky recommends you carefully read and keep the safety information on this product, also http://www.claypaky.it/en available in digital format at the following link: Ref: [FIS00Y – Safety Information Alpha 800 series] INFORMAZIONI DI SICUREZZA...

  • Page 3: Unpacking And Preparation

    (fitted into projector) 2 x 183102/805 GOM000-001 Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 “ ” ALPHA SPOT QWO 800...

  • Page 4: Installation And Start-Up

    WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. Connecting and disconnecting power cable - Fig. 5 “ ” ALPHA SPOT QWO 800...

  • Page 5: Control Panel

    During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the key will be cancelled. Continue “ ” ALPHA SPOT QWO 800...
  • Page 6 All that is needed is to press to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds. “ ” ALPHA SPOT QWO 800...

  • Page 7: Menu Setting

    Macro fixture Id Channel Display Default Setting Preset User Preset 1 User Preset 2 Access code User Pan / Tilt Advanced 1234 Preset 3 Colour Upload Firmware Beam Setup Model Gobo Calibration Continue “ ” ALPHA SPOT QWO 800...

  • Page 8: Setup Menu

    Custom IP address Custom IP address Allows you to set the IP address manually by the user default. Custom IP mask Custom IP Allows you to set manually the Subnet Mask by the user default. mask “ ” ALPHA SPOT QWO 800...

  • Page 9: Options Menu

    Lets you assign the Tilt channel “home” position at the end of Reset, Def Pos without a DMX input signal. 1) Press , the current setting appears on the display. 2) Use the UP and DOWN keys to select one of the following settings: Continue “ ” ALPHA SPOT QWO 800...

  • Page 10: Autofocus Mode

    Complete that was specifically designed for the projector in question. Zoom Range Complete Zoom Range: The “Autofocus” also works in overrun 3) Press to confirm the selection or LEFT to keep the current setting. “ ” ALPHA SPOT QWO 800...
  • Page 11 Pan Home Def Pos 270 degrees Tilt Home Def Pos Color mixing Color mixing curve Curve 2 Fixed Wheel Shortcut Macro Color Adjustment Shutter on error Dimmer on Shutter Auto-focus mode Limited zoom range Display Continue “ ” ALPHA SPOT QWO 800...

  • Page 12: Information Menu

    Good 0.00 Board 1:6-Ch Good 0.00 0: PT-3f (Pan / Tilt board) Diagnost. 2:8-Ch Good 0.00 1: 6-Ch (6 channel board) 3:6-Ch Good 0.00 2: 8-Ch (8 channel board) 3: 6-Ch (6 channel board) “ ” ALPHA SPOT QWO 800...

  • Page 13: Manual Control

    • Colour effects (CMY, colour wheel / CTO) • Beam effects (Stopper-Strobe / Dimmer / Iris / Prism / Frost / Focus / Zoom / Animation Disk) • Gobo effects (Fixed gobo / Rotating gobo) • All effects Continue “ ” ALPHA SPOT QWO 800...

  • Page 14: Advanced Menu

    – a confirmation message appears on the display (Reset calibration to factory default ?). 2) Select YES to reset calibration to factory default or NO to keep the current setting and return to the top menu level. “ ” ALPHA SPOT QWO 800...

  • Page 15: Maintenance

    1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue “ ” ALPHA SPOT QWO 800...
  • Page 16 Fast lamp ON-OFF cycles (for example 10 minutes ON / 10 minutes OFF) will reduce the lamp life. NORMAL Upper Side HOT SPOT Lower Side Lamp regulation - Fig. 14 To centre the lamp, turn the three adjusting screws as shown in the figure. “ ” ALPHA SPOT QWO 800...
  • Page 17 WARNING: Before using personalised gobos contact Clay Paky. GOM000-001 is the standard Clay Paky package supply for customers who need to make the projected beam uniform, partially reducing the beam itself. This gobo is interchangeable with any other ‘’fixed gobo wheel’’ gobo.
  • Page 18 Replacing rotating gobos (ø 25.7 mm - max 19 mm image – thickness max 1.1 mm) - Fig. 17 IMPORTANT: Use only glass gobos on the rotating gobos wheel. WARNING: Before using personalised gobos contact Clay Paky. COATED GLASS GOBOS TYPE 1...
  • Page 19 • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc. • Electrical, photometric and functional checks; eventual repairs Continue “...
  • Page 20 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. “ ” ALPHA SPOT QWO 800...
  • Page 21 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. Continue “ ” ALPHA SPOT QWO 800...
  • Page 22 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. “ ” ALPHA SPOT QWO 800...
  • Page 23 Battery removal - Fig. 23 This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 “ ” ALPHA SPOT QWO 800...

  • Page 24: Optional Accessories

    Assembling the diffuser filter - Fig. 24 The diffuser filter inserted in the light beam, improves the CMY – CTO and Dimmer projection mix; the light beam itself, with the diffuser filter inserted, loses about 25% of its luminosity. “ ” ALPHA SPOT QWO 800...
  • Page 25 Assembling the diffuser filter - Fig. 25 The diffuser filter inserted in the light beam improves the CMY – CTO and Dimmer projection mix; the light beam itself, with the diffuser filter inserted, loses about 25% of its luminosity. “ ” ALPHA SPOT QWO 800...

  • Page 26: Technical Information

    Signal transmission cable faulty or disconnected. Replace the cables. Incorrect addressing. Check addresses (see instructions). Fault in the electronic circuits. Call an authorised technician. Lenses or reflector broken Call an authorised technician. Dust or grease deposited. Clean (see instructions). “ ” ALPHA SPOT QWO 800...

  • Page 27: Channel Function

    NB: To prevent accidental breakage of the effects, which could collide with each other during transport, ALPHA SPOT QWO 800 & “ST” before switching the projector OFF check that all the projector Channels have been excluded (DMX level = 0 bit.).
  • Page 28 LAVENDER + AQUAMARINE (ONLY FOR LAVENDER LIGHT GREEN + LAVENDER MACRO EFFECTS) LIGHT GREEN GREEN + LIGHT GREEN UNUSED RANGE GREEN CTO 2600 + GREEN CTO 2600 RED + CTO 2600 WHITE + RED WHITE “ ” ALPHA SPOT QWO 800...
  • Page 29 FAST PULSATION, FAST OPENING 65-81 GOBO 4 SLOW PULSATION, FAST OPENING FAST PULSATION 49-64 GOBO 3 SLOW PULSATION 128 - 131 MAXIMUM APERTURE 33-48 GOBO 2 17-32 GOBO 1 0-16 WHITE MINIMUM APERTURE Continue “ ” ALPHA SPOT QWO 800...
  • Page 30 STOP SLOW ROTATION (3 rph) FAST ROTATION (120 rpm) ° POSITION 540 540° ° POSITION 450 POSITION 360 ° 360° ° POSITION 270 ° POSITION 180 POSITION 90 ° 0° DISTANT ° POSITION 0 “ ” ALPHA SPOT QWO 800...
  • Page 31 5 METRES 4 METRES 3 METRES AUTOFOCUS OFF • AUTOFOCUS ADJUSTMENT - channel 24 Operation with option InvertPan (Tilt conventionally represented at 35 bit and option Invert Tilt Off) EFFECT FOCUS FINE FOCUS FINE Continue “ ” ALPHA SPOT QWO 800...
  • Page 32 Effects reset is activated passing throug the unused range and staying 5 seconds in Effects reset levels. EFFECTS RESET UNUSED RANGE The functions are actived passing through the unused range and staying 5 seconds in necessary level “ ” ALPHA SPOT QWO 800...
  • Page 33 • LAMP CONTROL (only with option LAMP DMX On) - channel: 32 IMPORTANT: Alpha Spot QWO 800 is not provided with hot restrike igniter EFFECT LAMP ON (FULL POWER) Lamp ignition after 5 s in full power levels. Immediate transition from half to full power.

  • Page 34: Timing Channels

    Dimmer - Frost - Iris - Focus - Zoom - Prism - Animation Disk Gobo time Static Gobo - Rotating Gobo Change TIME TABLE Seconds Seconds Seconds Seconds Seconds Seconds Full 10.2 10.4 10.6 Follow cue Data “ ” ALPHA SPOT QWO 800...
  • Page 36 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.

This manual is also suitable for:

Alpha spot qwo 800 c61380Alpha spot qwo 800 st c61381
