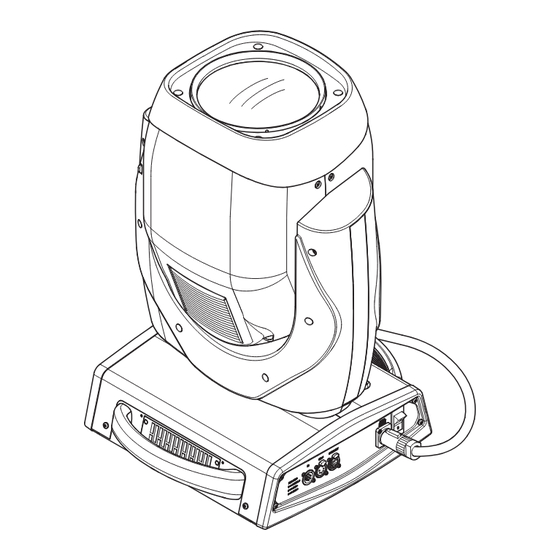

SUPERSH RPY
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
C61390

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERSHARPY C61390 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clay Paky SUPERSHARPY C61390

  • Page 1 CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Control panel or to other property or persons deriving from installation, use and...
  • Page 2: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Clay Paky recommends you carefully read and keep the safety information on this product, also http://www.claypaky.it/en available in digital format at the following link: Ref: [FIS00H – Safety Information Mythos - Supersharpy] INFORMAZIONI DI SICUREZZA...
  • Page 3: Unpacking And Preparation

    UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 SUPERSH RPY...
  • Page 4: Installation And Start-Up

    INSTALLATION AND START-UP Installing the projector - Fig. 4 WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
  • Page 5: Control Panel

    CONTROL PANEL Mains Connecting to the mains supply - Fig. 6 Connecting to the control signal line (DMX) - Fig. 7 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified.
  • Page 6 Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
  • Page 7: Maintenance

    MAINTENANCE 1/4 Turn 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue SUPERSH RPY...
  • Page 8 • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc.
  • Page 9 Cleaning of the filters - Fig. 13. Continue SUPERSH RPY...
  • Page 10 Power IN E IN Bus IN Upper Side Extraction of the effect modules: Preliminary operations - Fig. 14 SUPERSH RPY...
  • Page 11 Lower Side Lower Side Extraction of the effect modules: Preliminary operations - Fig. 15 Continue SUPERSH RPY...
  • Page 12 Upper Side Extraction of the effect modules - Fig. 16 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14 - 15 - 16 - 17 in reverse order SUPERSH RPY...
  • Page 13 Lower Side Extraction of the effect modules - Fig. 17 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14 - 15 - 16 - 17 in reverse order Continue SUPERSH RPY...
  • Page 14 Static gobo wheel removal - Fig. 18 SUPERSH RPY...
  • Page 15 Lower Side remove the lamp contacts protection remove the fan unscrew a bit the 4 nuts to facilitate the lamp replacement pay attention to the right position of the lamp contacts (see pictures) 45° pay attention to the right position of the lamp contacts (see pictures) Lamp change - Fig 19.
  • Page 16 Static and Rotating Gobo - Fig. 21 ATTENTION: - Before use custom gobos contact Clay Paky; - The original gobos have a special coating designed specifically to resist to the high temperatures in the Supersharpy; - The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);...
  • Page 17 Battery removal - Fig. 22 This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 SUPERSH RPY...
  • Page 18: Technical Information

    TECHNICAL INFORMATION Lens IN&OUT 455 (17.91") Lens IN (7.40") 408 (16.06") Lens OUT 427 (16.81") Lens IN 611 (24.05") (15.59") Lens OUT 628 (24.72") (22.44") (16.53") (14.96") Power supplies TILT Color system 115/230V 50/60 Hz - Angle Rotation: 244° • CMY color system based on 3 gradually fading Automatic Power supply switching - Fast speed: 2.060 sec color wheels...
  • Page 19: Cause And Solution Of Problems

    CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON PROBLEMS ELECTRONICS NON-OPERATIONAL DEFECTIVE PROJECTION POSSIBLE CAUSES CHECKS AND REMEDIES REDUCED LUMINOSITY No mains supply. Check the power supply voltage. Lamp exhausted or defective. Replace the lamp. (See instructions). Signal transmission cable faulty or disconnected.
