Enseo Set Top Box - TeleAdapt TA-7630 Installation Manual

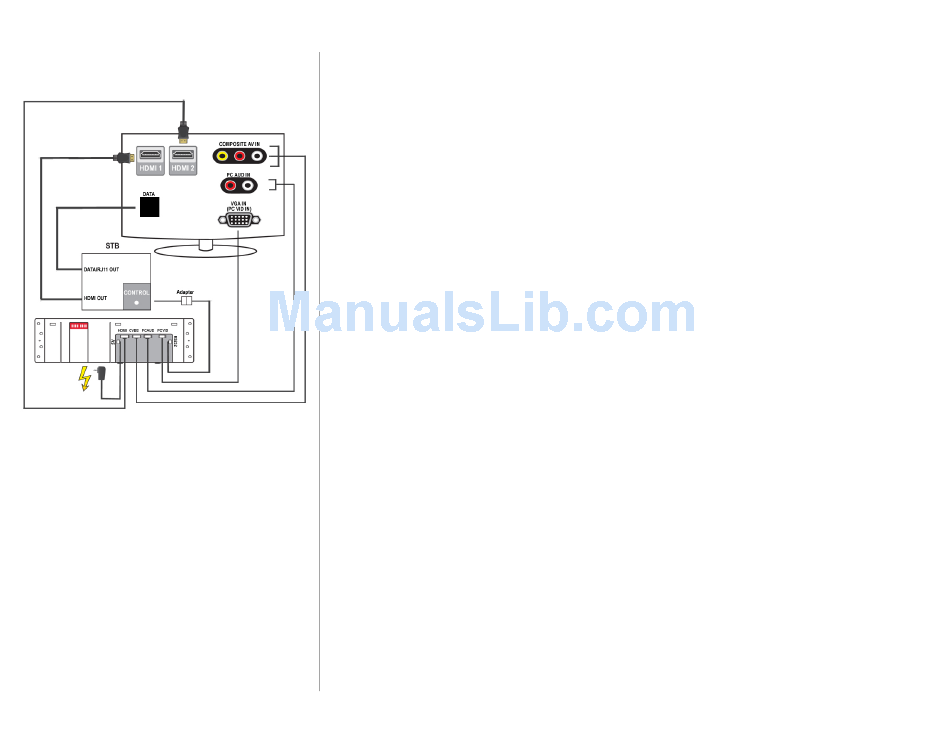

Figure 1: Cable connection diagram for
installing MediaHub Active with Hospitality TV
and Enseo STB.
14
Enseo Set Top Box (with ANY TV)
What You Will Need:
- TA-7630 or TA-7630/TA-7500L
MediaHub Active Connectivity Panel
Mini Connector - HDMI cable CAB-40543D5
Mini Connector - PC Audio cable CAB-40633D5
Mini Connector - PC Video cable CAB-40623D5
Mini Connector - CVBS cable (for composite AV and S-Video) CAB-40503D5A
Mini Connector - RS-232 serial cable CAB-40583D5
Mini Connector - SmartPort cable (only used for legacy models)
Mini Connector - Power Supply Cable (Note: MediaHub with Power/Data
Extender model requires TWO power supplies – one for media panel and one
for power panel)
- DB9-3.5mm Adapter CAB-4067D16
- Mini Connector - Serial for Enseo HD2000 (CAB-40583D5H, only used for HD2000
STB)
- Enseo STB and TV Remote Control
For HD3000 STB firmware v.2.12.04+ / HD2000 STB firmware v.2.10.29.17+
Special note: Enseo HD2000 installation requires the TeleAdapt CAB-40583D58
Control Cable
MediaHub Active DIP Mode 01: DWN-UP
MediaHub Active Firmware Version: EN0.2T4
Configure Enseo STB: Press <Channel Up>, <Right Arrow>, <Left Arrow>,
<MUTE> to enter set-up screen. Go to Control Options and AUX panel.
Set BAUD Rate to 9600.
See model-specific connections and TV configuration requirements according to the
TV make/model below.
Panasonic North America Series 20/12 + Enseo HD2000/3000
Configure TV: Go into HOTEL MODE (<MENU>, <G>, <Y>, <0>), set MODE=ON, TA
Control=EXTERNAL, BUTTON LOCK is OFF.
Philips North America, LG North America, Sharp North America +
Enseo HD2000/3000
No TV configuration needed.
