Neptronic TRO5404 Installation Instructions

Neptronic TRO5404 Installation Instructions

Advertisement

Quick Links

Technical Data

Outputs
Power supply
Power consumption
Set point range
Control accuracy
Proportional band
Electrical connection
Operating temperature
Storage temperature
Relative Humidity
Degree of protection of housing
Weight
Presentation
Dimensions
B
A
TRO5404-121108-ESA.docx
Feature:
Selectable analog output
Selectable Fahrenheit or Celsius scale
Manual Night Set Back override
Multi level lockable access menu
Lockable Set point
Selectable internal or external temperature sensor
Selectable proportional control band
2 Analog Cooling outputs (0-10VDC)
2 Analog Heating outputs (0-10VDC)
0 or 22 VDC, TPM, (Time proportional modulation) 250 mA max.
0.5 ºC to 4ºC [1 ºC to 8ºF] adjustable
Symbols on display
Cooling ON
A: Automatic
Heating ON
A: Automatic
Energy saving mode ON
ºC: Celsius scale
ºF: Fahrenheit scale
or
D
C
Room controller Thermostat
Specification & Installation instructions
Selectable external temperature sensor type
(3.3 KΩ or 10 KΩ | Type 3 or Type G)
TRO5404
22 to 26 VAC 50/60Hz
2 VA
10ºC to +35ºC [50ºF to 95ºF]
Temperature: +/-0.2ºC [0.4ºF]
2
0.8 mm
[18 AWG] minimum
0ºC to +50ºC [32ºF to +122ºF]
-30ºC to +50ºC [-22ºF to +122ºF]
5 to 95 % non condensing
IP 30 to EN 60529
85 g. [0.2 lb]
Dimension
Inches
A
B
C
D
TRO5404
Menu set-up Lock ON
Programming mode
Minimum/Maximum
set points
Metric (mm)
3.00
78
3.00
78
1.00
24
2.36
60
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRO5404 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Neptronic TRO5404

  • Page 1: Technical Data

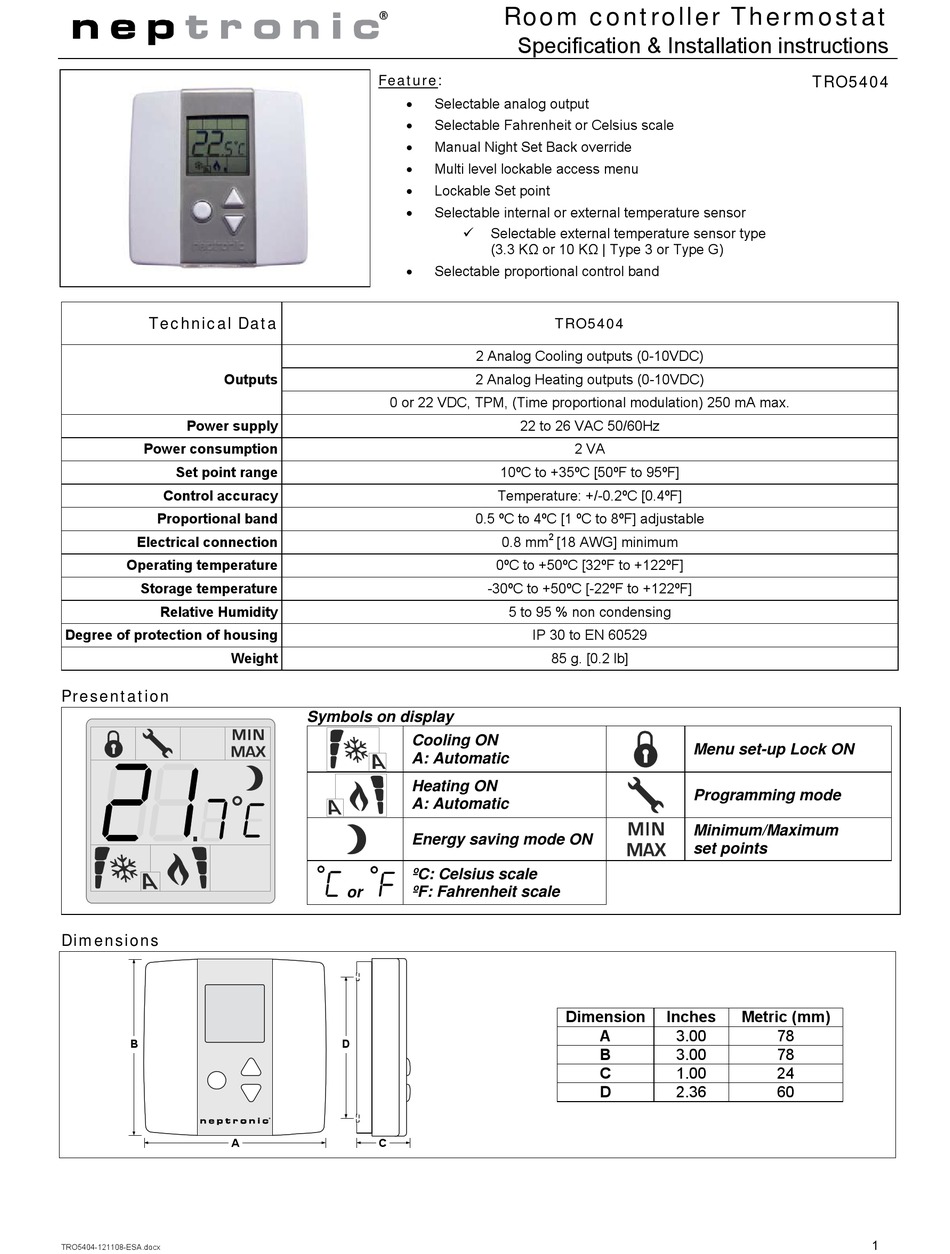

    Room controller Thermostat Specification & Installation instructions Feature: TRO5404  Selectable analog output  Selectable Fahrenheit or Celsius scale  Manual Night Set Back override  Multi level lockable access menu  Lockable Set point  Selectable internal or external temperature sensor ...
