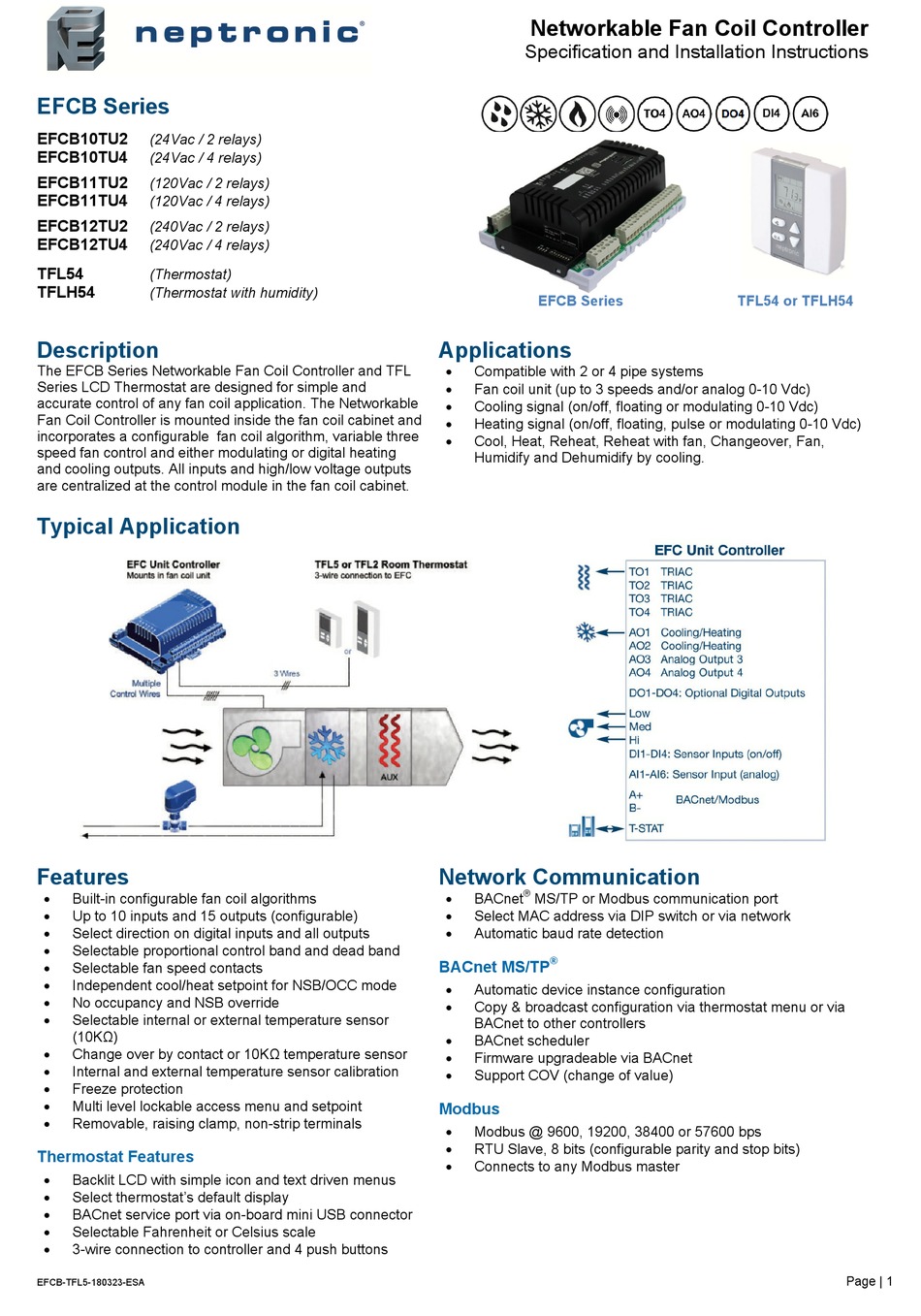

Neptronic EFCB10TU2 Specification And Installation Instructions

EFCB Series
EFCB10TU2
(24Vac / 2 relays)
EFCB10TU4
(24Vac / 4 relays)
EFCB11TU2
(120Vac / 2 relays)
EFCB11TU4
(120Vac / 4 relays)
EFCB12TU2
(240Vac / 2 relays)
EFCB12TU4
(240Vac / 4 relays)
TFL54
(Thermostat)
TFLH54
(Thermostat with humidity)
Description
The EFCB Series Networkable Fan Coil Controller and TFL
Series LCD Thermostat are designed for simple and
accurate control of any fan coil application. The Networkable
Fan Coil Controller is mounted inside the fan coil cabinet and
incorporates a configurable fan coil algorithm, variable three
speed fan control and either modulating or digital heating
and cooling outputs. All inputs and high/low voltage outputs
are centralized at the control module in the fan coil cabinet.

Typical Application

Features

Built-in configurable fan coil algorithms

Up to 10 inputs and 15 outputs (configurable)

Select direction on digital inputs and all outputs

Selectable proportional control band and dead band

Selectable fan speed contacts

Independent cool/heat setpoint for NSB/OCC mode

No occupancy and NSB override

Selectable internal or external temperature sensor
(10KΩ)

Change over by contact or 10KΩ temperature sensor

Internal and external temperature sensor calibration

Freeze protection

Multi level lockable access menu and setpoint

Removable, raising clamp, non-strip terminals
Thermostat Features

Backlit LCD with simple icon and text driven menus

Select thermostat's default display

BACnet service port via on-board mini USB connector

Selectable Fahrenheit or Celsius scale

3-wire connection to controller and 4 push buttons
EFCB-TFL5-180323-ESA
Networkable Fan Coil Controller
Specification and Installation Instructions
EFCB Series
Applications

Compatible with 2 or 4 pipe systems

Fan coil unit (up to 3 speeds and/or analog 0-10 Vdc)

Cooling signal (on/off, floating or modulating 0-10 Vdc)

Heating signal (on/off, floating, pulse or modulating 0-10 Vdc)

Cool, Heat, Reheat, Reheat with fan, Changeover, Fan,
Humidify and Dehumidify by cooling.

Network Communication

®

BACnet MS/TP or Modbus communication port

Select MAC address via DIP switch or via network

Automatic baud rate detection
®
BACnet MS/TP

Automatic device instance configuration

Copy & broadcast configuration via thermostat menu or via
BACnet to other controllers

BACnet scheduler

Firmware upgradeable via BACnet

Support COV (change of value)
Modbus

Modbus @ 9600, 19200, 38400 or 57600 bps

RTU Slave, 8 bits (configurable parity and stop bits)

Connects to any Modbus master
TFL54 or TFLH54
Page | 1
