Licensing/Usage; Interconnect - Sun Microsystems StorEdge S1 Array Manual

Server
Each SCSI−3 port on dual SCSI−3
LVD card (X2222A)

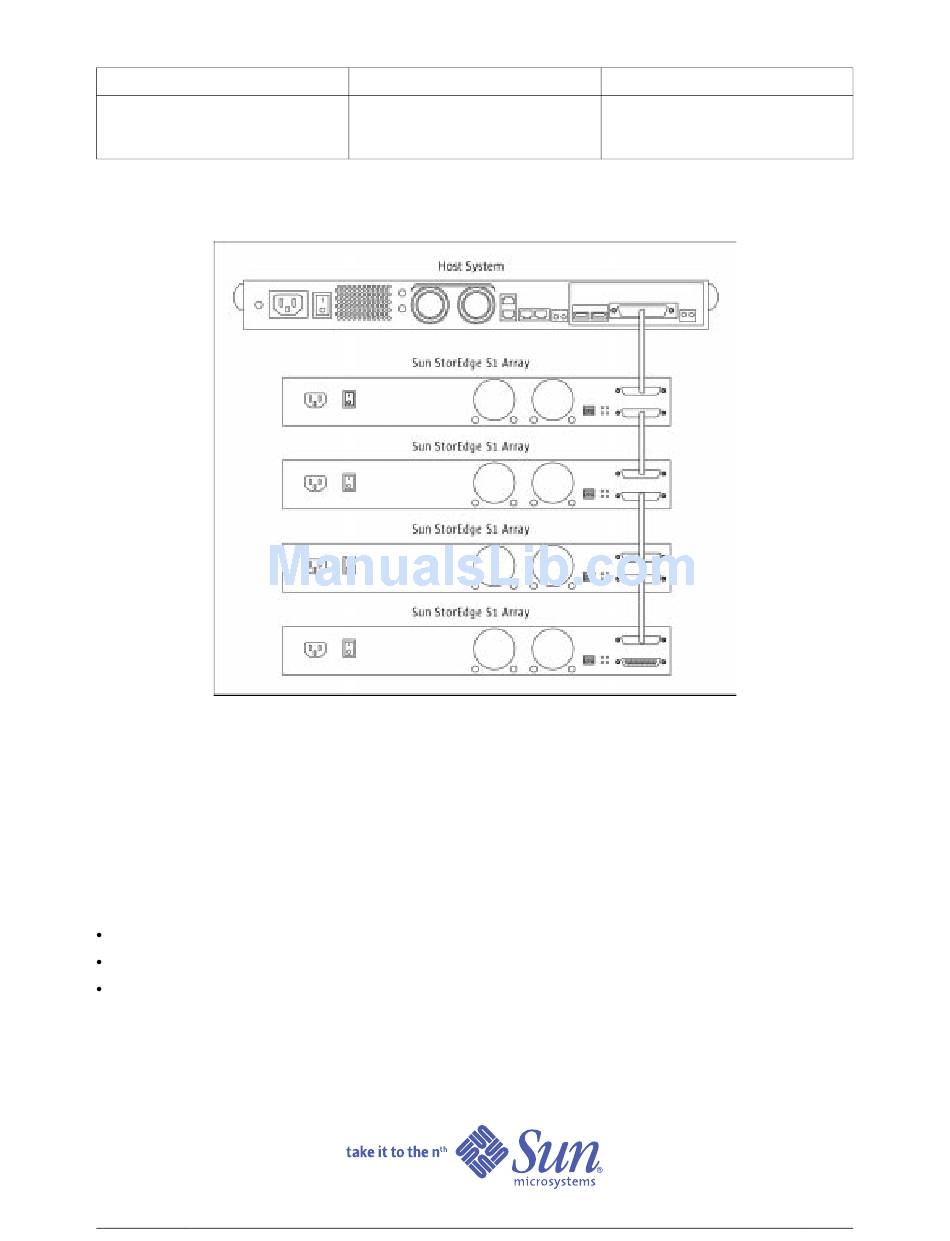

Figure 11 illustrates four Sun StorEdge S1 array units daisy chained to an Ultra3 SCSI LVD host system.
Refer to the Sun StorEdge S1 Array Installation and Maintenance Manual for detailed information.

Licensing/Usage

N/A

Interconnect

UltraSCSI single−ended
Ultra2 SCSI low voltage differential
Ultra3 SCSI low voltage differential
Sun StorEdge S1 Array
Just the Facts
Number
4
Figure 11. Ultra3 SCSI Host System
Cable Length
2.0 m
(use 0.5 to daisy chain the second
unit)
19
9/27/01
