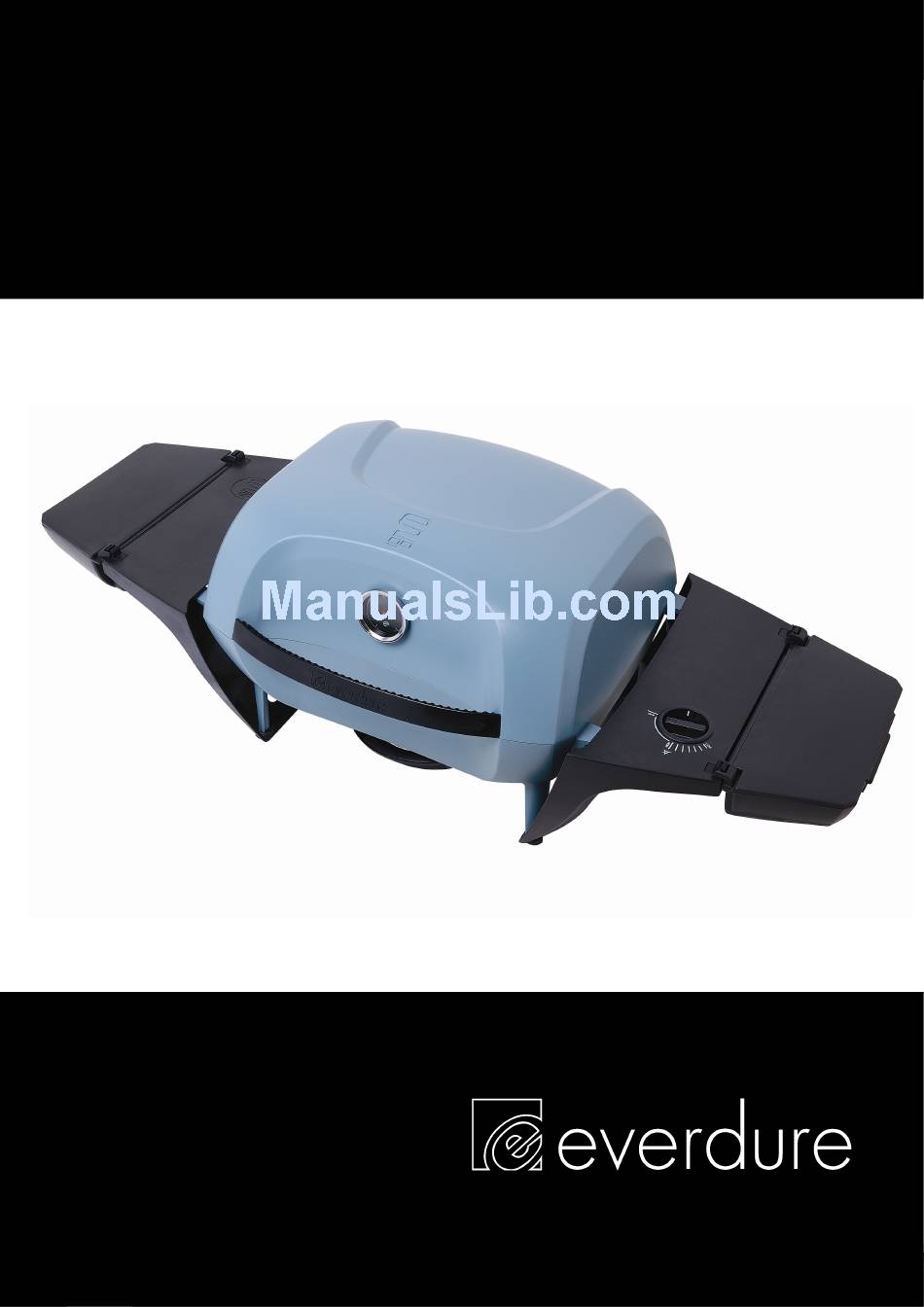

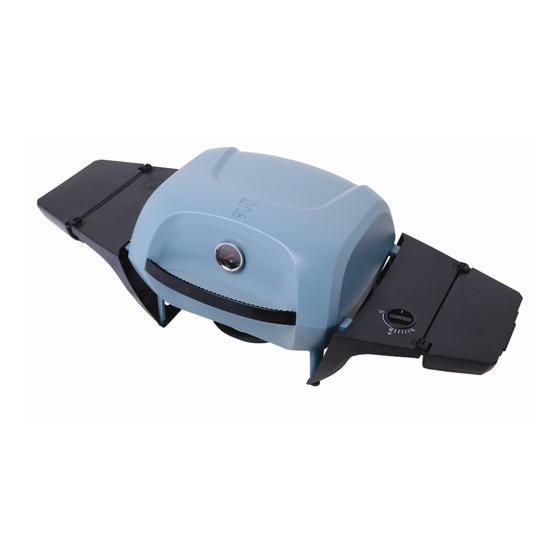

- Page 1 ASSEMBLY, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE E2GO PORTABLE GAS BARBECUES Models Included: E2GLPC-09B E2GLPC-09G THE EVOLUTION OF PORTABLE OUTDOOR COOKING...
- Page 2 THE EVOLUTION OF PORTABLE OUTDOOR COOKING...
-
Page 3: Table Of Contents
OPERATION AND MAINTENANCE INSTRUCTIONS FOR EVERDURE E2GO GAS BARBECUE RANGE E2GLPC-09B & E2GLPC-09G OUTDOOR PORTABLE BARBECUES CONTENTS SECTION PAGE NO. Important Safety Instructions Gas Appliance Details Gas Connections Outdoor Installation Guide Operating Instructions Lighting Procedure Cleaning & Storage Troubleshooting Barbecue Assembly... -
Page 4: Important Safety Instructions Gas
Do not use or store this appliance in areas of high salt content (a marine environment) or an area with caustic fumes or liquids (such as a domestic pool), as these chemicals can cause the appliance materials to deteriorate (and void the warranty). Regular cleaning and covering with an Everdure barbecue cover can help can help to reduce this. DO NOT... -
Page 5: Appliance Details
E2go barbecues can be converted to use natural gas ONLY with an e2go NG conversion kit. Fit the NG manifold (with valve), regulator and NG hose following the supplied instructions. Conversion of any barbecue from ULPG to NG (or vice versa) must be done by a licensed gas fitter/technician. Please contact Everdure for further information. -
Page 6: Outdoor Installation Guide
OUTDOOR INSTALLATION GUIDE This Appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. This appliance must not be used indoors. Do not use your barbecue in garages, porches, sheds or other enclosed areas. -
Page 7: Operating Instructions
When using an optional e2go Trolley Stand, take care that the barbecue is locked in position & the hose is not touching any hot surface. For more specific information (including set-up illustrations and diagrams) and up to date cooking instructions, please visit the Everdure web site at www.everdure.com. GAS TYPE AND CONSUMPTION The barbecues are designed to operate on Universal LPG only (Propane and/or butane gas) and NG Gas (using a conversion kit). -
Page 8: Lighting Procedure
LIGHTING THE BARBECUE USING THE BUILT IN IGNITION ON THE CONTROL KNOBS The Everdure e2go barbecue has a rotary ignition system built into the gas valve, accessed by using the control knob built into the right hand servery. To ignite the burner, push the control knob down and slowly rotate anti clockwise. -
Page 9: Troubleshooting
Also check the alignment of the sparker. If there is no spark, contact Everdure Service. Injector is blocked Clean injector with a toothbrush. Do not drill out or use wire. Do not remove injector. -
Page 10: Barbecue Assembly
BARBECUE ASSEMBLY The barbecue and hood comes pre-assembled in a single package, but a number of components need fitting to their correct position. Only a medium size Philips screwdriver is needed. For pictures of parts see the parts lists near the end of this booklet. UNPACKING THE UNIT Take the foam covered unit out of the carton, and place on a clean, flat surface. -
Page 11: Maintenance
Accessories such as a weatherproof cover and BBQ rotisserie are readily available items. Visit www.everdure.com for regular product updates. WARRANTY IMPORTANT Please keep your receipt, as this must be presented if making a claim under the terms of the Everdure warranty. www.everdure.com All Service and Assembly Enquiries:... -
Page 12: Parts List: Barbecue Assembly
PARTS LIST: E2GO BARBECUE ASSEMBLY PART NAME Hood Handle Hood Temperature Indicator Aluminium Hot Plate Ignition Pin Burner Hood Shaft & Pin Bracket Sets (A&B) Servery Servery Hinges Servery Handle Left Servery Handle Right Control Knob Control Knob Bezel Foot Assembly (2 parts) Fat Tray Support Foil Tray Fat Tray... - Page 13 OPTIONAL ACCESSORY: E2GO TROLLEY STAND The e2go trolley stand is a must have accessory to complete the full portability experience. The stand is an optional extra that functions as both a static stand and a mobile trolley for when you are on the go. Plus, it folds in 5 quick steps so it’s truly hassle free.
- Page 14 THE EVOLUTION OF PORTABLE OUTDOOR COOKING...
- Page 15 NOTES _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ THE EVOLUTION OF PORTABLE OUTDOOR COOKING...
- Page 16 A division of Shriro Australia Pty Ltd 23-27 Chaplin Drive Lane Cove NSW 2066 1300 766 066 www.everdure.com IM Ref: E2G13/2009/06 F O R O U T D O O R U S E O N L Y THE EVOLUTION OF PORTABLE OUTDOOR COOKING...
