Vision HAWK Smart Camera Connectors
Connector A – M12 12-Pin Plug – Power, I/O, and Serial

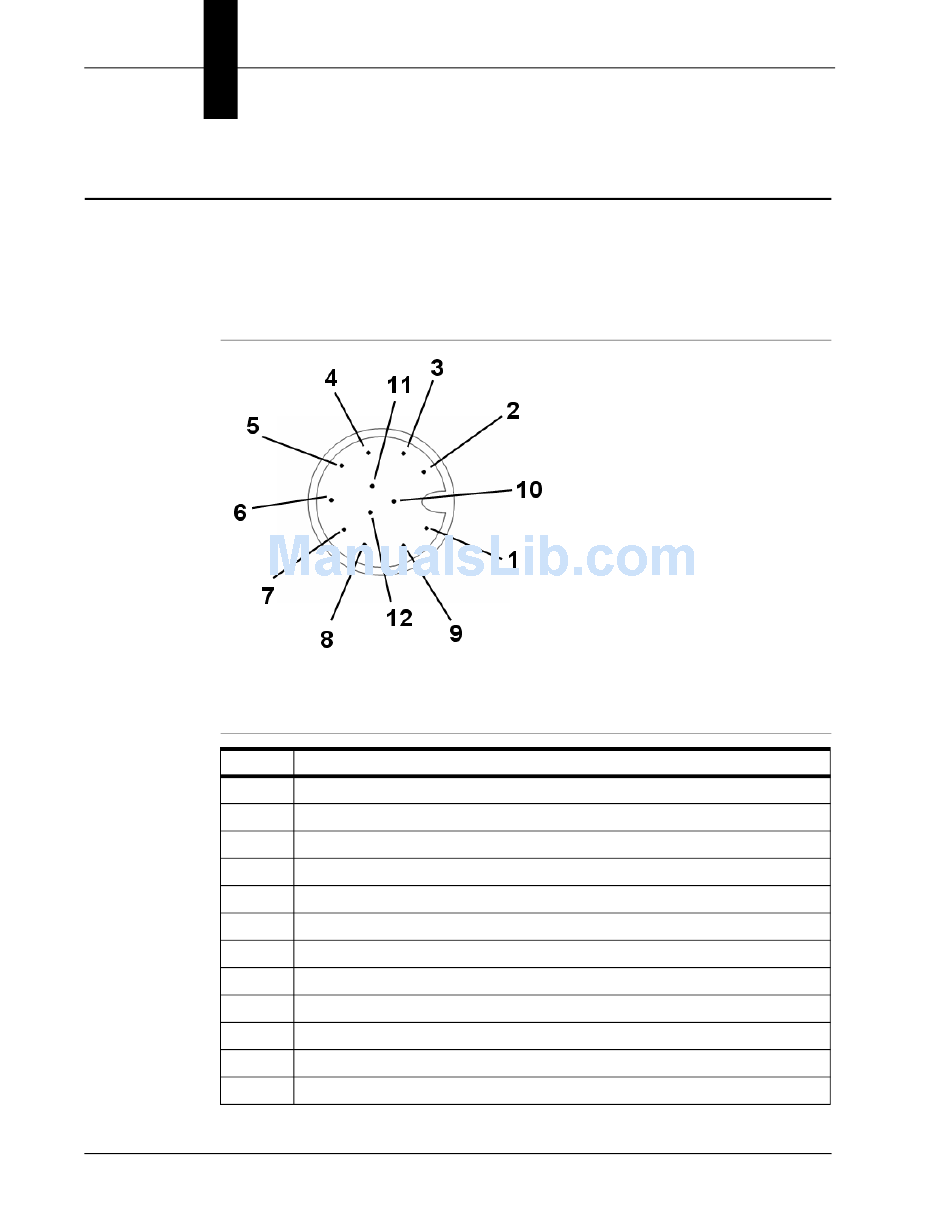

Figure A–1 shows the M12 12-pin plug at connector A.
FIGURE A–1.
Table A–1 describes the M12 12-pin plug signals.
TABLE A–1.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
A-2
Connector A – M12 12-Pin Plug
Connector A – M12 12-Pin Plug
Function
Trigger
Power
Default
Input 1
Output 1
Output 3
Ground
Input Common
Host RxD
Host TxD
Output 2
Output Common
