Chapter 2
System Components

Setting Up a Job in AutoVISION

AutoVISION is a critical component of the Vision HAWK's functionality.
Designed for use with the Vision HAWK, AutoVISION provides an intuitive
interface, step-by-step configuration, and a library of presets that allow
easy setup and deployment. For more complex vision applications, the
system can be upgraded from AutoVISION to Visionscape.

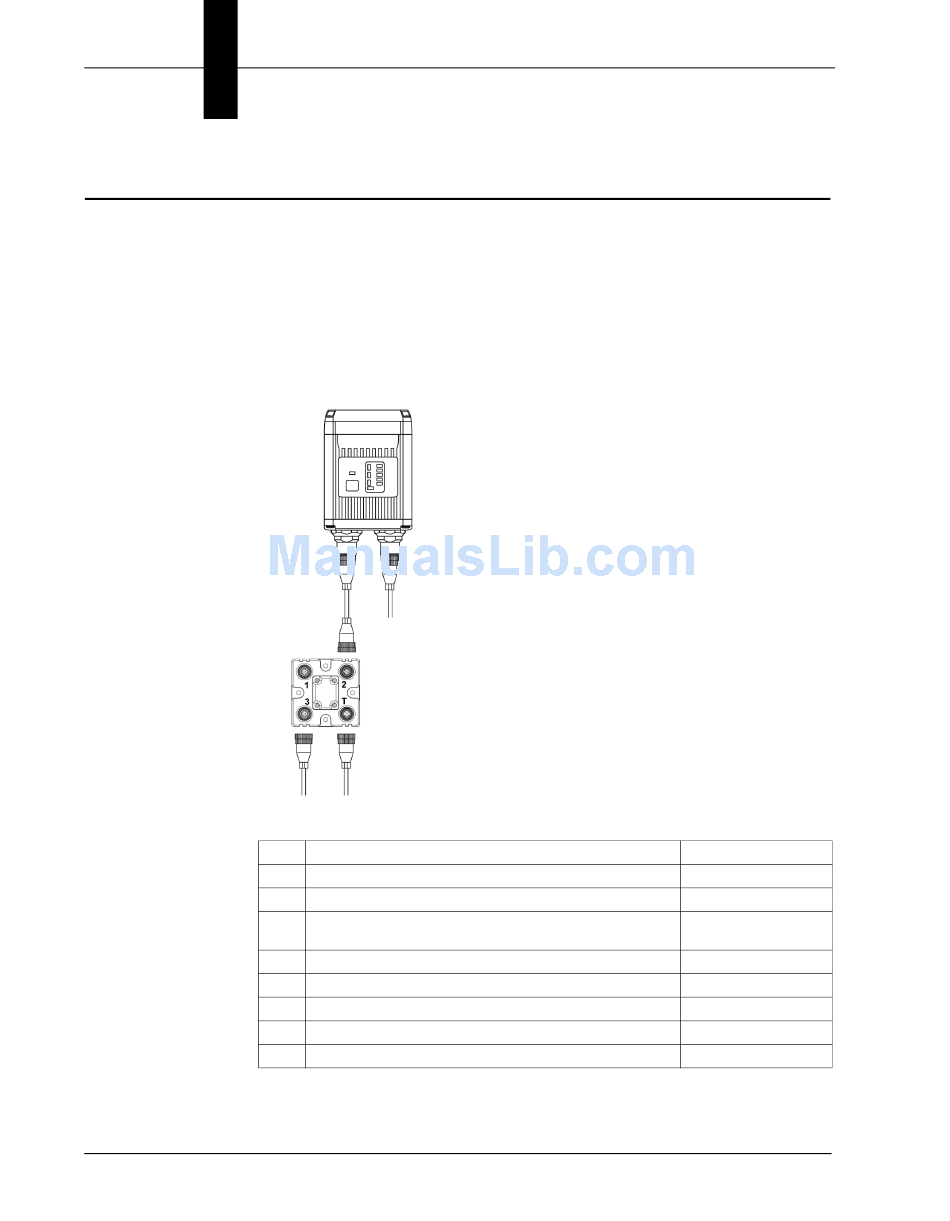

Configure Vision HAWK hardware.
1.
Note: Additional cables available in the Microscan Product Pricing Catalog.
2-22
1
3
7
2
6
8
Item Description
1 Vision HAWK Smart Camera
2 QX-1 Interface Device
3 Cordset, Common, M12 12-pin Plug to M12 12-pin
Socket, 1 m
4 Cordset, Host, Serial, M12 12-pin Plug to DB9, 1 m
5 Cordset, Host, Serial, M12 12-pin Socket to DB9, 1 m
6 Power Supply, M12 12-pin Socket, 1.3 m
7 Cordset, Host, Ethernet, M12 8-pin Plug to RJ45, 1 m
8 Trigger, M12 4-pin Plug, NPN, Dark On, 2 m
See Appendix A, Connector
Vision HAWK pin assignments.
Vision HAWK Smart Camera Guide
Pinouts, for
Part Number
GMV-6800-XXXXG
98-000103-02
61-000162-01
61-000152-01
61-000153-01
97-000012-01
61-000160-03
99-000020-02
