Chapter
3
Optics and Lighting

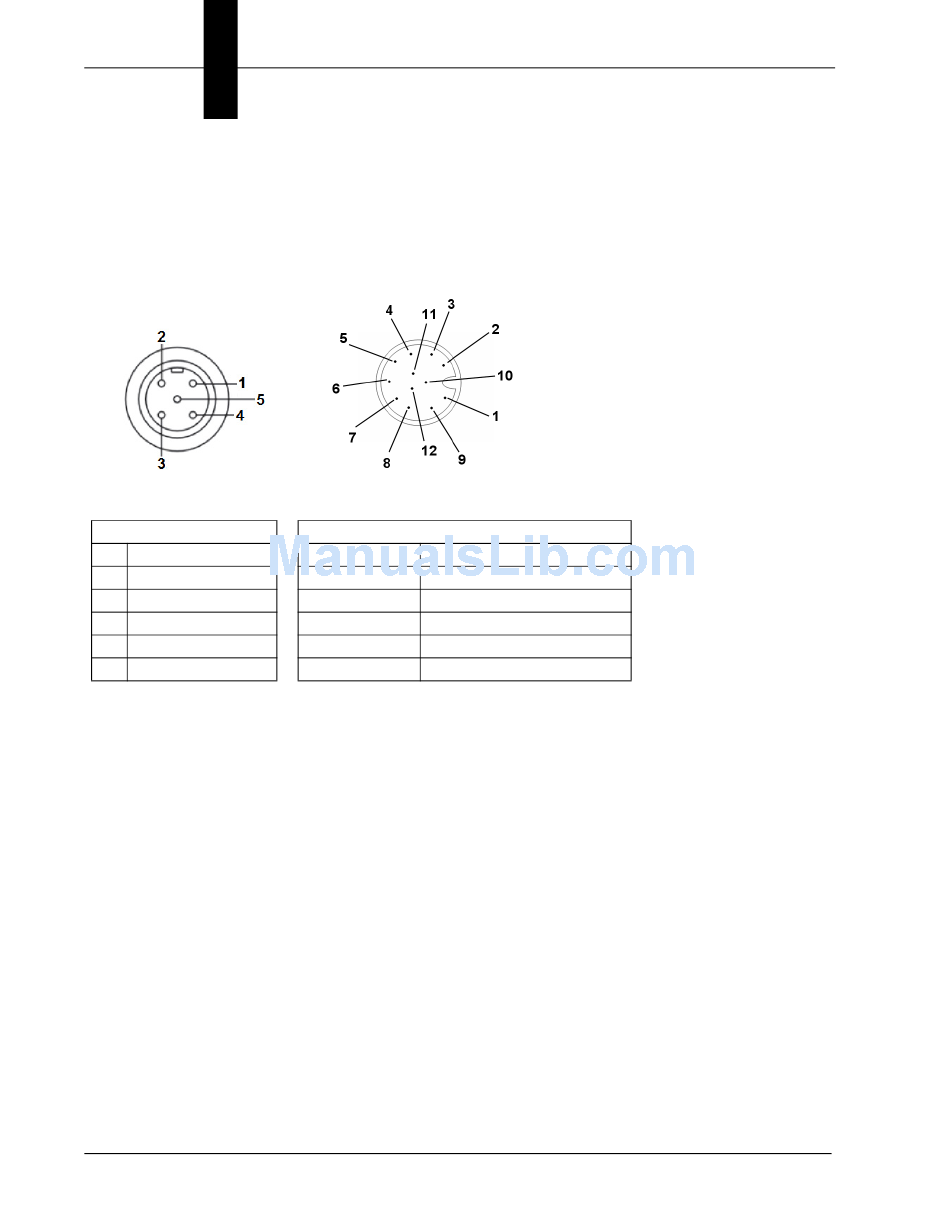

Wiring for ON/OFF Illumination (NPN Only)
ON/OFF allows the external illuminator to be enabled and disabled using the Vision
HAWK's I/O.
Warning: Contact between Pin 5 (gray wire) and any voltage source greater than 3.5VDC
will damage the illuminator.
Smart Series Illuminator
Connector
Smart Series Illuminator
Pin
Signal Name
1
+24VDC
2
Trigger –
3
DC Ground
4
Trigger +
5
Dim
3-10
Vision HAWK
Connector A
Vision HAWK (Connector A)
Pin
to
2
to
7 and 12
Ground and Output Common
to
7 and 12
Ground and Output Common
to
2
to
6
Signal Name
Power
Power
Output 3
Vision HAWK Smart Camera Guide
