Select your Vision HAWK in the AutoVISION Connect view, create a
2.
job, and adjust camera settings.

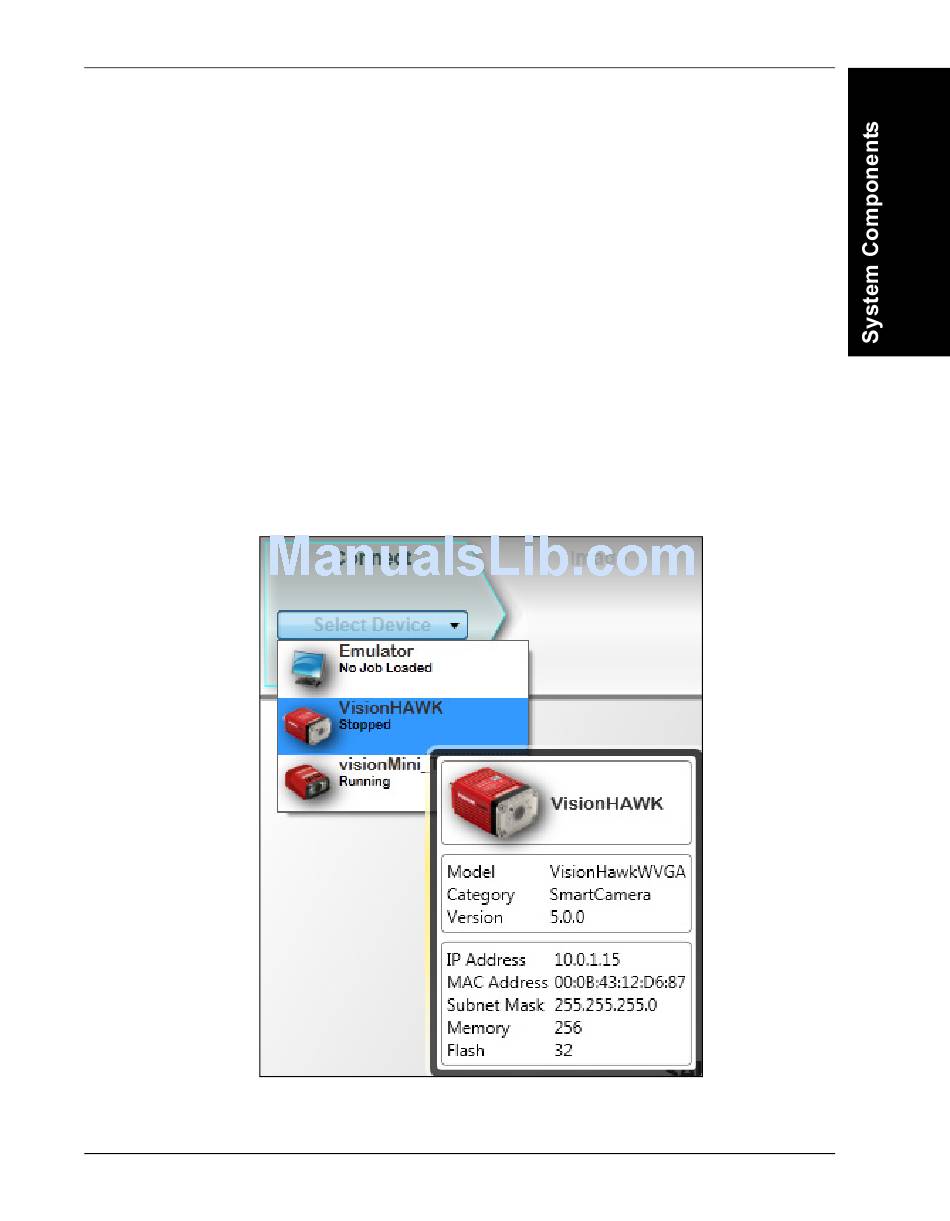

AutoVISION's Connect view allows you to select your device and
configure its settings, and to create a new job. The Select Device
dropdown menu provides a list of available devices. Hover the mouse
over a device to see its details.
Vision HAWK Smart Camera Guide
Mount the camera as required by the application.
Connect the Ethernet cable from "B" on the camera to the
network.
Connect the power supply to "3" on the QX-1.
Connect the photo sensor to "T" on the QX-1.
Connect the "Common" cable to "2" on the QX-1 and "A" on the
camera.
Plug in the power supply.
Setting Up a Job in AutoVISION
2
2-23
