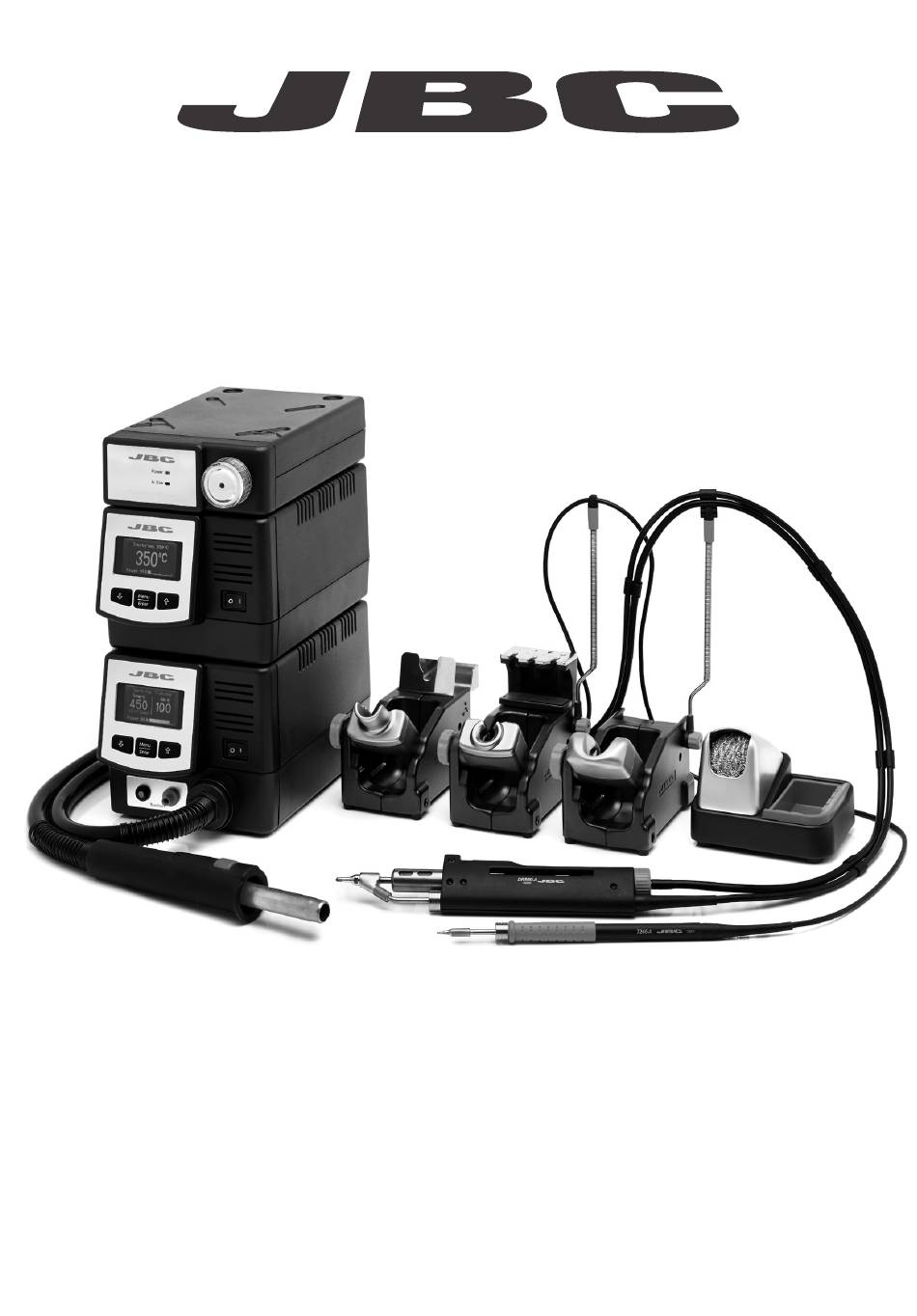

- Page 1 www.jbctools.com REWORK STATION...
- Page 2 RM / REWORK STATION DD-2B/1B/9B JTE-2B/1B/9B MS-A CONTROL UNIT CONTROL UNIT DESOLDERING PUMP CL9885 AD-SD DR-SD JT-SB TIPS CLEANING STAND STAND STAND STAND T245-A DR560-A T260-A C245903 C560013 HANDPIECE DESOLDERING SUCTION C245906 IRON HANDPIECE C560004 C560005...
- Page 3 JT-T2A (230V) or 0008752 T2050 ø20 JT-T1A (100V-120V) EXTRACTOR STAND T2250 ø40 HEATING SET TRIPOD Extractor E2184 E2064 E2052 Protector P2220 (32) P2230 (48) P2235 (24) P4000 (44) P4010 (60) JN2015 ø4 0932330 0930110 0901546 JN2012 ø6 SUCTION TUBE SUCTION CUPS STRAIGHT NEEDLES JN2020 ø8...
-
Page 4: Heat Management
REWORK STATION HEAT MANAGEMENT JBC stations intelligently manage the tool temperature: Work mode: When the tool is used, pre-set work temperature is 350º C. Sleep mode: When the tool is in the stand, the temperature goes down to 180º C ( depending of the configuration). - Page 5 INSTALLATION & PART NAMES DR560-A DESOLDERING IRON MS-A DESOLDERING PUMP DR-SD STAND AD-SD STAND T245-A DD-B HANDPIECE CONTROL UNIT Power cord socket Equipotential connection JTE-B CONTROL UNIT Power cord socket Equipotential connection Friendly display control 0964551 Pedal (Optional) Suction Tube for extractors and tripods Heating...
- Page 6 MS ELECTRIC DESOLDERING PUMP ELEMENTS Control unit “switch on” indicator Pump use indicator Desoldering air filter CHANGING PUMP FILTERS 0821830 External filter 0781046 Spare filter 0007717 O Ring 0004710 Filter cover 0005966 Spare filter...
-
Page 7: Replacing The Heating Element
REPLACING THE HEATING ELEMENT FOLLOW THIS PROCESS INVERTED TO RE-CONNECT THE HEATING ELEMENT This step has to be performed when the tool is stopped and the heating set is cold. 1. Untighten screw. 2. Separate the heating element from the heating set’s handle. 3. - Page 8 HOT AIR DESOLDERING PROCEDURE 1. Lock the extractor 2. Hot-air melts the solder 3. IC is removed automatically REMOVING THE NOZZLES T260 PICK & PLACE The suction cups can be adjusted to the needles in order to make the placement of SMD of different sizes on boards easier. These accessories allows the adjustment to weight and size of any type of component.
- Page 9 CL9885 TIP CLEANING STAND CL6210 CL6210 Brass wool BRASS WOOL CL6205 Inox wool S0354 SPONGE CL6220 Brushes CL0354 Sponge CL0236 WIPER OPTIONAL CL6205 INOX WOOL CL6220 BRUSHES TT-A TIP TINNER-CLEANER CL0236 TIP WIPER Wiper can be easily removed to clean it. TAPPING WIPPING...
-
Page 10: Settings Menu
DD CONTROL SCREEN Selected temp. 3 5 0 Tip temperature P o w e r 1 0 % % Instant power supplied to the tool Decrease & move down Access Menu & Increase & move up Confirm Selection SETTINGS MENU ORIGINAL PIN: 0105 M a i n m e n u Exit... -
Page 11: Profile Mode
JT CONTROL SCREEN PROFILE MODE MANUAL MODE Selected profile Current temperature Time to stop 45 seconds P r o f i l e 8 º T e m p º T e m p º A i r % Current Graph of selected temp. - Page 12 - Output Peak Power: 150W - Safety transformer, mains separator and double isolation. - DD-2B 230V 50/60Hz. Input fuse: 2A. Output: 23,5V. - DD-1B 120V 50/60Hz. Input fuse: 4A. Output: 23,5V. - DD-9B 100V 50/60Hz. Input fuse: 4A. Output: 23,5V.
