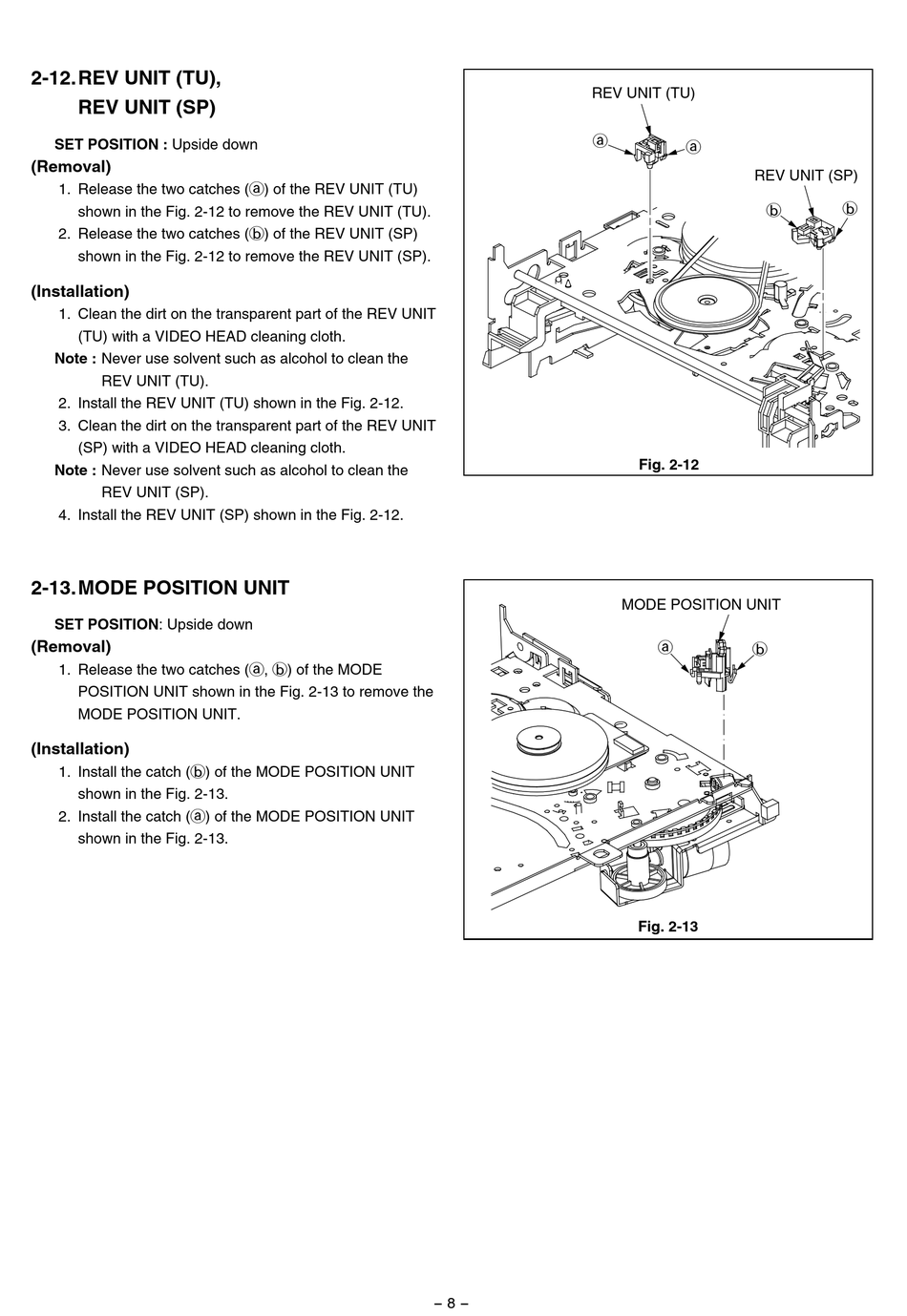

2-12.REV UNIT (TU),

REV UNIT (SP)

SET POSITION : Upside down
(Removal)
1. Release the two catches (a) of the REV UNIT (TU)
shown in the Fig. 2-12 to remove the REV UNIT (TU).
2. Release the two catches (b) of the REV UNIT (SP)
shown in the Fig. 2-12 to remove the REV UNIT (SP).
(Installation)
1. Clean the dirt on the transparent part of the REV UNIT
(TU) with a VIDEO HEAD cleaning cloth.
Note : Never use solvent such as alcohol to clean the
REV UNIT (TU).
2. Install the REV UNIT (TU) shown in the Fig. 2-12.
3. Clean the dirt on the transparent part of the REV UNIT
(SP) with a VIDEO HEAD cleaning cloth.
Note : Never use solvent such as alcohol to clean the
REV UNIT (SP).
4. Install the REV UNIT (SP) shown in the Fig. 2-12.

2-13.MODE POSITION UNIT

SET POSITION: Upside down
(Removal)
1. Release the two catches (a, b) of the MODE
POSITION UNIT shown in the Fig. 2-13 to remove the
MODE POSITION UNIT.
(Installation)
1. Install the catch (b) of the MODE POSITION UNIT
shown in the Fig. 2-13.
2. Install the catch (a) of the MODE POSITION UNIT
shown in the Fig. 2-13.
REV UNIT (TU)
a
- 8 -
a
REV UNIT (SP)
b
Fig. 2-12
MODE POSITION UNIT
a
b
Fig. 2-13
b
