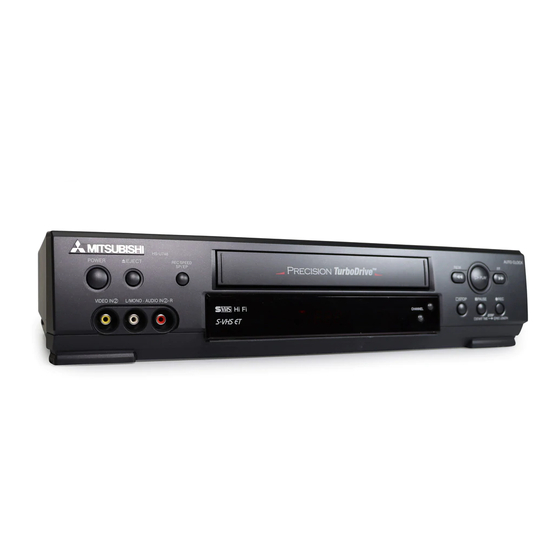

Mitsubishi HS-U748 Service Manual

Hide thumbs Also See for HS-U748:
Table of Contents

Advertisement

Quick Links

MITSUBISHI
Tape Format
: S-VHS/VHS 1/2" high-density
Power Source
: 120 V AC ; 60 Hz
Power Consumption
: Approx. 21 W (standby 2.9 W)
Video Signal System
: EIA standard ; NTSC color
Video Recording System
: S-VHS standard
Luminance
: Frequency modulation recording
Color Signal
: Low frequency conversion
Hi-Fi Audio
: VHS standard
Recording System
Linear Audio Track
: 1 track
Tape Speed
: 1-5/16 i.p.s (standard play)
Maximum Recording
: 120 min. with T-120 video
Heads: Video
: 4 rotary heads
Hi-Fi Audio
: 2 rotary heads
Audio/Control
: 1 stationary head
Erase
: 1 full track head
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
9351 Jeronimo Ave. Irvine, California 92618 U.S.A.
Copyright C 2002 Mitsubishi Digital Electronics America, Inc. All Rights Reserved.
Only cassettes marked S-VHS or VHS can be used with this video cassette recorder.
SPECIFICATIONS
video cassette tape
sub-carrier phase shift recording
Azimuth helical scanning system
7/16 i.p.s (extended play)
cassette (SP mode)
360 min. with T-120 video
cassette (EP mode)
VIDEO CASSETTE RECORDER
Video Input
Audio Input
Video Output
Audio Output
Tuner
VHF
UHF
CATV
Operating Temperature
Relative Humidity
RF Channel Output
Weight
Dimensions
Timer Program Capacity
Deck
• Weight and dimensions shown are approximate.
• Design and specifications are subject to change without notice.
MODEL
HS-U748
: 0.5 to 2.0 V(p-p), 75 Ω
unbalanced RCA pin Jack
: 346 mV(rms), 47 kΩ
unbalanced RCA pin Jack
: 1.0 V(p-p), 75 Ω unbalanced
RCA pin Jack
: 346 mV(rms), 1 kΩ unbalanced
RCA pin Jack
: 54 to 88 MHz, 174 to 216 MHz
: 470 to 806 MHz
: 54 to 88 MHz, 90 to 804 MHz
: 41 °F to 104 °F
: 30 % to 80 %
: Channel 3 or 4 switchable
: Approx. 8.0 lbs (3.6 kg)
: 16.7"(W) × 3.7"(H) × 11.9"(D)
: 1 month programmable
/ 8 programs
: α Deck
2002
