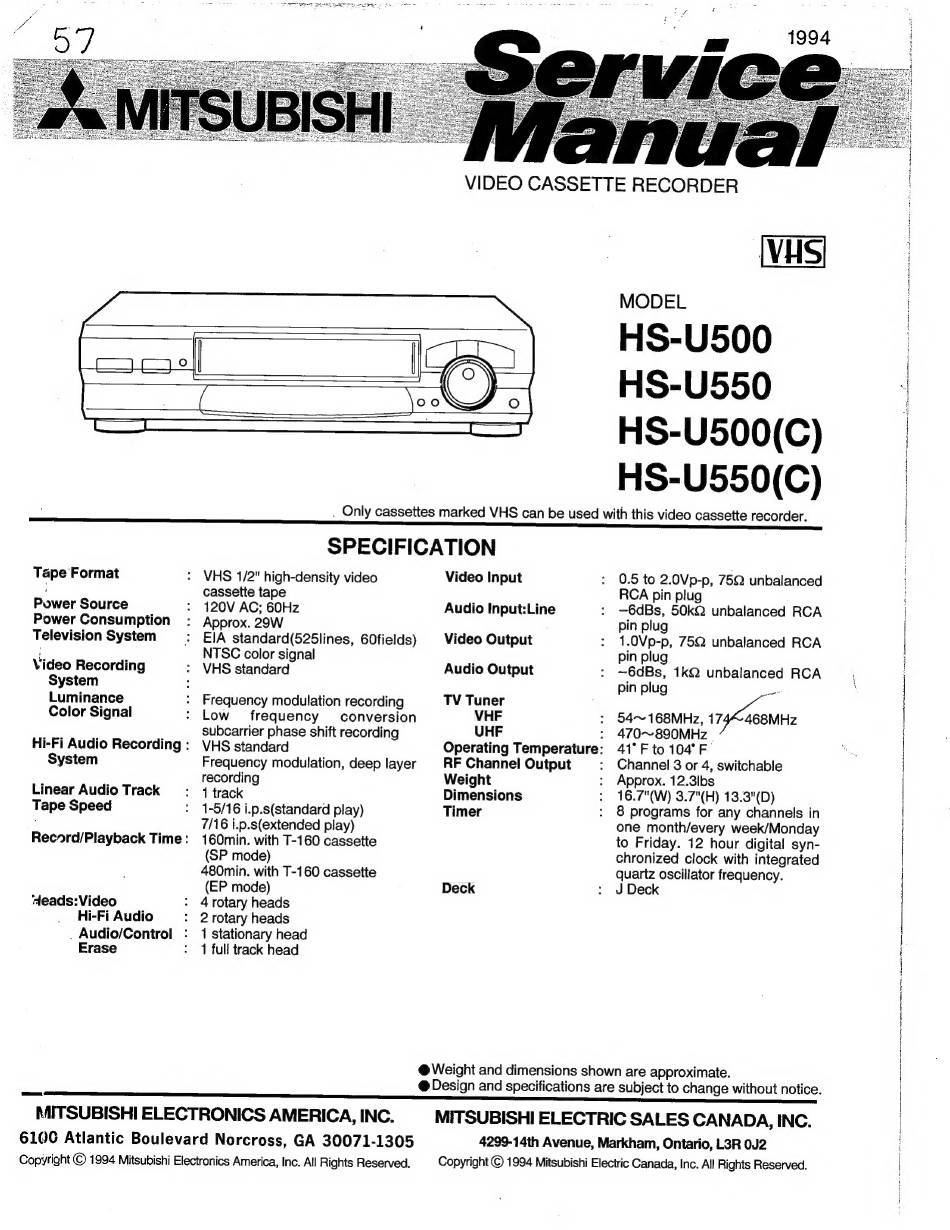

Mitsubishi HS-U500 Service Manual

[VHS
MODEL
HS-U500
HS-U550
HS-U500(C)
HS-U550(C)
Tape Format
Power Source
Power Consumption
Television System
Video Recording
System
Luminance
Color Signal
Hi-Fi Audio Recording :
System
Linear Audio Track
Tape Speed
Record/Playback Time :
"leads: Video
Hi-Fi Audio
. Audio/Control :
Erase
SPECIFICATION
: VHS 1/2" high-density video
cassette tape
120V AC; 60Hz
: Approx. 29W
EIA standard(525lines, 60fields)
NTSC color signal
: VHS standard
Frequency modulation recording
Low frequency conversion
subcarrier phase shift recording
VHS standard
Frequency modulation, deep layer
recording
1 track
1-5/16 i.p.s(standard play)
7/16 i.p.s(extended play)
160min. with T-160 cassette
(SP mode)
480min. with T-160 cassette
(EP mode)
: 4rotary heads
: 2 rotary heads
1 stationary head
1 full track head
Video Input
Audio Input:Line
Video Output
Audio Output
TV Tuner
VHF
UHF
Operating Temperature:
RF Channel Output
Weight
Dimensions
Timer
Deck
0.5 to 2.0Vp-p, 750 ипраїапсеа
RCA pin plug
—6dBs, 50kQ unbalanced ВСА
pin plug
1.0Vp-p, 750 unbalanced RCA
pin plug
—6dBs, 1КО unbalanced ВСА
pin plug EN
54~168MHz, 74 ette
470--890МН2
41° F to 104Ε
Channel 3 or 4, switchable
Approx. 12.3lbs
16.7"(W) 3.7"(Н) 13.3"(D)
8 programs for any channels in
one month/every week/Monday
to Friday. 12 hour digital syn-
chronized clock with integrated
quartz oscillator frequency.
J Deck
