(2) Original conveying section

The original conveying section consists of the parts shown in figure. A conveyed original is scanned by the
optical section (CCD) on the main machine when it passes through the slit glass of main machine.
5
1. DP top cover
2. DP registration roller
3. DP registration pulley
4. Conveying roller
5. Conveying pulley
6. Eject roller
7. Eject pulley
Service Manual
1
3
9
4
2
10 13

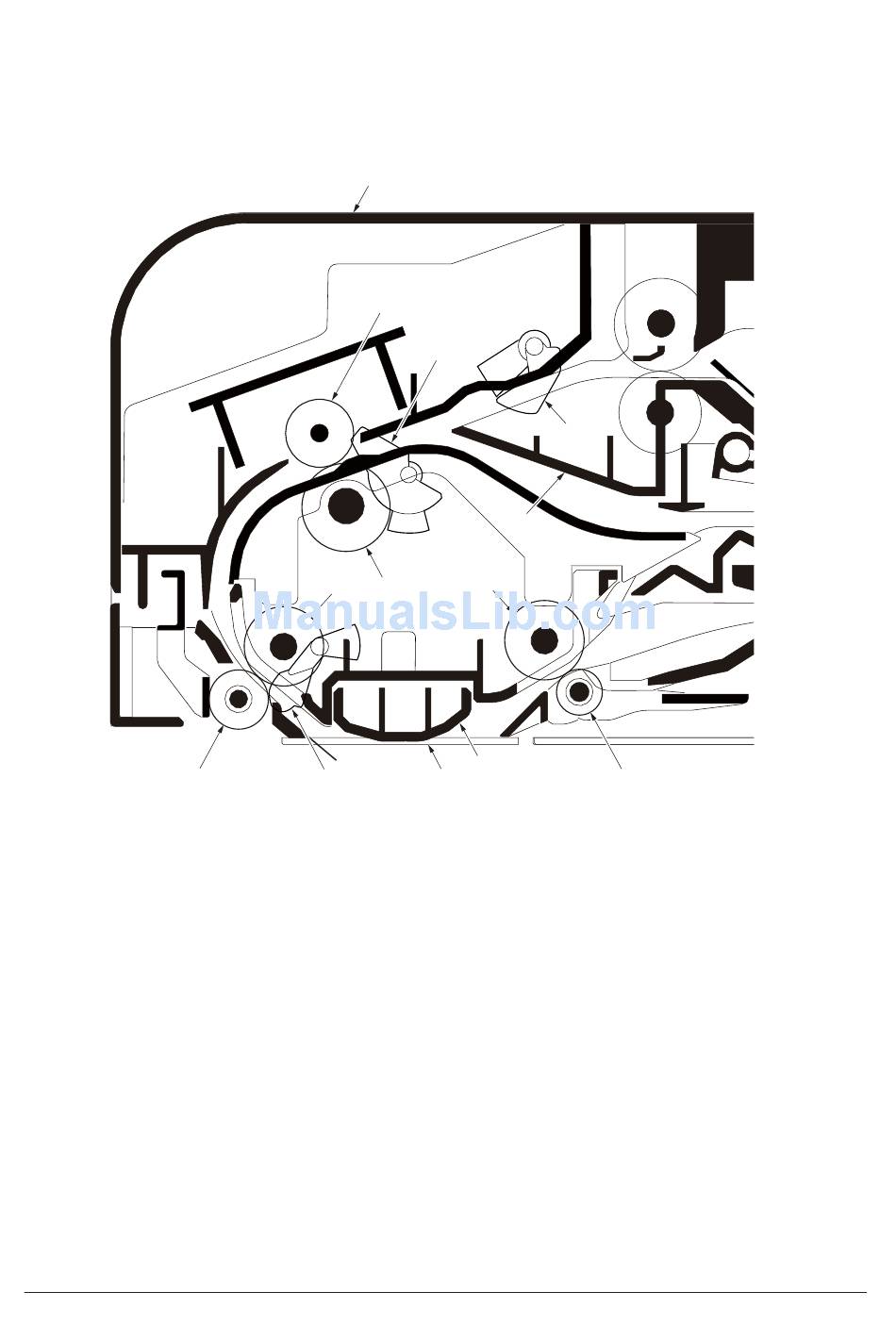

Figure 2-1-28 Original conveying section
2-1-24
8
11
6
12
7
8. Actuator (DP paper feed sensor)
9. Actuator (DP registration sensor)
10. Actuator (DP timing sensor)
11. Switchback guide
12. Reading guide
13. Slit glass
