2-1-8 Duplex conveying section

The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.
1. Right cover 1
2. Duplex feed roller A
3. Duplex feed pulley A
4. Duplex feed roller B
5. Duplex feed pulley B
Service Manual

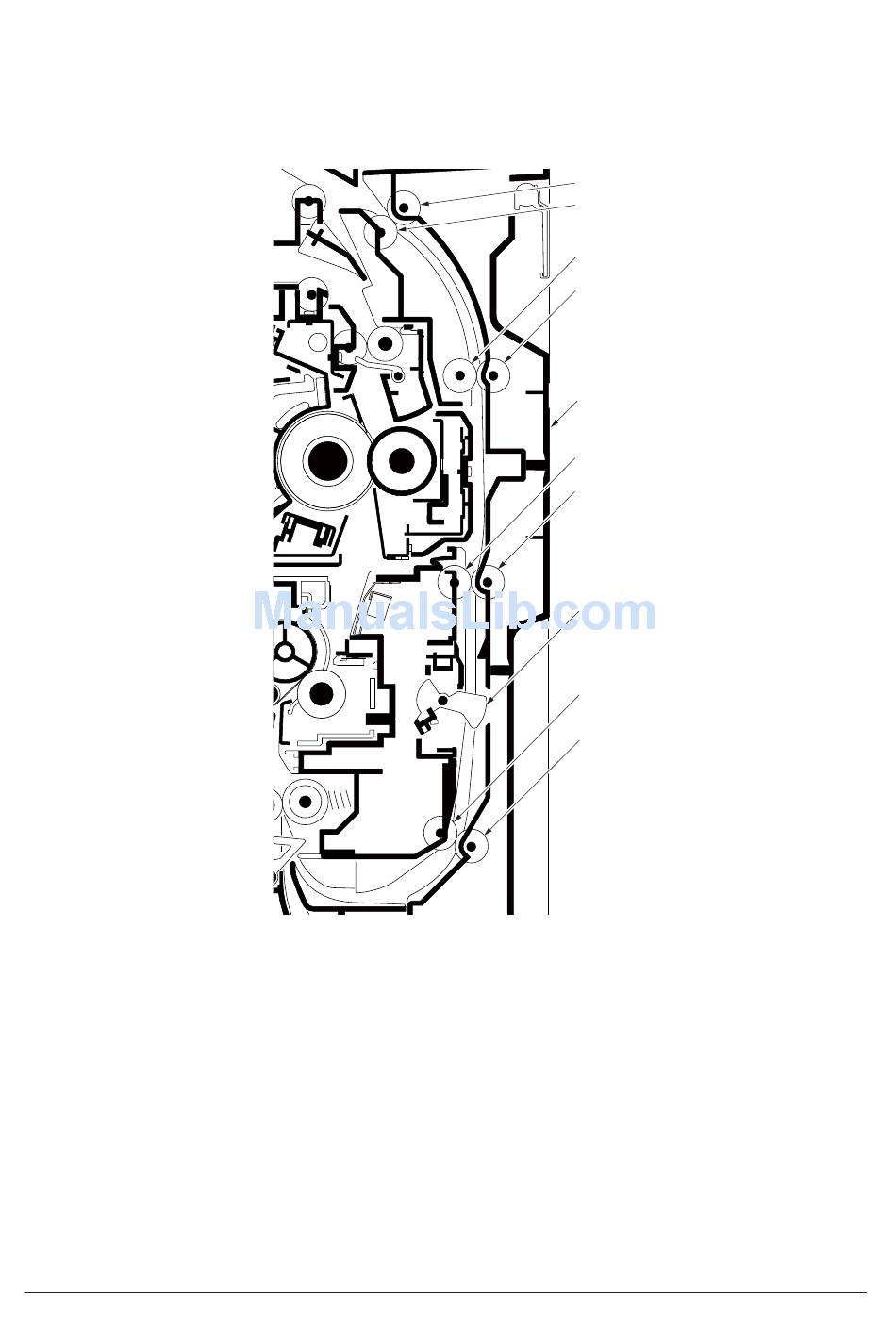

Figure 2-1-24 Duplex conveying section
2-1-20
2
3
4
5
1
6
7
10
8
9
6. Duplex feed roller C
7. Duplex feed pulley C
8. Duplex feed roller D
9. Duplex feed pulley D
10. Actuater(duplex sensor)
2KZ/2K0
Y113010-4
