2
Hardware Installation

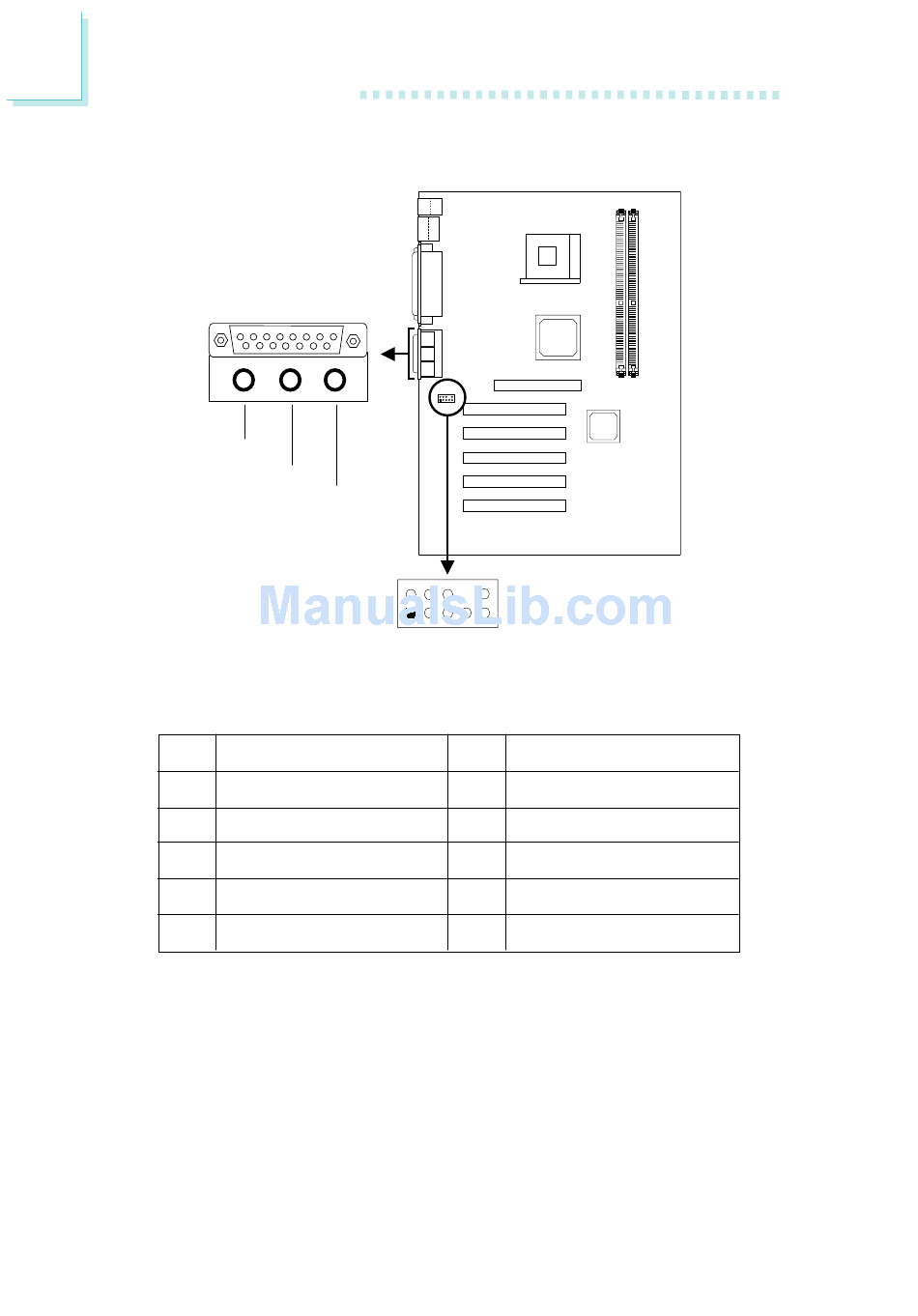

2.6.7 Audio Jacks
Pin
1
3
5
7
9
30
Line-out
Line-in
Mic-in
Front Audio (J21)
Function
Mic+
Mic Power
AuD_R_Out
N. C .
AuD_L_Out
2
10
9
1
2
10
1
9
Front audio
(J21)
Pin
Function
2
Ground
4
AuD_Vcc (Avcc)
6
AuD_R_Return (GND)
8
Key
10
AuD_L_Return (GND)
