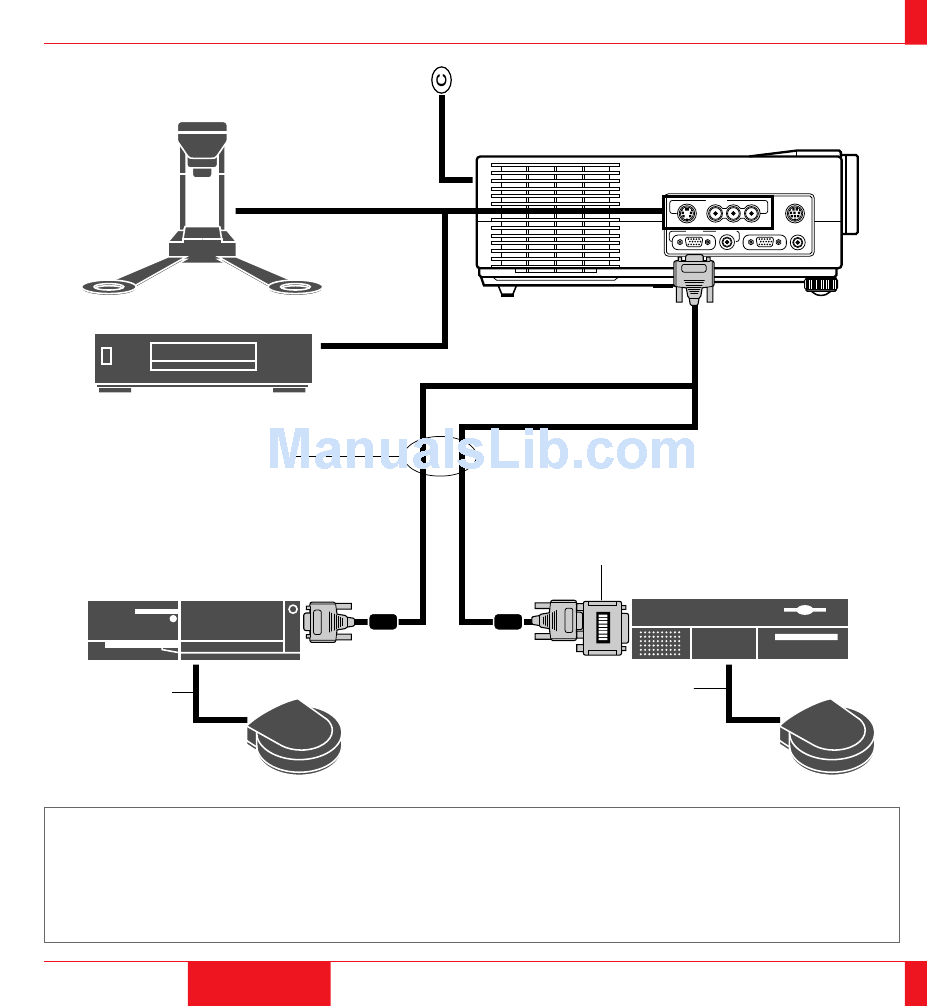

Wiring Diagram
Document Camera
VCR or Laser Disk Player
Signal cable (supplied)
To mini D-Sub 15-pin connector
on the Projector.
IBM VGA or Compatibles
PS/2 mouse adapter
(supplied)
Remote Control Guideline
1. Plug the serial cable with the remote mouse receiver into your computer's mouse port and restart your computer to gain remote mouse
control.
2. When using the remote control's built-in infrared mouse on a laptop computer, the laptop's mouse, trackball or trackpad will be disabled.
Disconnect the infrared receiver and restart your computer to regain trackball or trackpad mouse control.
3. If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management
software. If you accidentally hit the OFF button on the remote control, wait one full minute and then press the ON button to resume.
INSTALLATION
To AC power output
To video, S-video,
and audio inputs on
the projector.
Remote Mouse Receiver
VIDEO IN
VIDEO
L/MONO · AUDIO · R
S-VIDEO
RGB IN
AUDIO IN
RGB OUT
Monitor adapter for Macintosh
(supplied)
Macintosh or Compatibles
Mac ADB adapter
(supplied)
Remote Mouse Receiver
37
PC CONTROL
AUDIO OUT
(Desk top type)
38
