Terminal Panel Features - NEC MultiSync LT 80 User Manual

Terminal Panel Features

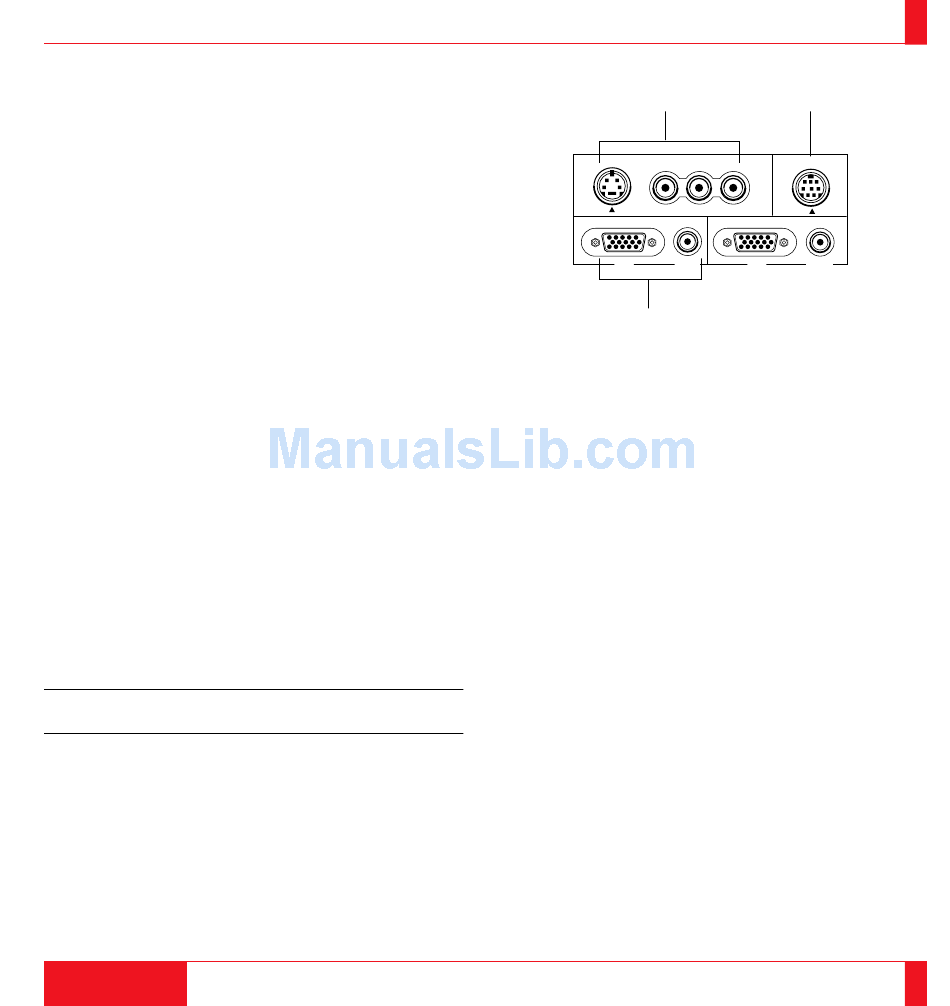

This panel is located in the side and is where you connect your cables.
1 Video Input
Connect a VCR, laser disk player, or document camera here to
project video.
Left Channel/Mono Audio Input Jack
This is your left channel audio input for stereo sound coming from
video equipment or audio system. This also serves as your mon-
aural audio input.
Right Channel Audio Input Jack
This is your right channel audio input for stereo sound.
S-Video Input
Here is where you connect S-Video input from an external source
like a VCR.
2 PC Control Port
Use this port to connect your PC to control the MultiSync LT80
Projector. This enables you to use your PC and serial communica-
tion protcol to control the projector. If you are writing your own
program, command reference are on pages 83 to 86.
3 RGB Input Connector (Mini D-Sub 15 pin)
Connect your PC or other RGB equipment such as IBM or com-
patible computers. Use the signal cable that's supplied to connect
to a PC.
RGB Audio Input Mini Jack
This is where you connect RGB audio output from a computer or
another RGB source.
NOTE: S-Video provides more vivid color and higher resolution than
the traditional composite video format.
