D-Sub Pin Assignments
PC 15-Pin mini D-Sub
Pin No.
Signal to be connected
1
Red
2
Green
3
Blue
4
GND
5
GND
6
Red GND
7
Green GND
8
Blue GND
9
No Connection
10
Digital GND
11
GND
12
No Connection
13
Horizontal Sync
14
Vertical Sync
15
No Connection

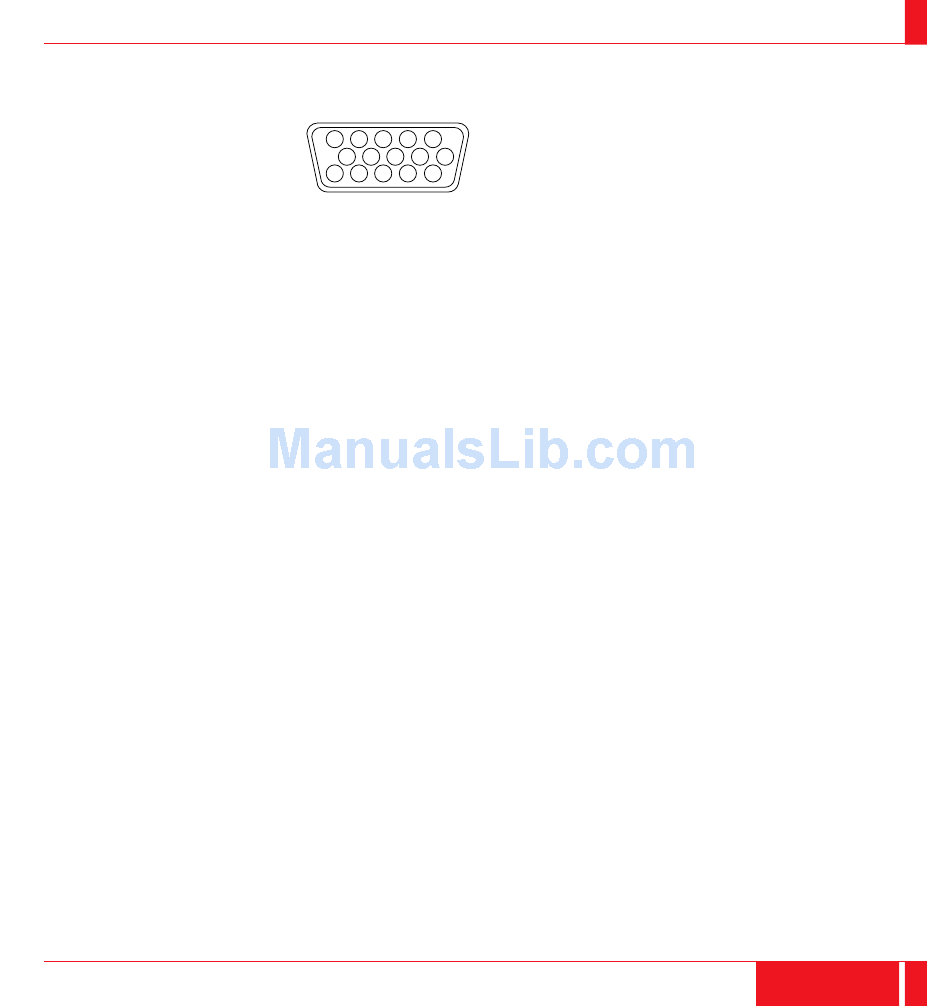

PC 15-Pin mini D-Sub
5
4
3
2
1
9
6
10
8
7
15
14
13
12
11
79
SPECIFICATIONS
80
