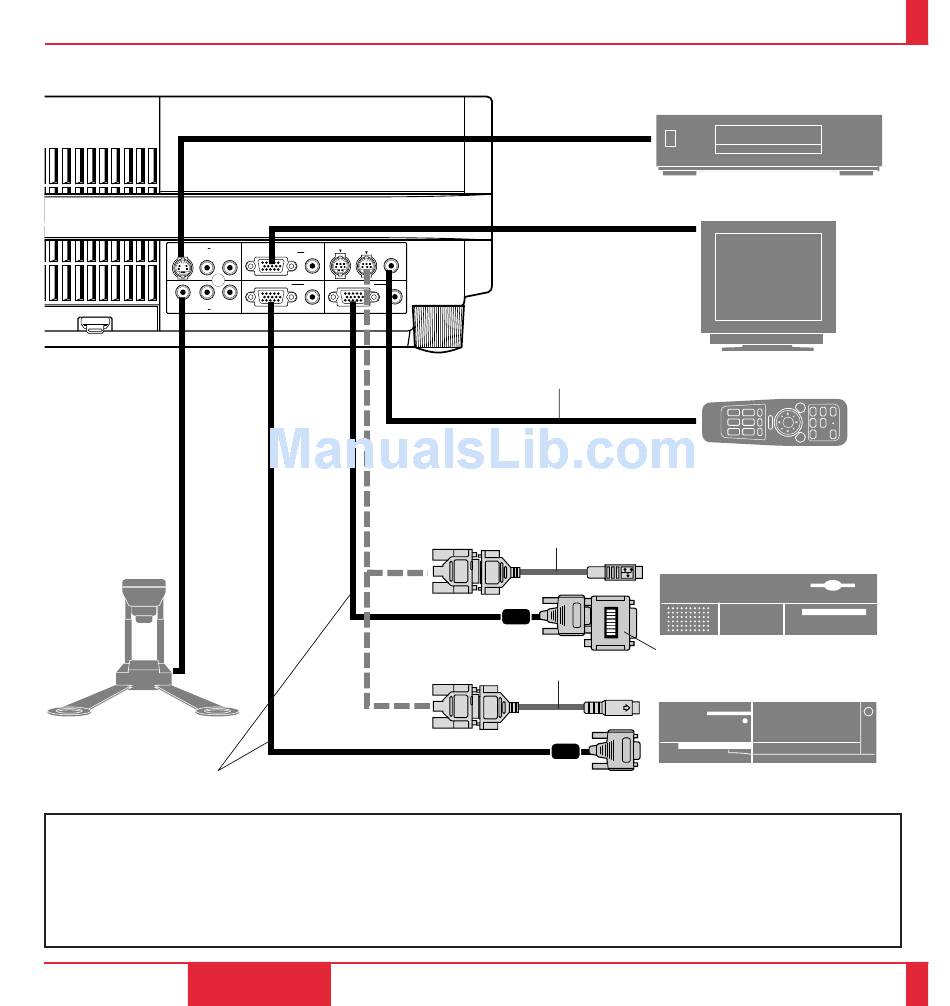

Wiring Diagram
S– VI D EO
I NP UT
A UDI O
L /M ONO
L /M ONO
VI DEO
INP UT
A UDI O
Document Camera
Signal cable (supplied)
To mini D-Sub 15-pin connector on the LCD Projector.
Remote Control Guideline
1. Plug the serial cable with the mouse output port of the projector into your computer's mouse port and restart your computer to gain remote
mouse control.
2. When using the remote control's built-in infrared mouse on a laptop computer, the laptop's mouse, trackball or trackpad will be disabled.
Disconnect the serial cable from the mouse output port and restart your computer to regain trackball or trackpad mouse control.
3. If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management
software.
4. If you accidentally hit the OFF button on the remote control, wait one full minute and then press the ON button to resume.
INSTALLATION
PC CONTROL MOUSE OUTPUT
REMOTE
CONTROL
RGB MONIT OR OUTP UT
AUDIO
INPUT
R
RGB
I NP UT
1
AUDIO
RGB
I NP UT
2
AUDIO
R
To video, S-video, and
VCR, DVD Player or LaserDisc Player
audio inputs on the LCD
Projector.
Remote cable
Mouse adapter (For Macintosh)
Macintosh or Compatibles (Desk top type)
Pin adapter for Macintosh (supplied)
Mouse adapter (For IBM PS/2)
IBM VGA or Compatibles
Monitor
45
46
