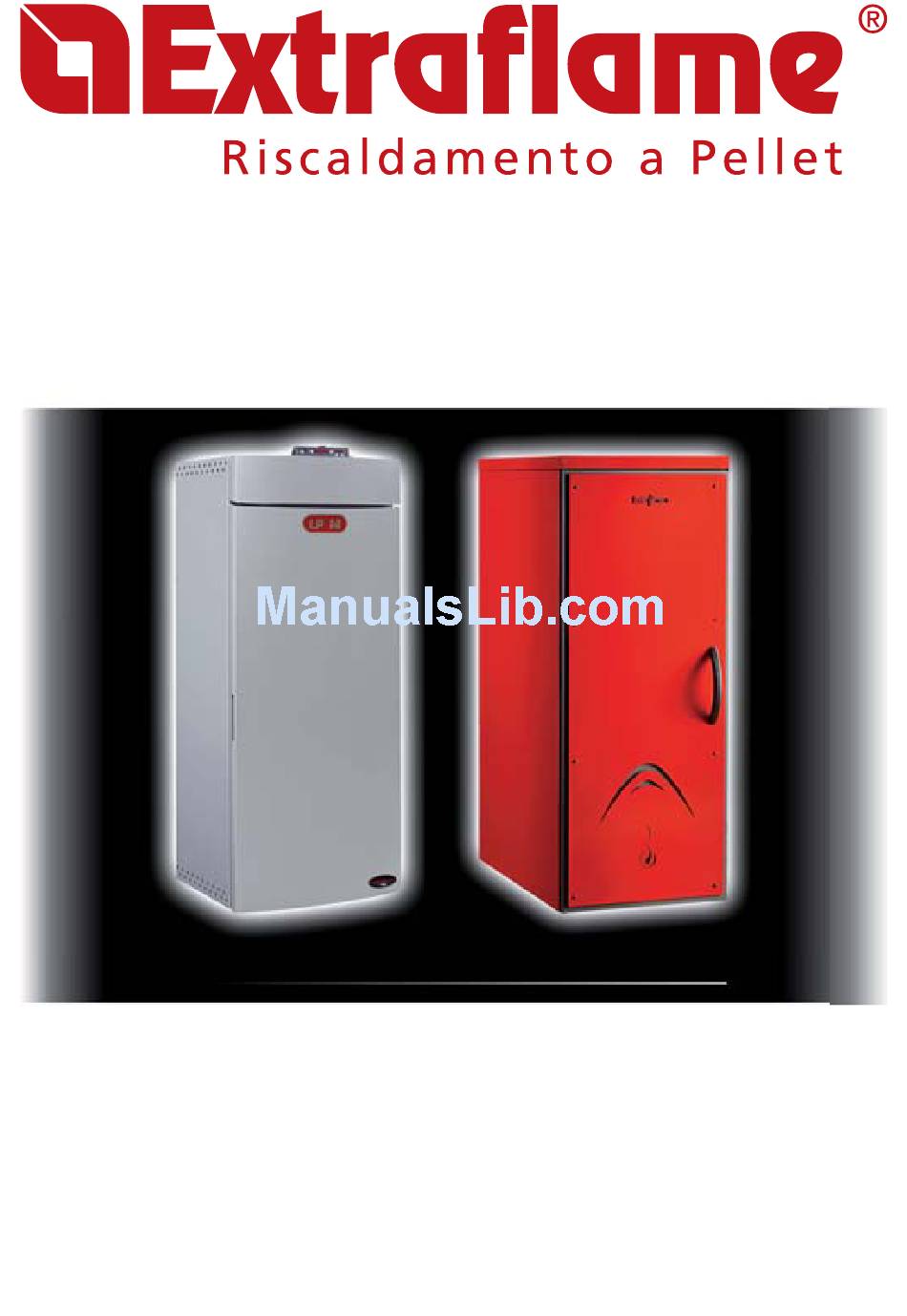

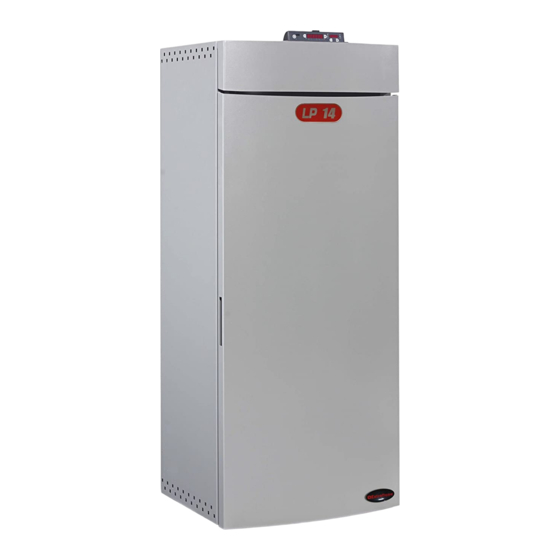

- Page 1 TERMOPELLET LP14 - LP20 User manual PELLET BOILERS Read the instructions carefully before installation, use and maintenance. The instruction book is an integral part of the product.
- Page 3 Congratulations! You are now the owner of an Extrafl ame boiler The Extrafl ame boiler is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a fl ame gives, in complete safety.
-
Page 5: Table Of Contents
Index Chapter1 WARNINGS AND SAFETY DEVICES......................7 Chapter3 THE FUEL ..............................9 PELLET FEEDING ................................9 Chapter4 SAFETY DEVICES ............................. 10 FLUE EXHAUST BREAKAGE ............................... 10 PELLET FEED MOTOR STOP .............................. 10 DOOR MICRO SWITCH ................................ 10 NO IGNITION................................... 10 TEMPORARY POWER CUT ..............................10 ELECTRIC SAFETY ................................. - Page 6 Chapter7 PRODUCT FUNCTIONALITY ........................25 CONTROL BOARD ................................. 25 LANGUAGE SELECTION ..............................26 CURRENT DAY AND TIME ADJUSTMENT ........................26 MODE ......................................26 MODE SELECTION ................................. 27 WINTER MODE ................................. 28 WINTER-DOMESTIC MODE..........................28 SUMMER MODE ............................... 28 SAFETY ZONE ..................................28 EXTERNAL THERMOSTAT FUNCTION IN STBY/TOFF”...
-
Page 7: Chapter1
Chapter1 WARNINGS AND SAFETY DEVICES INTRODUCTION The boilers produced by our establishment are built with attention to the individual components in a way to protect both the user and the installer from any accidents. It is therefore recommended that after any intervention on the product, that authorised staff pays particular attention to the electric connections, especially the stripped parts of the wires. - Page 8 Chapter1 APPROVALS The Extrafl ame boilers have been designed and realised in compliance with the following Directives: UNI EN 303-5 Boilers for central heating. Boilers for solid fuel, with manual and automatic feeding, with a nominal heat output up to 300 kW Compliance with the Low Voltage Directive (73/23 EEC) Compliance with the EMC Directive (Electromagnetic compatibility 89/336 EEC) FOR SAFETY...
-
Page 9: Technical Features
Chapter2 TECHNICAL FEATURES Features LP 14 LP 20 Weight Height 1327 1368 Width Depth Flue exhaust pipe diameter Air intake pipe diameter Max. global heat output 15.3 22.0 Max. useful heat output (to the water) 14.0 21.0 Minimum global heat output Min. - Page 10 Chapter2 LP 14 A = AIR INTAKE PIPE Ø 60 mm B = FLUE GAS EXHAUST PIPE Ø 120 mm C = BOILER 1 “ FLOW/OUTLET D = BOILER 1 “ RETURN/INLET E = 3 BAR 1/2 “ SAFETY DRAIN fi gure 2.1 TECHNICAL FEATURES...
- Page 11 Chapter2 LP 20 A = AIR INTAKE PIPE Ø 60 mm B = FLUE GAS EXHAUST PIPE Ø 120 mm C = BOILER 1 “ FLOW/OUTLET D = BOILER 1 “ RETURN/INLET E = 3 BAR 1/2 “ SAFETY DRAIN fi gure 2.2 TECHNICAL FEATURES...
-
Page 12: Chapter3 The Fuel
Chapter3 THE FUEL Pellets are realised by subjecting wood shavings i.e. the rejects of pure wood (without paint) sawmill, carpenter products and products from other activities connected to working and transforming wood, to very high pressures. This type of fuel is absolutely ecological as no glues are used to hold it together. In fact, the compactness of the pellets is guaranteed through time by a natural substance that is found in wood: lignin. -
Page 13: Chapter4 Safety Devices
Chapter4 SAFETY DEVICES FLUE EXHAUST BREAKAGE If the suction device stops, the electronic board immediately blocks the pellet supply. PELLET FEED MOTOR STOP If the motor reducer stops for any reason, the machine goes into alarm mode and the fumes motor continues to function in order to expel all combustion gas until the minimum cooling level is reached. -
Page 14: Water Overheating Safety Via 100° C Bulb
Chapter4 WATER OVERHEATING SAFETY VIA 100° C BULB (see fi gure 4.3) When the temperature of the water inside the product is in proximity of 100°C, pellet feeding is blocked. If the bulb trips, restoration of the safety device is manual and must be performed by an authorised technician. -
Page 15: Distances Of Safety Devices According To The Standard
Chapter4 Temperature indicator Pressure indicator Acoustic alarm Adjustment automatic circuit breaker switch Automatic circuit breaker switch (block thermostat) Circulation system Expansion system Safety dissipation system incorporated with the generator with thermal safety valve (self-activated), whenever the appliance does not have a temperature self-adjustment system DISTANCES OF SAFETY DEVICES ACCORDING TO THE STANDARD Component Distance... -
Page 16: Table Of Safety Devices For Closed Vessel System And Not Present In The Product
Chapter4 TABLE OF SAFETY DEVICES FOR CLOSED VESSEL SYSTEM AND NOT PRESENT IN THE PRODUCT Figure Safety valve * (managed by H Pump control thermostat probe and board fi rmware) Acoustic alarm activation thermostat Temperature indicator * (display) Pressure indicator Acoustic alarm Adjustment automatic circuit breaker switch * (board fi rmware) - Page 17 Chapter4 Rearm of the H 100° C overheating mechanical bulb 6 litre expansion vessel fi gure 4.3 fi gure 4.4 Enlarged detail of the door safety micro switch Pressure switch (detail): maximum pressure micro switch fi gure 4.5 fi gure 4.6 Pressure switch: minimum pressure micro switch rearm of the 85°C pellet tank overheating mechanical bulb...
- Page 18 Chapter4 Safety valve discharge Thermometer Manometer Flow Return ESBE 55°C Filling system fi gure 4.8 SAFETY DEVICES...
-
Page 19: Assembly And Installation Instructions
Chapter5 Chapter5 ASSEMBLY AND INSTALLATION INSTRUCTIONS The installation must comply with: UNI 10683 (2005) heat generators fed with wood and other solid fuels: installation. The chimneys have to be in compliance with: UNI 9731 (1990) chimneys: classifi cation based on thermal resistance. EN 13384-1 (2006) chimneys thermal and fl uid-dynamics calculation method. -
Page 20: Installation
Chapter5 SMOKE EVACUATION SYSTEMS Flue gas exhaust system independent from the appliance constituted by a fi tting or smoke channel, chimney or individual fl ue and chimney cap. FORCED DRAUGHT Air circulation by means of the fan activated by electric motor. NATURAL DRAUGHT Draught which determinates in a chimney/fl ue for eff ect of the volume mass diff erence existing between smoke (hot) and surrounding atmosphere air, without any mechanical intake aid installed inside it or at its... -
Page 21: Connection To The Smoke Evacuation System
Chapter5 CONNECTION TO THE SMOKE EVACUATION SYSTEM SMOKE CHANNEL OR CONNECTIONS To mount the smoke channels, non-fl ammable elements will have to be used, ideal for resisting fuel products and their eventual condensing. The use of fl exible metal and asbestos cement pipes to connect the appliances to the fl ue is forbidden, even for pre-existing smoke channels. -
Page 22: Chimney Or Individual Flue
Chapter5 It is forbidden to have other air supply channels and pipes for plant engineering, especially if over-sized, transit inside the smoke channels. The mounting of manual draught adjustment devices on forced draught appliances is forbidden. CHIMNEY OR INDIVIDUAL FLUE The chimney or individual fl ue must respond to the following requisites: seal the fuel products, waterproof and adequately insulated similarly to the use conditions;... - Page 23 Chapter5 Chimney cap Wind-proof < 3 m 3 - 5 % Flue Inspection Inspection fi gure 5.5 fi gure 5.6 < 3 m Insulated external 45° pipe Inspection 45° Inspection fi gure 5.7 fi gure 5.8 ASSEMBLY AND INSTALLATION INSTRUCTIONS...
-
Page 24: Appliance Connection To The Flue And Fuel Products Evacuation
Chapter5 APPLIANCE CONNECTION TO THE FLUE AND FUEL PRODUCTS EVACUATION The fl ue must receive the discharge from only one heat generator. The direct discharge towards closed spaces is forbidden, even with clear sky. The direct discharge of the fuel products must be at roof and the smoke pipe must have the features provided in the “Chimney or individual fl ue”... -
Page 25: Connection To External Air Inlets
Chapter5 CHIMNEY CAPS, DISTANCES AND POSITIONING Roof Distance between the Minimum chimney height inclination ridge and the chimney (measured from outlet) β A (m) H (m) < 1,85 0,50 m over the ridge 15° > 1,85 1,00 m from roof <... -
Page 26: Chapter6 Hydraulic System
Chapter6 HYDRAULIC SYSTEM Certain concepts referring to Italian normative UNI 10412-2 (2006) are described in this chapter. As previously described, when installing, all national, regional, provincial and town council Standards in force provided by the country in which the appliance has been installed must be complied with. TYPE OF SYSTEM There are two diff erent types of plant: Open vessel plant and closed vessel plant. -
Page 27: Feeding Water Features
Chapter6 COMMISSIONING CHECKS Before connecting the boiler arrange: a) an accurate washing of all plant piping in order to remove any residues which might compromise the correct functioning of certain plant components (pumps, valves, etc.). b) a check to verify that the fl ue as adequate draft, is not narrowed and that other appliances do not discharge into the fl ue. -
Page 28: Chapter7
Chapter7 PRODUCT FUNCTIONALITY CONTROL BOARD REMOTE CONTROL SENSOR (not available for this product) fi gure 7.1 ON/OFF BUTTON By pressing button 1 it is possible to switch the stove on and off automatically. FUNCTIONING POWER The heat power can be adjusted using buttons 4 and 5 Display D1 to view the various messages. -
Page 29: Language Selection
Chapter7 LANGUAGE SELECTION Follow the procedure below to select the desired language: Remove and restore the boiler power supply using the master switch or using the power supply cable. The boiler sequentially displays the following items before reaching “ OFF”: Microprocessor version ( LP_V8 or successive versions) Mode Selection ( WINTER as set in the factory) Language ( LANGUAGE) -
Page 30: Mode Selection
Chapter7 The boiler is arranged to receive certain supplementary external thermostats which allow to adapt and adjust the functioning of the same, in relation to the plant requirements. The “Winter”, “DHW Winter” and “Summer” functioning modes are for the use of thermostats. If thermostats are not used, in any mode, machine functioning will remain the same. -
Page 31: Winter Mode
Chapter7 Remove and restore the boiler power supply using the master switch or using the power supply cable. The boiler sequentially displays the following items before reaching “OFF”: Microprocessor version (LP_V..or successive versions) Mode Selection (WINTER as set in the factory) Language (LANGUAGE) Current day and time adjustment (CLOCK) Level (LEVEL setting reserved for authorised technicians) -
Page 32: External Thermostat Function In Stby/Toff" Mode
Chapter7 EXTERNAL THERMOSTAT FUNCTION IN STBY/TOFF” MODE The Stby function switches the boiler off when the additional external thermostat is satisfi ed. Connect one external thermostat in contacts 1 and 2 STBY of the board. THERMOSTAT CONNECTION CONTACT STATUS STOVE FUNCTIONING OPEN = REQUEST IGNITION STBY 2 1... -
Page 33: Ignition
Chapter7 The boiler you have purchased uses pellet fuel. This type of material is obtained from natural waste from the machining of wood. By means of a special process that does not require the use of any binding agent and additive, the waste is compressed in industrial machinery under high pressure and they become solid wooden pellets. -
Page 34: Start-Up
Chapter7 2. Open the door and empty the pellets from the brazier ATTENTION! N.B. DO NOT PUT THE PELLETS BACK IN THE TANK FROM THE BRAZIER 3.Close the door 4. Press key 1 for 3 seconds. After a check-up of about 8 seconds, the machine will start to clean the brazier, by striking the trapdoor and then starts the ignition process,following these 3 points: 1.Power supply to the ign-plug 2. -
Page 35: Water Temperature Adjustment
Chapter7 When the desired water set pint of the machine has been reached, it will switch off displaying “H Off ”. If there are external thermostats connected to the machine, please consult the table on the next page. WATER TEMPERATURE ADJUSTMENT The appliance can control the water temperature through a digital probe which automatically adjusts the machine functioning when nearing the desired temperature. -
Page 36: Winter Mode Output Board Management
Chapter7 WINTER MODE OUTPUT BOARD MANAGEMENT STATE OF THE CONTACT IN BOARD BOARD OUTPUTS INP 1 INP 2 OUT4 OUT3 WINTER DHW MODE OUTPUT BOARD MANAGEMENT STATE OF THE CONTACT IN BOARD BOARD OUTPUTS INP 1 INP 2 OUT4 OUT3 SUMMER MODE OUTPUT BOARD MANAGEMENT STATE OF THE CONTACT IN BOARD BOARD OUTPUTS... -
Page 37: Chapter8
Chapter8 USER PARAMETERS USER PARAMETERS WEEKLY PROGRAMMER Display D1 Display D2 Function UT 0 Act./Deact. Weekly programmer 00:00 UT 1 Time 1st switch-on 00:00 UT 2 Time 1st switch-off OFF 1 UT 3 Consents for 1st switch on/off for various days UT 4 Installer parameter 00:00... - Page 38 Chapter8 UT 4 Installer parameter 2 o 3 UT 5 Time 2nd switch-on 2 o 3 OFF or from 00:00 to 23:50 UT 6 Time 2nd switch-off 2 o 3 OFF or from 00:00 to 23:50 UT 7 Consents for 2nd switch on/off for various days 2 o 3 ON/OFF 1, ON/OFF 2, …...
- Page 39 Chapter8 Parameter 4 (D2=UT 4(fl ashing); D1= “00”] N.B. This parameter is reserved for the after-sales service and must not be modifi ed. Parameter 5 (D2=UT 5(fl ashing); D1=E.g. “15:00:00”] Use buttons 2 or 3 to set “15:00”, which corresponds to the switch-on time of the 2nd time span. To confi rm and continue programming, press button 5.
-
Page 40: Pellet Feed Adjustment
Chapter8 Press button 1 to escape. Nota bene: The relative indicator light on the control board will switch on when the weekly programmer is active (see display table description). TO DEACTIVATE THE WEEKLY PROGRAMMER enter user programming by pressing key 3 and holding it down press key 5. -
Page 41: Springs Automatic Cleaning Times
Chapter8 Adjustment table Increase the percentage value by 5 points and test functioning for at least half an hour. If the problem is attenuated, but not solved, increase by another 5 points. LACK OF FUEL Repeat the operation until the problem is solved. If the problem cannot be resolved, contact the after-sales service. -
Page 42: Chapter9
Chapter9 BOILER CLEANING Maintenance operations guarantee correct functioning of the product through time. Failure to comply with these operations can jeopardise the safety of the product. BRAZIER CLEANING The brazier is cleaned via a mechanical system at pre-fi xed intervals automatically by the boiler. The fi gure below shows the brazier with underlying opening. -
Page 43: Door And Ash Drawers Gaskets
Chapter9 DOOR AND ASH DRAWERS GASKETS The gaskets guarantee the tightness of the boiler and its consequent good functioning. These must be checked regularly: if they should be worn or damages they must be replaced immediately. These operations must be carried out by an authorised technician. N.B. -
Page 44: Chapter10 Product Display Tables
Chapter10 PRODUCT DISPLAY TABLES SIGNALS Signals Reason Solution Display A new ignition is attempted when When the stove switches off (normal or caused by an the boiler has just been switched alarm) it is necessary to wait until it cools down completely, WAIT FOR COOL. - Page 45 Chapter10 ALARMS Signals Reason Solution Display D1 It is on in the presence of one of the alarms described below and is accompanied by the relative signal in display D1, which identifi es the cause. To reset the alarm, just hold key 1 down Indicates the presence of an for 3 seconds when the boiler is completely cold.
- Page 46 Chapter10 Check the hydraulic plant pressure. The circulation pump is Bleed the air from the plant. blocked. Switch off the machine, wait for complete cooling and repeat HIGH WATER TEMP Insuffi cient plant pressure. the ignition cycle. Presence of air in the system. If the problem persists, the restoration operations must be carried out by an authorised technician.
- Page 47 Chapter10 LUMINOUS INDICATORS Signals Description Explanation Indicator light It is on/off when the Weekly programmer function is activated/ It indicates the Weekly programmer deactivated. function For all settings relative to the following function see the “Weekly programmer” function. The indicator fl ashes when the real functioning power is diff erent Indicator between real...
-
Page 48: Warranty Conditions
EXTRAFLAME S.p.A. is not liable for any damages that can, directly or indirectly, aff ect persons, objects and pets as a consequence of failure to comply with the prescriptions indicated in this manual/book. -
Page 49: Quality Control
QUALITY CONTROL QUALITY CONTROL... - Page 50 Chapter16 Notes...
- Page 52 Extrafl ame reserves the right to vary the features and data given in this document at any time without forewarning, in order to improve its products. This manual, therefore, cannot be considered as a contract for third parties. This document is available at www.extraflame.it/support 004205170 - INGLESE Manuale Utente LP14 - LP20 REV 004 130510...
