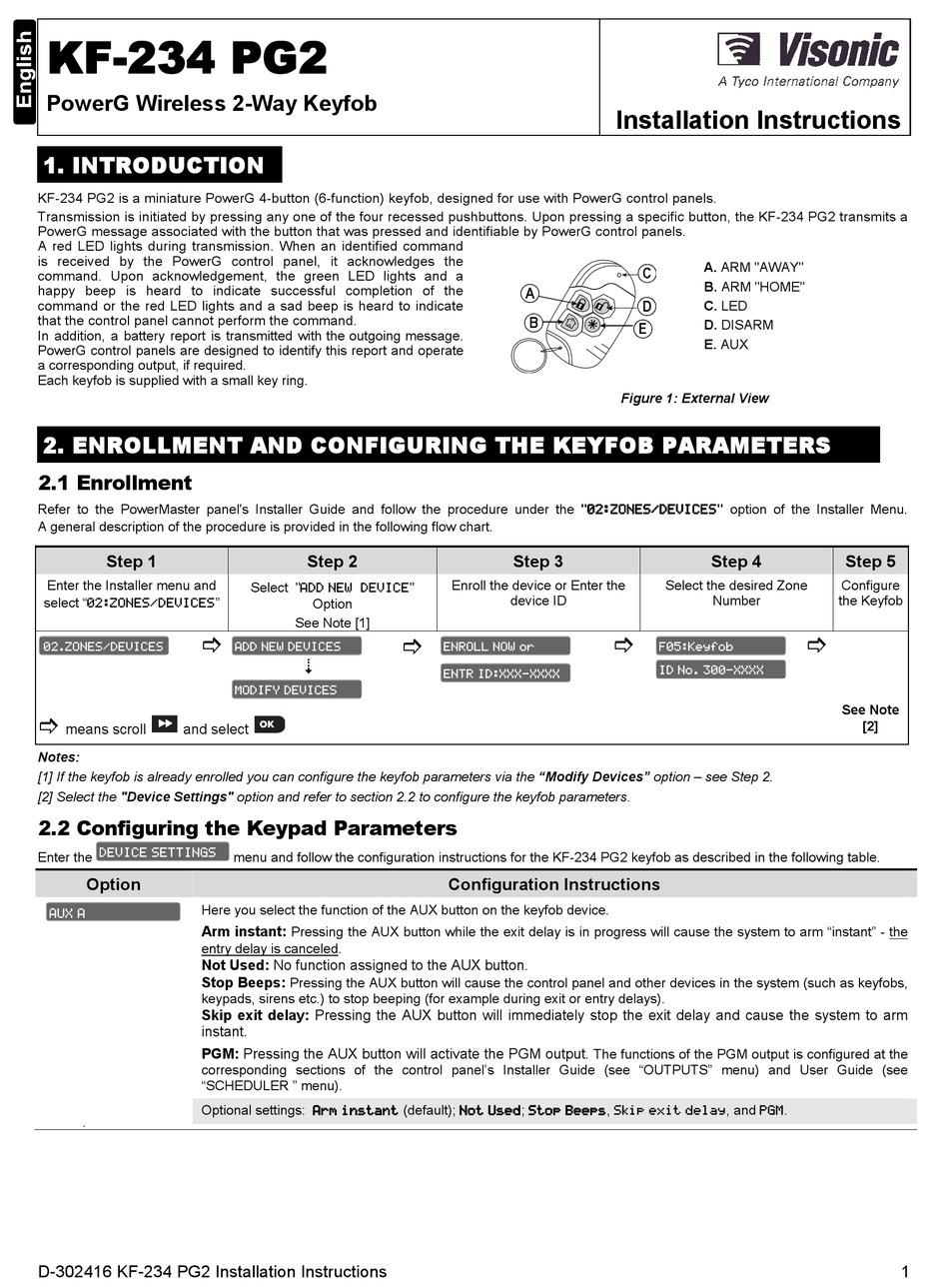

Visonic KF-234 PG2 Installation Instructions

KF-234 PG2
PowerG Wireless 2-Way Keyfob
1. INTRODUCTION
KF-234 PG2 is a miniature PowerG 4-button (6-function) keyfob, designed for use with PowerG control panels.
Transmission is initiated by pressing any one of the four recessed pushbuttons. Upon pressing a specific button, the KF-234 PG2 transmits a
PowerG message associated with the button that was pressed and identifiable by PowerG control panels.
A red LED lights during transmission. When an identified command
is received by the PowerG control panel, it acknowledges the
command. Upon acknowledgement, the green LED lights and a
happy beep is heard to indicate successful completion of the
command or the red LED lights and a sad beep is heard to indicate
that the control panel cannot perform the command.
In addition, a battery report is transmitted with the outgoing message.
PowerG control panels are designed to identify this report and operate
a corresponding output, if required.
Each keyfob is supplied with a small key ring.
2. ENROLLMENT AND CONFIGURING THE KEYFOB PARAMETERS
2.1 Enrollment
Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu.
A general description of the procedure is provided in the following flow chart.
Step 1
Enter the Installer menu and
select "02:ZONES/DEVICES"

02.ZONES/DEVICES

means scroll and select
Notes:
[1] If the keyfob is already enrolled you can configure the keyfob parameters via the "Modify Devices" option – see Step 2.
[2] Select the "Device Settings" option and refer to section 2.2 to configure the keyfob parameters.
2.2 Configuring the Keypad Parameters
DEVICE SETTINGS
Enter the
Option
Here you select the function of the AUX button on the keyfob device.
AUX A
Arm instant:
entry delay is canceled
Not Used: No function assigned to the AUX button.
Stop Beeps:
keypads, sirens etc.) to stop beeping (for example during exit or entry delays).
Skip exit delay: Pressing the AUX button will immediately stop the exit delay and cause the system to arm
instant.
PGM: Pressing the AUX button will activate the PGM output.
corresponding sections of the control panel's Installer Guide (see "OUTPUTS" menu) and User Guide (see
"SCHEDULER " menu).
Optional settings: Arm instant (default); Not Used; Stop Beeps, Skip exit delay, and PGM.

D-302416 KF-234 PG2 Installation Instructions
Step 2
Select "ADD NEW DEVICE"
Option
See Note [1]

ADD NEW DEVICES

MODIFY DEVICES
menu and follow the configuration instructions for the KF-234 PG2 keyfob as described in the following table.
Pressing the AUX button while the exit delay is in progress will cause the system to arm "instant" - the
.
Pressing the AUX button will cause the control panel and other devices in the system (such as keyfobs,

Installation Instructions

A
B
Figure 1: External View
Step 3
Enroll the device or Enter the
device ID

ENROLL NOW or
ENTR ID:XXX-XXXX
Configuration Instructions
The functions of the PGM output is configured at the
A. ARM "AWAY"
C
B. ARM "HOME"
D
C. LED
D. DISARM
E
E. AUX
Step 4
Select the desired Zone
Number

F05:Keyfob
ID No. 300-XXXX
Step 5
Configure
the Keyfob
See Note
[2]
1
