Visonic KF-234 PG2 Installation Instructions

KF-234 PG2
Wireless PowerG 2-Way Keyfob
1. INTRODUCTION
KF-234 PG2 is a miniature PowerG 4-button (6-function) keyfob,
designed for use with the PowerMaster-10.
Transmission is initiated by pressing any one of the four recessed
pushbuttons. Upon pressing a specific button, the KF-234 PG2
transmits a PowerG message associated with the button that was
pressed and identifiable by PowerMaster-10 control panels.
A red LED lights during transmission. When an identified command is
received by the PowerMaster-10 control panel, it acknowledges the
command. Upon acknowledgement, the green LED lights and a
happy beep is heard to indicate successful completion of the
command or the red LED lights and a sad beep is heard to indicate
that the control panel cannot perform the command.
2. SPECIFICATIONS
Frequency Band (MHz): Europe: 433, 868, USA: 915
Modulation: GFSK
Antenna: Built-in helical antenna.
Communication Protocol: PowerG.
Battery type: 3V CR-2032 Lithium battery.
Caution!
Risk of explosion if battery is replaced by an incorrect type. Dispose
of used battery according to manufacturer's instructions.
:
Battery Life Expectancy 8 years (for typical use)
Note: If transmission is still possible despite the battery condition, the
unit will send a low battery signal to the control panel.
3. ENROLLMENT
Refer to the PowerMaster-10 Installer Guide for the device enrollment procedure.
4. MODIFY DEVICE SETTINGS
This section describes how to configure the parameters for home monitoring of people from the PowerMaster-10 control panel.
To Modify the Keyfob Device Settings
Refer to the PowerMaster-10 Installer Guide and perform the procedure for Adding A Wireless Device (section 4.5.2), or, Modifying a Device
(section 4.5.5). Then continue below to modify the device settings.
DEV SETTINGS
1.
AUX A
2.
instant
3.
or
4.
AUX A
5. OPERATION
Initiate Panic Alarm: Press ARM AWAY and ARM HOME together
for 2 seconds.
Arming Latchkey: Press ARM AWAY/HOME twice.
D-302416
In addition, a battery report is transmitted
with the outgoing message. PowerMaster-
10 control panels are designed to identify
this report and operate a corresponding
output, if required.
Each keyfob is supplied with a small key
ring.
Operating power is obtained from an
internal 3V Lithium battery.
Transmitted Messages: Arm Away, Arm Home, Arm Latchkey,
Disarm, AUX and Panic.
Operating Temperature: 0° to 55°C (32° to 131°F).
Dimensions: 60 x 34.5 x 12.5 mm (2-3/8 x 1-3/8 x 1/2 in.).
Weight (including battery) : 25 g (0.9 oz).
Color: Black
Compliance with Standards:
Europe: EN 300220, EN 50131-1 Grade 2, Class II and (EN 50134-2
Class II if used for social alarm), EN 301489, EN 50130-4, EN 60950
USA: CFR47 Part 15
Canada: RSS 210
Here you select the function of the AUX button on the KF-234 PG2 keyfob.
Select between "instant", "skip exit delay" and "PGM".
When exiting "
ZONES / DEVICES
that need to be updated, as follows: DEV UPDATING NNN.
For detailed instructions on Adding Devices, Deleting Devices, Replacing Devices and Defining
Defaults see the PowerMaster-10 Installer Guide.
Arm AWAY/HOME: Press AWAY or HOME button once.
Status: Press ' ' button once.
Installation Instructions
" menu the PowerMaster-10 system displays the number of devices

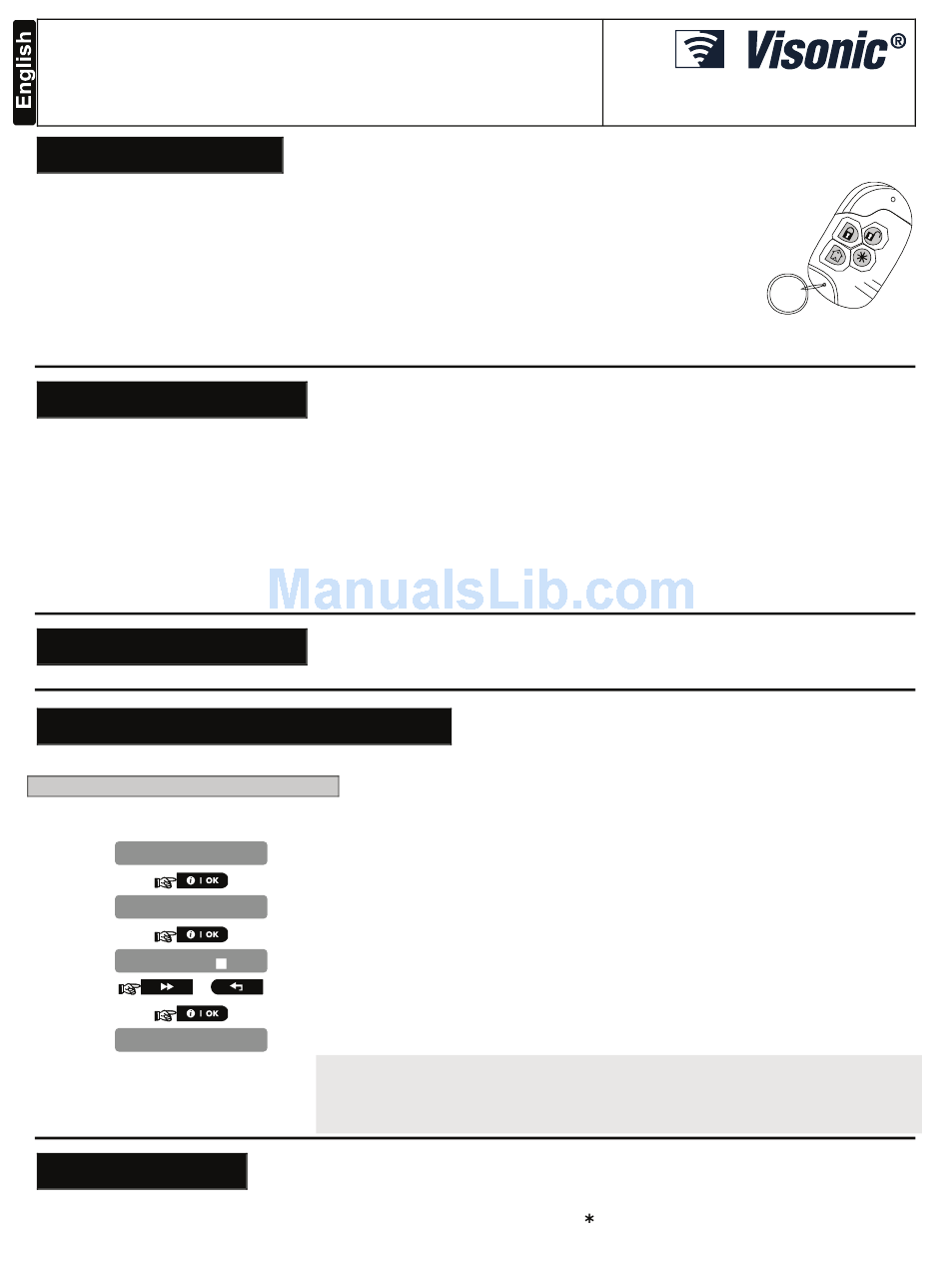

Figure 1:
External View
1
