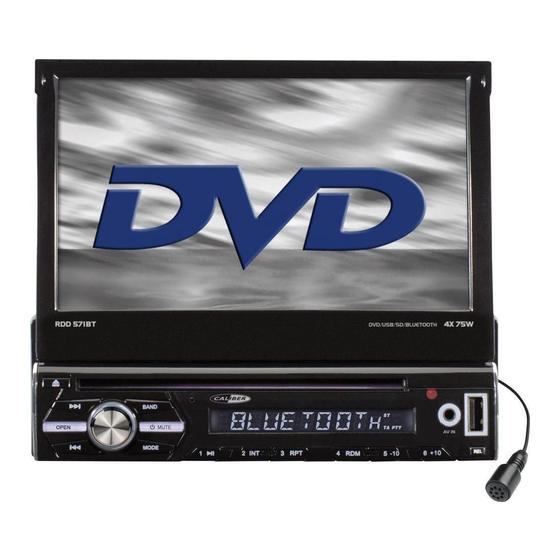

Caliber RDD 571BT Instruction Manual
  1. Manuals
  2. Brands
  3. Caliber Manuals
  4. Car Receiver
  5. RDD 571BT
  6. Instruction manual

Caliber RDD 571BT Instruction Manual

Hide thumbs Also See for RDD 571BT:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Caliber RDD 571BT

Summary of Contents for Caliber RDD 571BT

  • Page 2 PRECAUTION CAUTION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE RISK OF ELECTRIC SHOCK THIS APPLIANCE TO RAIN OR DO NOT OPEN MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 3: Table Of Contents

    Contents 1. Before Operation...................3 1.1 Glossary....................3 1.2 Precautions....................3 1.3 Maintenance and Cleaning of Discs............4 1.4 Battery Information of the Remote Control..........4 1.5 Remote Control Description..............5 1.6 Locations and Names of Controls on or in the unit........6 1.7 Wires Connection Description..............7 1.8 Unit Installation......

  • Page 4: Before Operation

    1. Before Operation 1.1 Glossary PBC (playback control) This is a signal(menu) recorded on the disc with SVCD or VCD2.0 format used for the playback control. For discs containing PBC, It can playback interactive software with the menu displayed on monitor screen. If the disc contains still images, it can playback high definition still images.

  • Page 5: Maintenance And Cleaning Of Discs

    1.3 Maintenance and Cleaning of Discs Disc Maintenance 1. To keep the disc clean, handle the disc by its edge, do not touch the disc surface of the play side. 2. Do not stick paper or tape on the disc. If there is glue(or dirt) on the disc surface, wipe it before using.

  • Page 6: The Remote Control Description

    1.5 The Remote Control Description 1. ANG BUTTON 2.PBC/MENU BUTTON OPEN 3. POWER BUTTON 4. ^ BUTTON 5. >>| BUTTON 6. > BUTTON 7. |<< /CLEAR BUTTON 8. v BUTTON 9. SEL BUTTON 10. PLAY/PAUSE BUTTON 11. NUMBER(0~9,+10 -10) BUTTONS 12.

  • Page 7: Locations And Names Of Controls On Or In The Unit

    1.6 Locations and Names of Controls on or in the unit 16 15 BAND OPEN MUTE MODE Front Panel The Front Face after removing front panel 1. OPEN button 13.USB Jack 2. POWER/MUTE button 14. REL button 3. MODE button 15.

  • Page 8: Wires Connection Description

    1.7 Wires Connection Description The Description of the Input/Output Interface of the Rear Cabinet BT Microphone in Fixing Screw Bolt Radio Antenna Wiring Connecting Socket 2 Wiring Connecting Socket 1 1. Parking wire must be connected. And the parking brake must be engaged in order for the monitor to work. 2.

  • Page 9: Unit Installation

    Description of Connecting the Parking Brake Line to the Parking Brake System Built in the Car Parking brake Parking brake line(green) Parking brake switch To metallic body or chassis of the car (inside the car) NOTE: after connecting the Parking Line, the video on the small monitor of the front panel will be display only after braking the car. 1.8 UNIT INSTALLATION INSTALLATION INSTRUCTIONS THE UNIT IS INSTALLED TO BE AN ANTI-THEFT ONE.

  • Page 10: Common Operation

    2. Common Operation 1. To turn on/off the unit In power off mode, briefly press any button on the unit or remote control to turn on the unit. In power on mode,press and hold the POWER button on the front panel or briefly press the POWER button on the remote control to turn off the unit.
  • Page 11 8. To select a desired EQ mode Press the EQ button on the remote control to select one of the preset music equalizer curves: ROCK, POP, CLASS, EQ OFF. The sound effect will be changed. 9. To turn on/off LOUD mode Press the LOUD button to turn on/off LOUD mode.

  • Page 12: Radio Operation

    12.To change the color of the LED display in the front panel Tap the CCLED icon in the Mode Menu interface to pop up the LED color changing interface. Tap the direction icon < or > to select your desired color mode : FLASH ( The 5 colors will be changing automatically in certain order.) RED, GREEN, BLUE, WHITE, ORANGE ( backlight in single color mode) CUSTOM (select this mode then tap the “+”...
  • Page 13 2. BAND BUTTON In RADIO mode, press the BAND button on the remote control to select your desired radio band of FM1, FM2, FM3, AM1 and AM2. 3. TUNE/SEEK UP/DOWN BUTTONS In RADIO mode: 1) Press and hold the >>|/|<< button on the remote control or the icons in the radio interface to automatically search up/down for an available station from current frequency.
  • Page 14 causes interference to the receiving effect during tuning, press this button to turn on the LOC function to display the word LOC on LCD, then tune again for the local radio station. 8. PTY (PROGRAM TYPE) BUTTON Press the PTY button briefly to turn on PTY mode,then press the + or - button on the remote control or front panel to select one of PTY programs as follows: <-->NEWS<-->AFFAIRS<-->INFO<-->SPORT<-->EDUCATE<-->DRAMA <-->CULTURE<-->SCIENCE<-->...

  • Page 15: Disc, Usb And Card Operation

    announcement on that other program, and TA, TP will be displayed on LCD * TA interruption function: The current traffic announcement is cancelled by pressing TA button shortly. * When TA is on, SEEK, (SCAN), AUTO MEMORY function can be received or saved only when traffic program identification code has been received.
  • Page 16 : Tap it to pause playback : Tap it to stop playback . :Tapping one of them can switch on between the speed levels of fast backward or forward. (Except image mode.) : Tapping one of them can select next or previous chapter/track.

  • Page 17: Pause Playback

    4.2 Pause Playback When playing DVD/VCD/CD/MP3/WMA file , press the PAUSE button on IR remote controller to pause the playback, press the PLAY button to resume normal playback. 4.3 Stop Playback When playing DVD/VCD/MP3/WMA/CD file , press the STOP button once to pause the playback, then press the PLAY button to resume the normal playback;...

  • Page 18: Playback With Speed

    Press the direction buttons to select your desired chapter, finally press the OK or PLAY button to play the selected chapter. During playback, pressing the MENU button can directly display the root menu of the title that is playing. In VCD mode 1.

  • Page 19: Display Still Frame Step By Step

    During slow forward, press the PLAY button to resume normal playback. The function is only for video. 4.9 Display still frame step by step If the unit is currently playing video, press the STEP button consecutively to display still frame step by step. Press the PLAY button to resume normal playback.

  • Page 20: Playback In Scan Mode

    4.11 Playback in Scan Mode 1. When playing VCD(PBC OFF)/CD discs , press the INT button to play the previous 10 seconds part of each track on the disc. Press the INT button again to resume normal playback. 2. When playing DVD/MP3/WMA sources , the INT button is not available. 4.12 Playback from a specified chapter/track 1.

  • Page 21: Change The Caption Language

    4.16 Change the Caption Language When playing DVD ,press the SUBTITLE button repeatedly to select the language of the caption or turn off the caption.(depend on the media used.) When playing VCD/MP3/WMA/CD discs,the buttons are not available. 4.17 Change the Audio Language 1.

  • Page 22: Program Playback

    4.19 Program Playback It allows you to enter the order in which you want some chapters/tracks in DVD/VCD/MP3/WMA/CD to play. 1 During playback, press the PROG button to enter a program interface as follows: 2 Use the direction buttons to move cursor onto the desired place for inputting the sequence number.

  • Page 23: Playback Mp4 Files

    3. During IMAGE playback, press the direction button on the remote control to change the angle of viewing picture that is displaying as follows: : 90 deg cw; : 90deg ccw; :UP<-->DOWN; : LEFT<-->RIGHT During IMAGE playback, press the PROG button to change the mode of refresh picture.
  • Page 24 3. Press the button to select an setup item in the selected setup page. 4. Press the button to enter the setup item. Then press the or button to select a desired mode of the setup item, finally press the OK button to confirm it. Press the button to return to the upper level.
  • Page 25 4.23.2 LANGUAGE SETUP OSD LANGUAGE This item is for selecting the language of the SYSTEM MENU and all operating prompt interface displayed during playback. AUDIO LANG This item is for selecting a audio language. SUBTITLE LANG This item is for selecting a subtitle language. MENU LANG This item is for selecting a disc menu language.
  • Page 26 4.23.5 SPEAKER SETUP DOWNMIX This is for selecting your desired sound effect when there is not central speaker and subwoofer. There are 3 mode: LT/RT, STEREO, VSS. LT/RT: When playing a disc with PRO LOGIC stereo effect, choose the item, so it will output audio signal with vivid theatre effect.

  • Page 27: Parental Control

    * Parental Control Q:After inserting DVD disc into disc compartment, a dialogue window will appear that asks you to input a password of 4 digit. Why ? A:This is because the disc movie you are playing was rated with the Parental Control, and the current rating level of DVD player is lower than one of current disc.

  • Page 28: Region Code

    Region Code Q: No playback, but REGION ERROR is displayed after loading a DVD. Why? A: Because the DVD player and disc have respective region codes. If the region codes do not match. the DVD player will not be able to play the disc. Appendix: The region code of DVD: The Motion Picture Association of Amereca (MPAA) divided the world into 6 regions, and named every region a code, namely region code.

  • Page 29: Bluetooth Hands-Free System

    5. BLUETOOTH HANDS-FREE SYSTEM 1. Enter Bluetooth mode Use MODE button or Mode Menu to enter Bluetooth mode, it will display Bluetooth DIAL interface as right. In Bluetooth DIAL interface, the icons descriptions are as follows: Bluetooth DIAL interface : Tap this icon during BT phone conversation to switch between Unit and Phone.
  • Page 30 5. Dialling when in connection status 5.1 Dial with the mobile phone directly. 5.2 Dial with remote control with the following procedures: (1) Input telephone number with number buttons 0-9 * Press CLEAR button briefly to cancel the wrongly input number if necessary (2) Press TEL briefly to execute the dialing.

  • Page 31: Trouble Shooting

    6. Trouble Shooting Please read the user’s manual carefully before using the DVD player. If you have any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can not remove the trouble after using all the suggestions, please contact the company or the technical service center authorized by us.

  • Page 32: Specification

    7. Specification General Specification Power Supply Requirement..........DC 12V Maximum Power Output............4 x 25W Dimensions(w x h x d)...........1 78 x50 x 160m DVD Deck Specification Format........DVD/VCD/JPEG/MP4/MP3/WMA/CD Video System................NTSC Audio Sy stem..............24 bit/96KHz Loading System............Auto Loading Mounting Angle..............0 to +/-30 Video Specification Video Type..............16:9 and 4:3 Video Output level........Composit e:1.0±...
