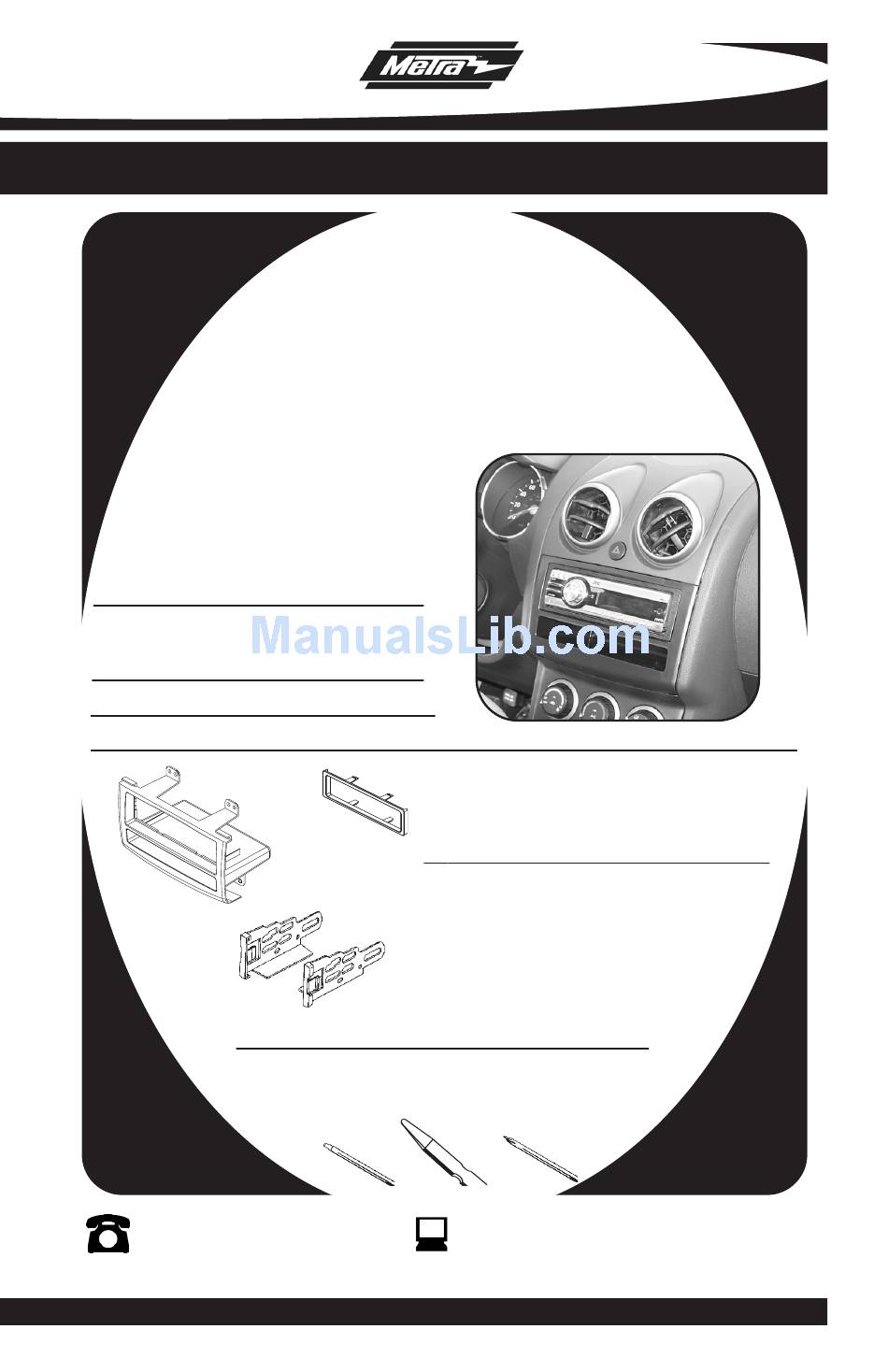

INSTALLATION INSTRUCTIONS FOR PART 99-7425
Nissan Rogue 2008-10
99-7425
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) Trim Plate • C) ISO Brackets
A
C
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
B
Harness & Antenna Connections (sold separately)
• 70-7552 - Nissan Harness 07-up
• 40-NI12 - Nissan Antenna Adapter 07-up
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
www.metraonline.com
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-7425
Summary of Contents for Metra Electronics 99-7425
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7425 Nissan Rogue 2008-10 99-7425 KIT FEATURES • DIN Radio Provision with Pocket • ISO Mount Radio Provision with Pocket KIT COMPONENTS A) Radio Housing • B) Trim Plate • C) ISO Brackets Small Flat Blade Screwdriver/ Panel Removal Tool 1-800-221-0932 ©...
-
Page 2: Table Of Contents
Final Assembly ......... . .5 *Note: Refer also to the instructions included with the aftermarket radio. 99-7425... -
Page 3: Nissan Rogue 2008-10
(Figure B). Unclip the panel above the radio including the a/c vents, then unplug hazard switch and remove. (Figure C) Note: If not equipped with center speaker skip step number 2. Continued on page 2. 99-7425 DASH DISASSEMBLY... - Page 4 Unclip the panel below the radio including the climate controls. Unplug climate controls and remove the panel. (Figure D) Remove (4) Phillips screws securing the radio, unplug and remove radio. (Figure E) Continue to kit assembly. 99-7425 DASH DISASSEMBLY PASS AIR BAG...
-
Page 5: Din Radio Provision With Pocket
Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage until it snaps into place. (Figure B) Continue to final assembly. 99-7425 KIT ASSEMBLY... -
Page 6: Iso Mount Radio Provision With Pocket
(Figure A) Slide the radio into the radio housing until it snaps into place. (Figure B) Snap the trim plate onto the front of the Radio Housing. (Figure B) Continue to final assembly. 99-7425 KIT ASSEMBLY... -
Page 7: Final Assembly
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-7425 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together... - Page 8 99-7425 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 04/29/10 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION INST99-7425...
