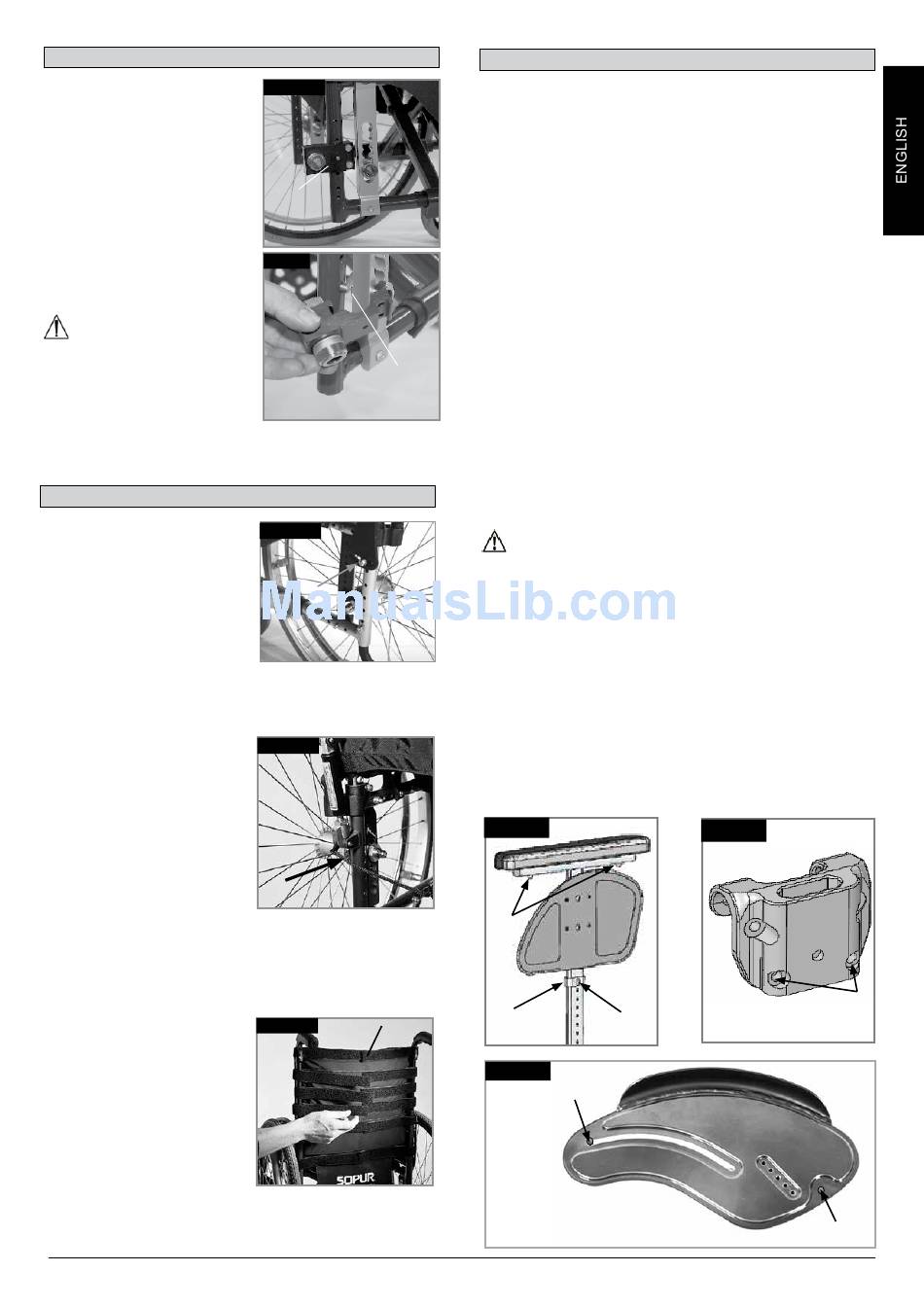

Amputee Axle Plate

Amputee Axle Plate
(Fig. 5.25 - 5.26)
The larger the wheel base is,
the greater is the stability of the
wheelchair. The wheel base can
be extended by screwing the axle
sleeve (1) onto the frame at the
desired height. Make sure that the
steel pin (2) is mounted correctly
in the hole drilled in the frame for
this purpose. When finished, make
sure that all screws have been
properly tightened (see the page
on torque).
CAUTION!
Wheel locks must be ad justed for
the new position.

Backrests

Backrest angle
Undo the screw A and pull the
screw out of its position. Set the
desired angle and then re-tighten
the screw.
Make sure that the angle is set
the same on both sides. Please
observe the Nm torque value (see
the page on torque).
Variable Angle-Adjustable
Backrests (Fig. 5.28)
You can adjust the angle of the
backrest to meet your individual
needs by pulling on the cord (1).
The mechanism automatically
snaps into place when you release
the cord.
Adjustable Backrest Upholstery
(Fig. 5.29)
The sling can be adapted to any
degree of tension by adjusting
the Velcro fasten ers, (1). The
padding in the backrest can be
removed through an interior
opening, allowing you to cushion
the backrest according to your
individual needs.
Fig. 5.25
1
Fig. 5.26
2
Fig. 5.26
A
Fig. 5.28
1
1
Fig. 5.29

Sideguards

Tool Height Adjustable Armrest
Installation: Slide the arm post into the receiver, located on the
wheelchair frame, until it stops
Height adjustment:
Slide the arm rest post out of the receiver.
Adjust the position of the hight adjustment bracket (1) by
removing the screw (2) and moving it to the desired posiion.
Re-fit the screw and tighten it.
Slide the arm rest post back into the receiver, (Fig.6.29).
Armpad Position:
The armpad position can be adjusted by relesing the screws (3),
then moving the arm pad to the desired position. Re-tighten the
screws, (Fig.6.24).
Adjusting Armrest Receiver
The tightness of the armrest receiver can be adjusted (tightened
/loosened) by means of the 2 screws (1) - (Fig.6.30).
Sideguard With Clothes Protector (Fig.6.31)
The clothes protector prevents clothes getting dirty from spray
water. You can set the position in relation to the rear wheel by
moving the sideguard.
To do this, remove the fixing screws (1 and 2).
After setting to the desired position, re-tighten the screws (see
the page on torque).
WARNING!
Neither the sideguards nor the armrests are to be used for
lifting or carrying the wheelchair
Fig.6.29
3
1
2
Fig.6.31
1
Fig.6.30
1
2
EASY 200-300
19
