WIRELESS REMOTE CONTROLLER INSTALLATION MANUAL
 Fasten the wiring to the terminal securely and hold the cable securely so as not to apply unexpected stress on the terminal.
Loose connection or hold will cause abnormal heat generation or fire.
 Make sure the power supply is turned off when electric wiring work.
Otherwise, electric shock, malfunction and improper running may occur.
 Install a receiver unit where it is not exposed to direct sunrays or intense light from lighting fixtures.

1 Accessories

Please make sure that you have all of the following accessories.
Remoto controller holder
1

2 Installation of the controller holder

CAUTION DO NOT install it on the following places.
1. Places exposed to direct sunlight
3. Places near heat devices
5. High humidity places
Installation tips for the remote controller holder
• Adjust and keep the holder up right.
• Tighten the screw to the end to avoid scratching the
• DO NOT attach the holder on plaster wall.

How to insert batteries

1 Detach the back lid.
2 Insert the batteries. (two AAA batteries)
3 Reattach the back lid.
WARNING
CAUTION
AAA dry cell battery (RO3)
2
2. Hot surface or cold surface enough to generate condensation
4. Places exposed to oil mist or steam directly.
6. Uneven surface
Wood screw for holder
2
Wood screw
Ensure the correct
polarity when
inserting.
PFA012D620

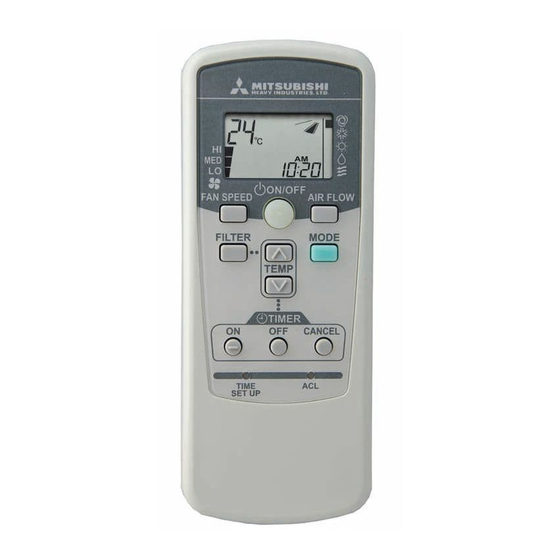

Wireless remote controller
1
Holder for
remote controller
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCN-E1R and is the answer not in the manual?

Questions and answers

Summary of Contents for Mitsubishi Heavy Industries RCN-E1R

  • Page 1 PFA012D620 WIRELESS REMOTE CONTROLLER INSTALLATION MANUAL WARNING  Fasten the wiring to the terminal securely and hold the cable securely so as not to apply unexpected stress on the terminal. Loose connection or hold will cause abnormal heat generation or fire. ...
  • Page 2 3 FDEN Setting on site To change setting PCB on the receiver has the following 1. Remove the front panel. switches to set the function. 2. Remove four screws located on the back of the receiver and Default setting is shown with mark.
  • Page 3 3 FDEN (continued) Wireless remote controller unit operation distance 1 Standard signal receiving range 2 Points for attention in connecting a plural [Condition] number of indoor units [Condition] Illuminance at the receiver area: 360 lux. (When no lighting fixture is located within 1m of Illuminance at the receiver area: 360 lux.
  • Page 4 3 FDEN (continued) How to read the two-digit display A two-digit indicator (7-segment indicator) is provided on the receiver section. (1) An indication will be displayed for one hour after power on. (2) An indication appears for 3.5 seconds when a “Stop” command is sent from the wireless remote control unit while the air conditioner is not running.
  • Page 5 RCN-E1R Unit:mm PJZ000Z263...
