CAUTION: High Voltage Wires
WARNING Electricity is dangerous. Before commencing work, ensure that you read and understand these instructions and isolate
the relevant circuit. This product should only be installed by a qualified electrician or heating engineer and should be installed
in accordance to BS 7671 (IEE Wiring Regulations), or to another equivalent standard.

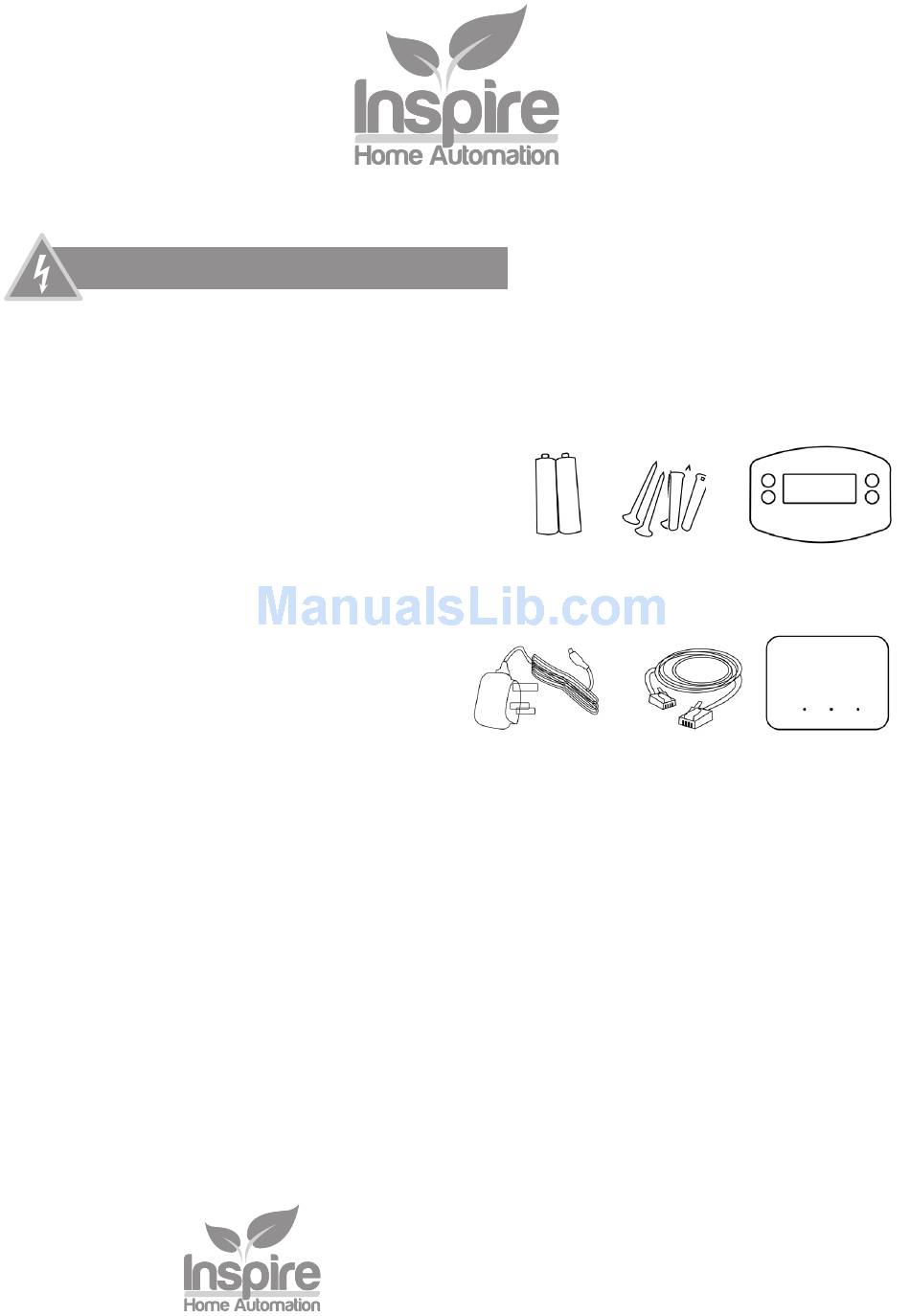

Whats in the box

1 x Assembled Room Thermostat consisting of
1 x Room Thermostat
1 x Wall Mount
1 x Wiring Cover
1 x Thermostat screw pack
2 x Batteries
(If you have ordered a zoned system you will recieve
one set of above per zone)
1 x Gateway
1 x Network Cable
1 x Power Supply
The NS1001 series is designed to replace an existing wired Thermostat in a property.
If you do not have an existing wired Thermostat then you would need to run cable, or consider using our
NS1002 wireless series.
Once installed, your central heating can be switched on and off in response to commands from the
Thermostat or remotely using a computer or smart phone.
NS1001 Installation Guide
Inspire Home Automation
www.inspirehomeautomation.co.uk
contact@inspirehomeautomation.co.uk
01202 798390
Rev 1.0
Batteries
Thermostat
Screw Pack
Power Supply
Network Cable
Room Thermostat
Gateway
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS1001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Inspire NS1001

  • Page 1: Whats In The Box

    Network Cable Gateway The NS1001 series is designed to replace an existing wired Thermostat in a property. If you do not have an existing wired Thermostat then you would need to run cable, or consider using our NS1002 wireless series.
  • Page 2: Specifications

    If you cannot get a signal using these suggestions, consider using home plugs. These will allow you to use your home’s power cables to locate your gateway next to any power point. You can find home plugs on Amazon, eBay, PCWorld etc. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk...
  • Page 3  The signal travels between 2 external walls. Good Positioning Gateway Thermostat Simply by moving the gateway slightly to the right we have greatly improved the signal.  The signal will now only travel through one internal wall Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390...
  • Page 4 Do you have a valid internet connection? Check by plugging in another device. • Unplug both the Router and the Gateway. Wait 30 seconds, then plug the router back in. Wait 2 minutes, then plug our Gateway back in. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390...
  • Page 5 For reference, the two holes are 75.5mm apart. Drill suitable holes (6mm diameter for the wall plugs supplied), insert wall plugs and screw the wall mount to the wall. WARNING be aware of any buried cables before drilling. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390...
  • Page 6 Great care must be taken to ensure that your Room Thermostat is wired correctly. Incorrect wiring can be dangerous and could result in a blown fuse and / or a damaged Room Thermostat. Inspire Home Automation will not accept any liability whatsoever for damage caused to your central heating system and/or electrical system as a result of the incorrect wiring of the Thermostat.
  • Page 7: Testing The System

    25 degrees. Check that the boiler has fired up and any zone valves have moved to their appropriate positions. Press the ‘S’ key again on the Thermostat to switch it off. Please leave this installation manual with the user. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk...
  • Page 8 Press the pairing button on the back of the Gateway, (The RF light will flash amber) • Press and hold the M & S keys on the Thermostat for 5 seconds, the RF symbol, bottom left should start to flash. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390...
