CAUTION: High Voltage Wires
WARNING Electricity is dangerous. Before commencing work, ensure that you read and understand these instructions and isolate
the relevant circuit. This product should only be installed by a qualified electrician or heating engineer and should be installed
in accordance to BS 7671 (IEE Wiring Regulations), or to another equivalent standard.

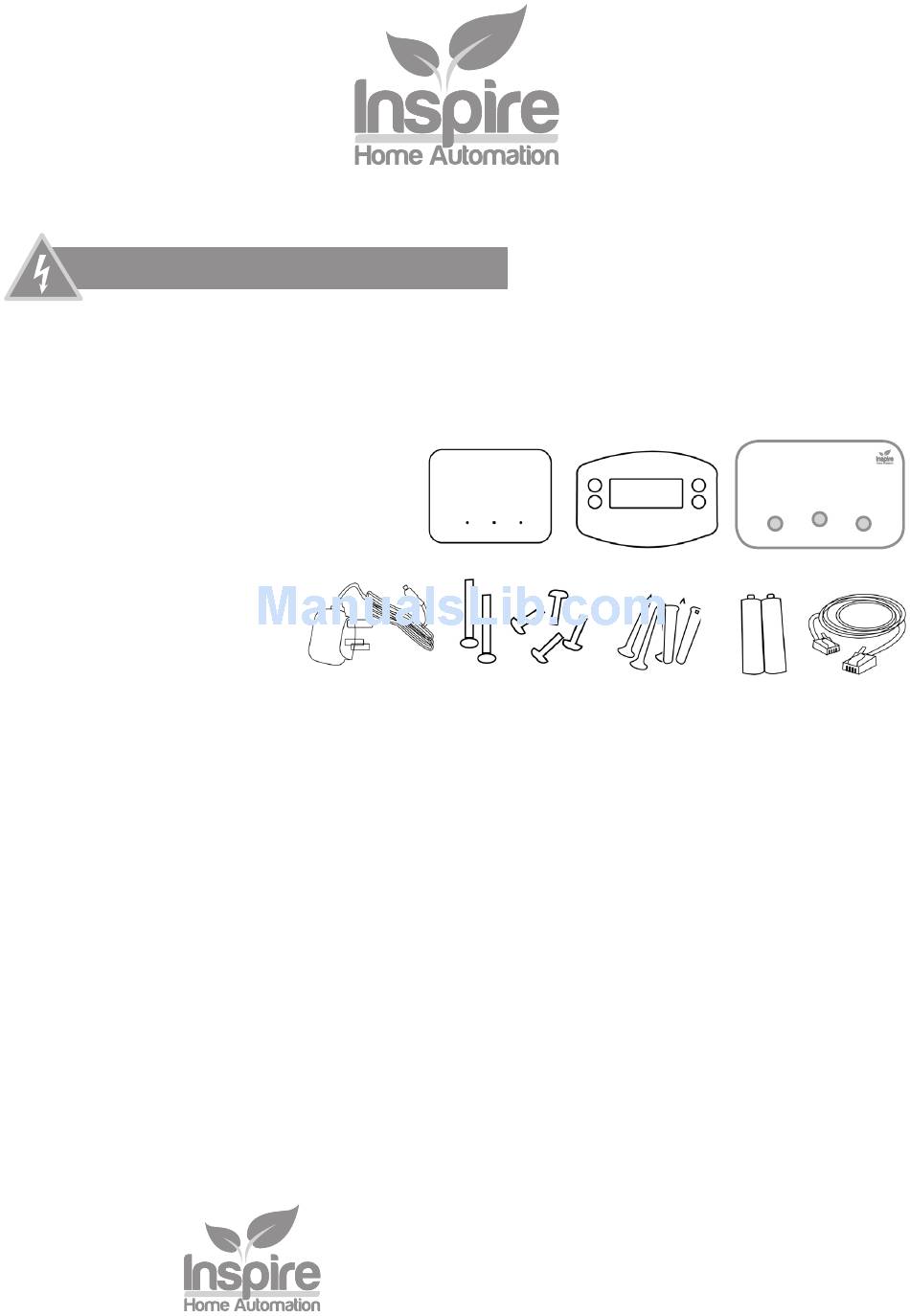

Whats in the box
1 x Assembled Room Thermostat consisting of
1 x Room Thermostat
1 x Wall Mount
1 x Assembled Relay Module consisting of
1 x Control Board
1 x Wall Mount
1 X Front Cover
1 x Gateway
1 x Network Cable
1 x Power Supply
1 x Thermostat screw pack
1 x Relay Module Screw Pack
2 x Batteries
Introduction
The NS1002-1ch series is designed to control a typical Combi Boiler setup. It can switch a single output
channel. The central heating channel is switched on and off in response to commands from the supplied
Wireless Thermostat.
The Hot Water channel is not used.
NS1002-1ch Installation Guide
Power Supply
Inspire Home Automation
www.inspirehomeautomation.co.uk
contact@inspirehomeautomation.co.uk
01202 798390
Rev 1.0
Gateway
Room Thermostat
Relay Module
Thermostat
Screw Pack
Screw Pack
Relay Module
Batteries
Network Cable
1
Advertisement
Table of Contents
Related Manuals for Inspire NS1002-1CH
Summary of Contents for Inspire NS1002-1CH
- Page 1 2 x Batteries Introduction The NS1002-1ch series is designed to control a typical Combi Boiler setup. It can switch a single output channel. The central heating channel is switched on and off in response to commands from the supplied Wireless Thermostat.
-
Page 2: Specifications
Also, the radio can be adversely affected by large metal objects such as your boiler, radiators and mirrors. For best performance, ensure that your units are placed at least 1 metre away from such objects. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk... - Page 3 The Relay Module is positioned away from metal objects. The Gateway is positioned centrally between the Thermostat and Relay Module. The Room Thermostat has been positioned to avoid the staircase. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390...
- Page 4 Do you have a valid internet connection? Check by plugging in another device. • Unplug both the Router and the Gateway. Wait 30 seconds, then plug the router back in. Wait 2 minutes, then plug our Gateway back in. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390...
- Page 5 2 device and does not require an earth. Ensure that you do not break earth continuity to the rest of the circuit. You may need to join the existing earth leads together using a terminal strip. Ensure that the circuit is protected by a 3 amp fuse. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk...
-
Page 6: Wiring Diagrams
4 screws. Before putting on the front cover, we suggest that you test the unit for correct operation. Wiring Diagrams Volt Free fig. 1 Programmer Mains Voltage fig. 2 Programmer Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390... - Page 7 ° Wall mount screws are the correct size Hold the room thermostat in place and lightly tighten the screws underneath to secure the unit – these screws only need the lightest of pressure and must not be over tightened Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk...
-
Page 8: Testing The System
Once you have ascertained that the unit is functioning correctly, push the front cover over the Relay Module until it clips into place. Finally remove the protective film from the cover. Please leave this installation manual with the user. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk... - Page 9 (CH) to pair the central heating channel to a thermostat, this will start the light flashing, • Press and hold the ‘S’ and ‘-’ keys on the Room Thermostat until the RF indicator in the lower left hand corner starts to flash. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390...
-
Page 10: Wiring Conversions
POTTERTON EP2000, EP3000 RANDALL 702 SALUS EP200 SMITHS IND. CENTROLLER 1000 N SWITCHMASTER 800, 805, 900, 9000, 9001 Table 1 Where “Link” is specified, join terminals L2 and 1 together with a link wire. Inspire Home Automation www.inspirehomeautomation.co.uk contact@inspirehomeautomation.co.uk 01202 798390...
