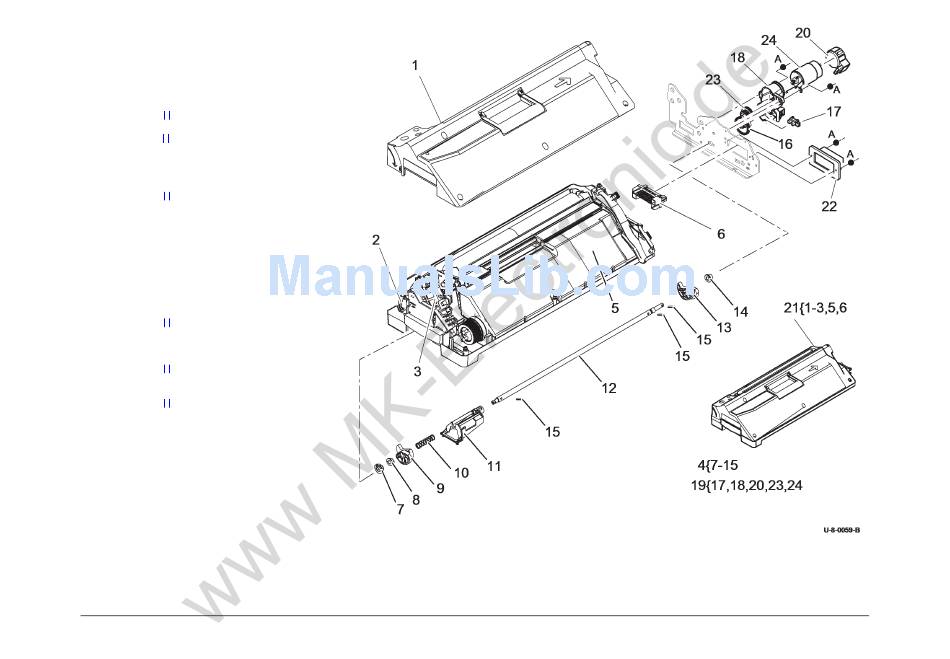

PL 94.10 Cleaning Unit

Item Part Description
1 – Cleaning unit lid (P/O PL 94.10
Item 21)
2 – Return reservoir pump (P/O PL
94.10 Item 21)
3 – Delivery reservoir pump (P/O PL
94.10 Item 21)
4 020K20530 Cam shaft assembly
5 – Reservoir (P/O PL 94.10 Item 21)
6 114E24380 Connector 12 pin (REP 91.33)
7 – Thrust washer (P/O PL 31.11 Item
23)
8 – Bushing roller (P/O PL 31.11 Item
23)
9 008E08570 Cam front
10 – Spring lock cam (P/O PL 94.10 Item
4)
11 – Mount lock cam (P/O PL 94.10 Item
4)
12 – Shaft (P/O PL 94.10 Item 4)
13 – Cam rear (P/O PL 94.10 Item 4)
14 – Bushing shaft (P/O PL 94.10 Item
4)
15 – Pin dowel (P/O PL 94.10 Item 4)
16 – Lift gear (Not spared)
17 130E12940 Cleaning unit home sensor (Q94-
105) (REP 91.27)
18 – Gear train housing (P/O PL 94.10
Item 19)
19 020K20543 Cleaning unit motor assembly (See
NOTE 1)
20 – Encoder (P/O PL 94.10 Item 19)
21 108R00989 Cleaning unit (complete) (REP
94.1)
22 – Connector housing (Not spared)
23 – Drive gear (P/O PL 94.10 Item 19)
24 – Cleaning unit motor (P/O PL 94.10
Item 19)
NOTE: 1: Drum cleaning motor assembly is mounted onto
rear frame
NOTE: .2: A Cleaning unit handle kit is also available, refer to
PL 94.20 Item 27.
Xerox® ColorQube® 9303 Family
November 2015
5-105
Parts Lists
PL 94.10
