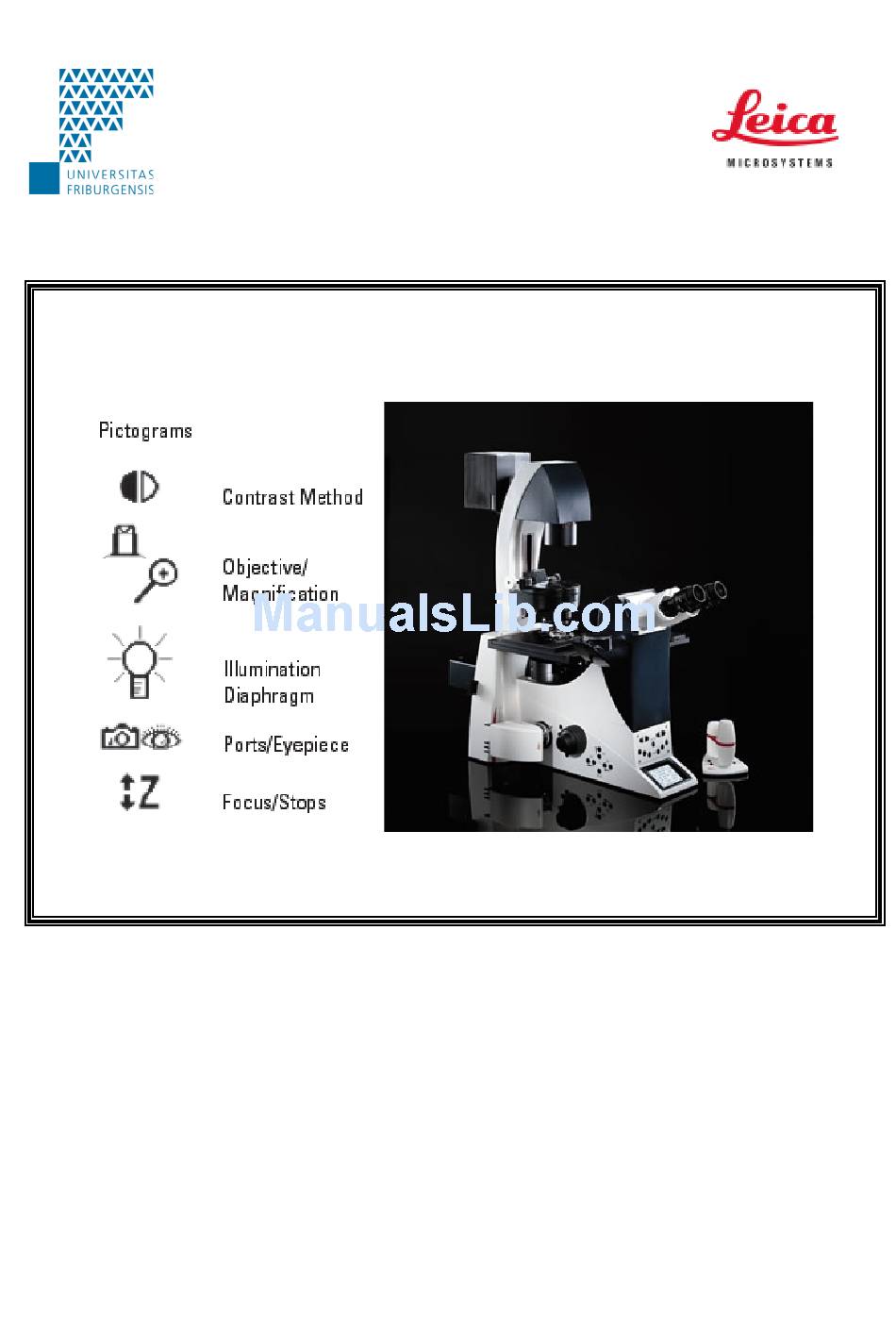

DMI6000 instructions
The screen is not tactile!
On the right!!!
Fribourg, March 2009
Author: Sylvie DUCREUX
Your attention please: this manual is only a light version of the complete DMI6000
operating manual from Leica, if you need more details, please feel free to read it, one
copy is located inside our cupboard or ask me for the pdf file.
Advertisement
Related Manuals for Leica DMI6000
Summary of Contents for Leica DMI6000
- Page 1 Your attention please: this manual is only a light version of the complete DMI6000 operating manual from Leica, if you need more details, please feel free to read it, one copy is located inside our cupboard or ask me for the pdf file.
- Page 2 DMI6000 instructions March 2009 Motorized platform = Z stage SmartMove = the remote control element 1. Move in x-direction 2. Move in y-direction 3. Focus (= Z direction; but you’re free to use the regular wheel) 4. Height adjustment (you must not play with it, thanks!) 5.
- Page 3 DRY/IMMERSION then use the button or to rotate the obejective turret to higher or smaller magnification Unlike the DM6000 screen, the DMI6000 Leicascreen is NOT tactile!!! 2) or directly turning the objective turret NOT RECOMMENDED!!!! Avoid switching manually the objectives, as you may inadvertently rotate the objective ring, or even worse, the objective itself.
- Page 4 Cubes can be exchanged by opening the drawer on the microscope right side. If you don’t know how to do it, don’t try! Ask for help! (or see detailed protocol in the DMI6000 operating manual) Created by Sylvie Ducreux Page 4...
