Tankless Electric Booster
Heater
Available up to 54 KW in Single or Three Phase Voltages
The Hubbell Model JTX is designed for use with conveyor and flight type dish machines only.
This product may not operate as expected if the dish machine is other than a conveyor or flight type.
Features
Heavy Duty Construction
■
� Constructed with high grade materials
to ensure long operating life
� Turn-Key package is simple to specify and easy
to install and operate
� Factory wired electrical controls provide trouble-free
installation and operation
Advanced Design
■
� Engineered specifically for use in commercial
kitchens
� Wide selection of sizes to meet the needs of all
dishmachine manufacturers
� Compact wall mount design saves precious floor
space
� Digital display provides clear indication of set point
temperature and fault conditions
High Efficiency
■
� On demand heating provides environmentally
friendly low cost operation
� Instantaneous design essentially eliminates stand-
by heat loss and significantly lowers operating costs
compared to traditional tank type booster heaters
� Over 98% efficient and saves over 2300 kW hours
per year compared to tank type booster heaters

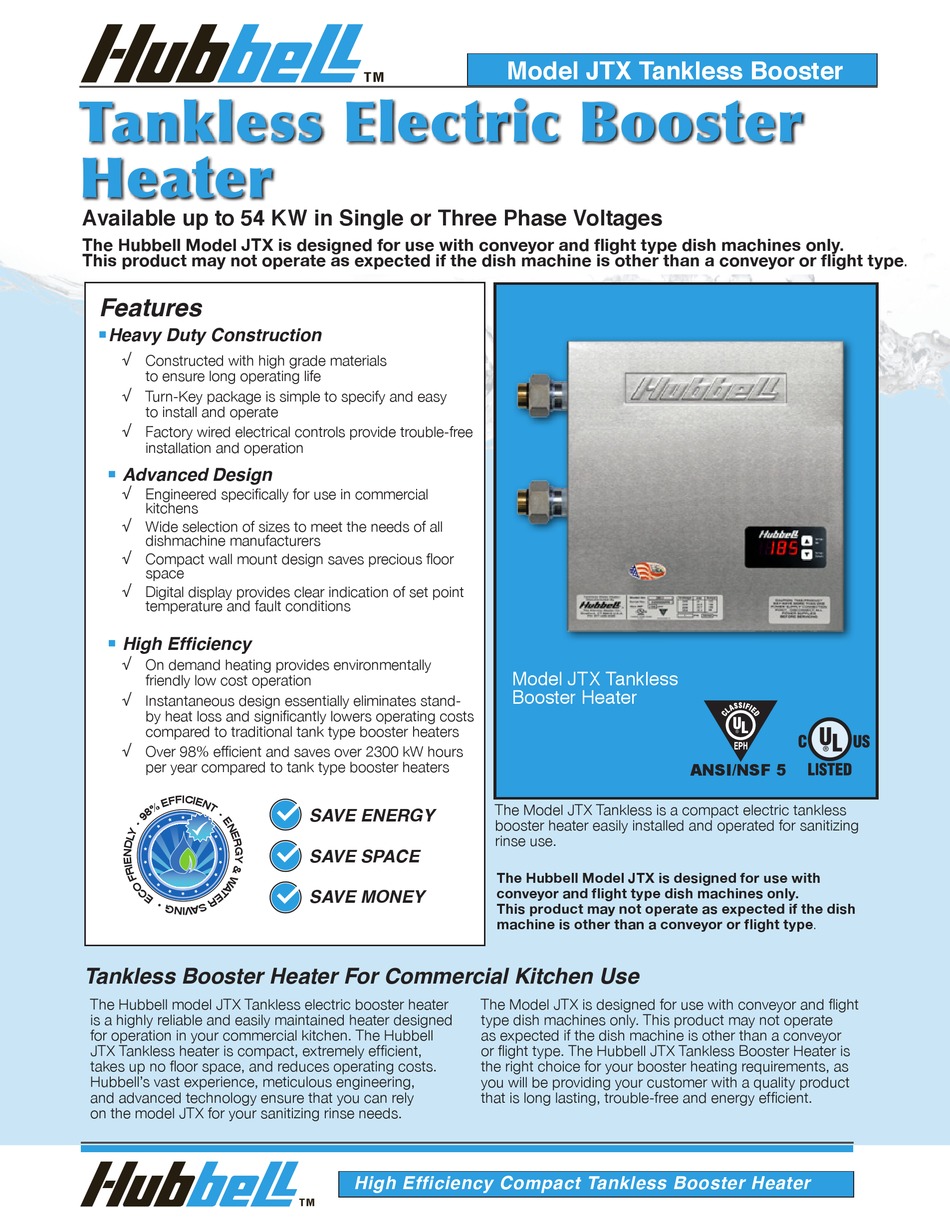

Tankless Booster Heater For Commercial Kitchen Use
The Hubbell model JTX Tankless electric booster heater
is a highly reliable and easily maintained heater designed
for operation in your commercial kitchen. The Hubbell
JTX Tankless heater is compact, extremely efficient,
takes up no floor space, and reduces operating costs.
Hubbell's vast experience, meticulous engineering,
and advanced technology ensure that you can rely
on the model JTX for your sanitizing rinse needs.
✓
SAVE ENERGY
✓
SAVE SPACE
✓
SAVE MONEY
High Efficiency Compact Tankless Booster Heater
Model JTX Tankless Booster
Model JTX Tankless
Booster Heater
The Model JTX Tankless is a compact electric tankless
booster heater easily installed and operated for sanitizing
rinse use.
The Hubbell Model JTX is designed for use with
conveyor and flight type dish machines only.
This product may not operate as expected if the dish
machine is other than a conveyor or flight type.
The Model JTX is designed for use with conveyor and flight
type dish machines only. This product may not operate
as expected if the dish machine is other than a conveyor
or flight type. The Hubbell JTX Tankless Booster Heater is
the right choice for your booster heating requirements, as
you will be providing your customer with a quality product
that is long lasting, trouble-free and energy efficient.
ANSI/NSF 5
Advertisement
Table of Contents
Related Manuals for Hubbell JTX011
Summary of Contents for Hubbell JTX011
- Page 1 Available up to 54 KW in Single or Three Phase Voltages The Hubbell Model JTX is designed for use with conveyor and flight type dish machines only. This product may not operate as expected if the dish machine is other than a conveyor or flight type.
-
Page 2: How It Works
Hubbell tankless booster heater uses only as much power as is needed, while delivering accurate and consistent hot water temperature. Note: The Hubbell Model JTX is designed for use with conveyor and flight type dish machines only. This product may not operate as expected if the dish machine is other than a conveyor or flight type. -
Page 3: Technical Features
All Hubbell tankless water heaters, including all 3 phase models, are engineered to operate as a balanced load and operate at 0.999 Power Factor. All Hubbell 3 phase models are designed for 3 wire (3 live, 1 ground) and 4 wire power systems and draw equal current across all conductors to maintain the power integrity of the users electrical system. - Page 4 Note: • Chart indicates three element (3) and two element (2) model types • he Hubbell Model JTX is designed for use with conveyor and flighttype dish Warm Inlet 16" 17" machines only. This product may not operate as expected if the dish machine is other than a conveyor or flight type.
-
Page 5: Metric Conversions
• Unshaded flows specify Base Model JTX, shaded flows must specify Base Model JHX due to flows exceeding 8 GPM. • he Hubbell Model JTX is designed for use with conveyor and flight type dish machines only. This product may not operate as expected if the dish machine is other than a conveyor or flight type. -
Page 6: Installation Diagram
= 380-3-50/60 Example: JTX024-3T4 = 415-3-50/60 = 440-3-60 A Hubbell tankless electric booster heater rated at 24 KW to provide = 480-3-60 ° 246 GPH at a 40 F rise and powered with 480 volt, three phase, 60 Hz. = 600-3-60... - Page 7 Tankless Booster Heater Dishmachine Sizing Chart The Hubbell Model JTX tankless booster heater is designed for use with conveyor and flight type dishmachines. If the dishmachine is not listed, or if the application is other than a conveyor or flight type dishmachine, please contact the factory for assistance.
- Page 8 WARRANTY Hubbell shall warranty all electrical components against defects in workmanship and material including labor for a period of one (1) year from date of start-up, and the heating chamber (no labor) for a full five (5) years from date of start- up, provided that the unit is started within three (3) months of date of shipment and installed and operated within the scope of the heater's design and operating capability.
