NAD T562 Owner's Manual

Nad electronics international owner's manual dvd / cd / mp3 player t562
Hide thumbs Also See for T562:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
T562
®
DVD / CD / MP3 Player
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T562 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NAD T562

Summary of Contents for NAD T562

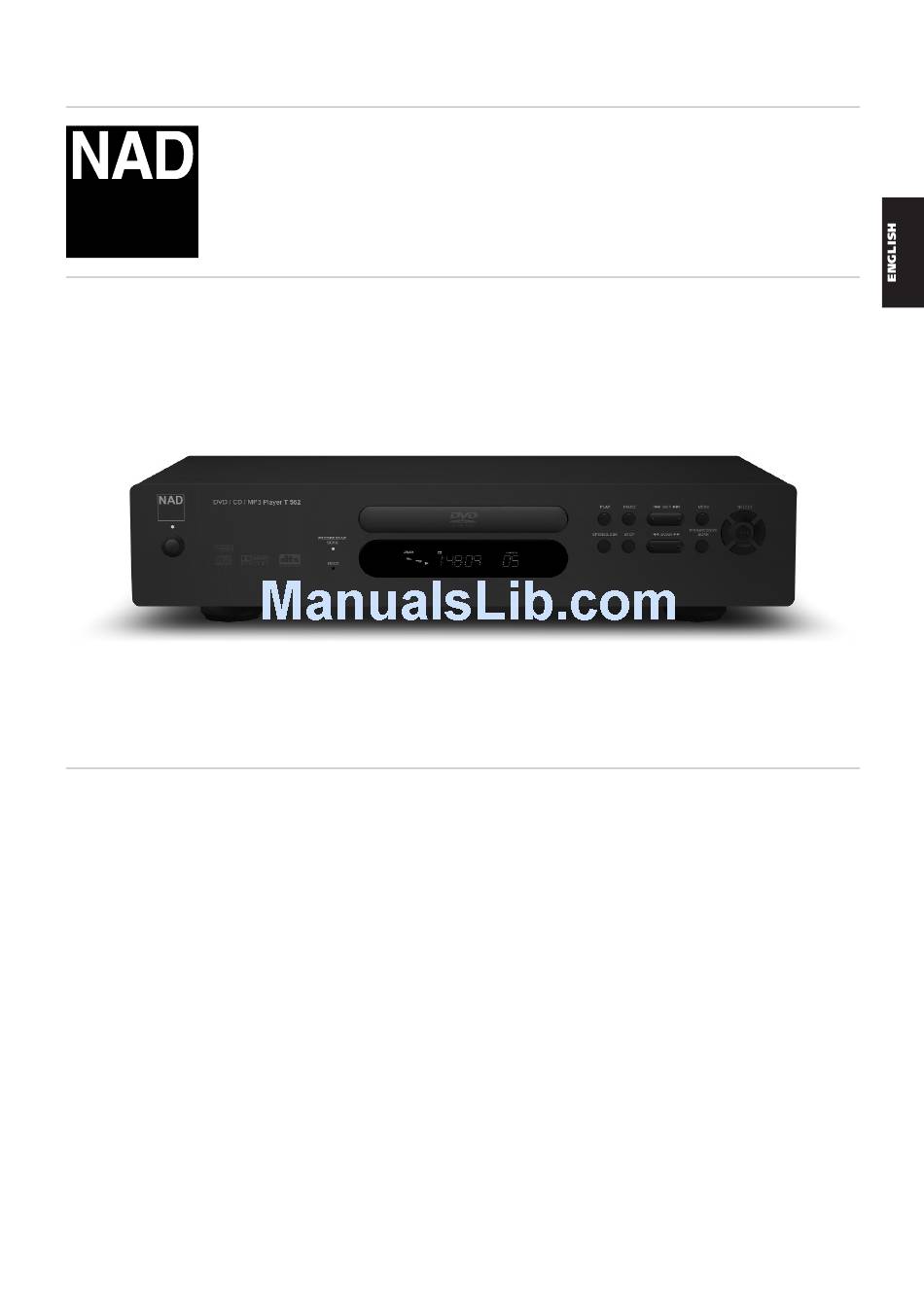

  • Page 1 T562 ® DVD / CD / MP3 Player Owner’s Manual...

  • Page 2: Introduction

    PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE T562 is not an auto voltage DVD player. Connect only to the prescribed AC outlet, i.e., 120V 60Hz or 230V 50Hz. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new DVD player are located on the back of the DVD player cabinet.

  • Page 3: Table Of Contents

    Operation Of The T562 With The Remote Control ....... . .

  • Page 4: Identification Of Controls

    Identification of Controls FRONT PANEL 1 Power button and on/standby/off indicator 2 PROGRESSIVE SCAN indicator 3 DVD tray 4 PLAY button 5 PAUSE buttons 6 SKIP buttons 7 MENU button DISPLAY WINDOW 1 DVD indicator 2 VCD indicator 3 PBC indicator for VCD 4 MP3 indicator 5 DTS indicator 6 DOLBY DIGITAL indicator...

  • Page 5: Rear Panels

    The 12V-IN TRIGGER allows you to have an external 12V signal to turn ON the NAD T562 from standby. This 12V signal must be a continuous 12V signal in order to keep the T562 in the ON state. Once you remove the 12V signal the T562 will return to standby.
  • Page 6 The 12V-IN TRIGGER allows you to have an external 12V signal to turn ON the NAD T562 from standby. This 12V signal must be a continuous 12V signal in order to keep the T562 in the ON state. Once you remove the 12V signal the T562 will return to standby.

  • Page 7: Preparing The Remote Control

    NOTES ON THE REMOTE CONTROL • Do not expose the remote sensor of the T562 to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the T562 with the remote control.

  • Page 8: Remote Control

    Identification of Controls REMOTE CONTROL 1 POWER ON, POWER OFF 2 SETUP 3 Transport control keys OPEN/CLOSE, STOP, PAUSE, STEP, PLAY, SKIP, SCAN, SLOW 4 ENTER and navigation buttons 5 RETURN 6 TITLE, MENU 7 DISPLAY 8 CLEAR 9 PROGRAM, CHECK 10 REPEAT DVD3 11 REPEAT A-B...

  • Page 9: Operation Of The T562 With The Remote Control

    11 The REPEAT A-B button is used to repeat a specific start to stop section of an audio CD or DVD/VCD. During play mode of the media, press the button once to store the start point of the T562 in memory.

  • Page 10: Operation

    • Depending on the DVD disc, some operations may be different or restricted. Refer to the jacket or case of the disc you are playing. • Do not switch the S-Video switch on the back of the T562 when the T562 is in the ON position. Doing so may result in poor picture quality.

  • Page 11: Special Playback

    Resume function may not be available on some DVD/VCD discs. STILL PICTURE (PAUSE) Press PAUSE during playback. For a DVD, the T562 will be placed in the still picture mode. For a CD the player will be placed in the pause mode.

  • Page 12: Special Playback

    NOTE The DVD player does not play back sound during the high-speed reverse and forward playback of DVD videodiscs. However, the T562 player plays back sound during fast forward or fast reverse playback of audio CDs. PLAYING IN SLOW-MOTION (DVD ONLY) Press the SLOW buttons during playback.

  • Page 13: Osd Operation

    DISPLAY/TITLES/MENUS/SUBTITLES Examples of GUI (Graphical User Interface) MENU Icons (The screens may differ depending on the disc contents.) OPERATION USING MENU ICONS Press DISPLAY during playback [TV screen] DVD GUI To show the current title number, press the DISPLAY button, and navigate to the desired title number or type in the numeric number directly and press ENTER.

  • Page 14: Viewing From Another Angle

    Operation VIEWING FROM ANOTHER ANGLE Some DVDs may contain scenes, which have been shot simultaneously from a number of different angles. For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.) 1 Press ANGLE during playback.

  • Page 15: Storing Markers In Memory

    Storing a MARKER in the T562’s memory is similar to marking your page in a book. It allows you to quickly return to any point on the disc. 1 Press MARKER during play at the starting point to be viewed (listened to) again Indicates 1/9 is stored in the memory.

  • Page 16: Random Play

    Operation RANDOM PLAY (CD) 1 Press RANDOM during normal playback or stop mode. The T562 automatically starts random playback and the PROG indicator will appear in the T562’s display. 2 To resume normal playback, press RANDOM. NOTE • This function only works with audio CD discs. Random does not work with DVD movies. You can playback titles or tracks in random order.

  • Page 17: Playback Audio With Cd, Vcd, And Dvd

    1 Press AUDIO during play. 2 Press AUDIO repeatedly until the desired sound is selected. 1 Press AUDIO during play. 2 Press AUDIO repeatedly until the desired sound is selected. 1 Press AUDIO during play. Number of the audio soundtrack language being played back. 2 Press AUDIO repeatedly until the desired language (or encoding method, channel number) is selected.

  • Page 18: Setup

    Refer to the owner’s manual of your audio equipment as well. Depending on your Dolby Digital surround sound decoder, the decode rate may be 96 or 48K. When you connect the T562 to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

  • Page 19: Dolby Pro Logic Surround Sound

    Refer to the owner’s manual of your audio equipment as well. Depending on your Dolby Digital surround sound decoder, the decode rate may be 96 or 48K. When you connect the T562 to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

  • Page 20: 2-Channel Digital Stereo Sound

    • Refer to the owner’s manual of your receiver as well. • Before you connect the T562 to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

  • Page 21: Dts Sound

    DTS SOUND In order to enjoy DTS sound your A/V Receiver or processor must be equipped with a DTS Decoder. The digital output of the T562 must be set to Analogue Off and the disc must have a DTS soundtrack. There is no analogue output of the T562 for DTS soundtrack.

  • Page 22: Connecting To An Analogue Stereo System

    • Refer to the owner’s manual of your receiver as well. • Before you connect the T562 to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

  • Page 23: Connecting To A Tv Directly

    • Refer to the owner’s manual of your receiver as well. • Before you connect the T562 to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

  • Page 24: Initial Setup Settings

    Setup INITIAL SETUP SETTINGS The player can always be operated under the same conditions (especially with DVD discs), once the initial settings have been completed. The settings will be retained in the memory until they are changed, even if the power is switched off. 1 Press SETUP in the stop or playback mode.

  • Page 25: Selecting Video Display Mode

    SELECTING VIDEO DISPLAY MODE To select the appropriate screen type according to your TV set, one selects the SETUP menu form the remote. Chose ‘Video’, ‘Display Mode’, then the three choices that best fit your TV set. 1 From the drop-down menu of the OSD screen, use the navigation arrows to select ‘Video’ and press ENTER on the remote.

  • Page 26: Initial Setup Settings

    The ‘Auto’ setting will detect automatically the media being played and display it. The other two settings ‘NTSC’ and ‘PAL’ can be selected to force the output of the T562 to the desired format. For example one can load a PAL media and display it in the NTSC format. Similarly one can load an NTSC media and display it in the PAL format.

  • Page 27: Reference

    • Do not use any type of solvents such as thinner, benzene, commercially available cleaners or anti- static spray for vinyl LPs. They may damage the disc. • The T562’s OSD may display “ERROR: DISC MINOR - CLEAN ME”. If it does, clean the disc as mentioned above.

  • Page 28: Playable Discs

    Region Management Information: This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play that disc.

  • Page 29: Table Of Languages And Their Abbreviations

    Enter the appropriate code number in the Settings’ drop-down-menu, ‘Other’ for “Audio”, “Subtitle”, “Menu” and/or “Text”. Be aware that this is a media specific feature that may not be available for all DVDs and VCDs. Code Language Code 6565 Afar 7079 6566 Abkhazian...

  • Page 30: Troubleshooting

    • Plug the power cord into the wall outlet securely. • Insert a disc (Check that the DVD or VCD indicator in the T562’s display is lit). • Select the appropriate video input mode on the TV so that the picture from the DVD player appears on the TV screen.

  • Page 31: Specifications

    Video DAC RGB-10 Bit Video output Composite Video S-Video (Y/C) Component Video (Y/Pr/Pb) - US Version Euro SCART with RGB & Composite - Euro Version Progressive scan (NTSC only) Digital Zoom x2,x4,x8,x16,x32, Still & Moving Picture TV Type Setup PAL / NTSC Audio DAC 192 KHz/24 Bit MPEG-2 Multi channel...

  • Page 32: Copyright Information/Macrovision Product Notice

    CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF T562 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE STANDARD DEFINITION INTERLACE OUTPUT.
  • Page 33 Reference NOTES...
  • Page 34 ©2002 NAD ELECTRONICS INTERNATIONAL A DIVISION OF LENBROOK INDUSTRIES LIMITED All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International T562 Manual 06/02...
