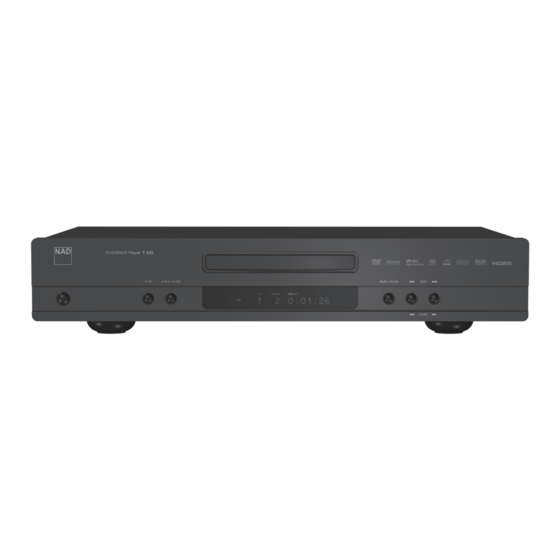

- Page 1 T 535 ® DVD / SACD Player Owner’s Manual Manuel d’Installation Manual del Usuario Manuale delle Istruzioni Bedienungsanleitung Gebruikershandleiding Bruksanvisning Инструкция по эксплуатации T535_eng_OM_v07.indd 1 16/7/07 20:36:40...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Save theSe inStructionS for later uSe. follow all warningS and inStructionS marked on the audio equipment. 1 read instructions - All the safety and operating instructions should be read before the product is operated. 2 retain instructions - The safety and operating instructions should be retained for future reference. -
Page 3: Fcc Warning
Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the user’s authority to operate this equipment. caution regarding placement To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) that is equal to or greater than shown below. -
Page 4: Notes On Environmental Protection
Serial no. : ........NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited... -
Page 5: Table Of Contents
T 535. One more thing: We urge you to register your T 535 ownership on the NAD Worldwide Web site: http://NADelectronics.com/warranty... -
Page 6: Introduction
Though the T 535 is among the most technically sophisticated DVD/SACD players, we worked hard to make it one of the most musically transparent components available as well - this is what we mean by NAD’s “Music First” design philosophy. Here are just a few examples •... -
Page 7: Identification Of Controls
1 power: Press this button to switch ON the T 535. The Standby LED indicator will turn from amber to blue and illuminate the VFD. Pressing the power switch again turns the unit back to standby mode. The T 535 can also be switched ON from standby mode by pressing the [STOP/OPEN] or [PLAY] button on the front-panel as well as on the remote control. -
Page 8: Rear Panel
4 ir in: This input is connected to the output of an IR (infrared) repeater (Xantech or similar) or the IR output of another component to allow control of the T 535 from a remote location. Most NAD products with IR OUT are fully compatible with the T 535. -
Page 9: Dvd 9 Remote Control
ON – Switches DVD Player ON AUDIO – Selects an audio language SUBTITLE – Selects a subtitle language MULTI/CH – Switch between multichannel and stereo channel REPEAT – Repeat chapter, track, title, all RPT A-B – Repeat sequence RANDOM – Plays tracks in random mode VIDEO OUT –... -
Page 10: Vacuum Fluorescent Display
IDENTIFICATION OF CONTROLS vacuum fluoreScent diSplaY 1 p. Scan indicator: Illuminates when progressive scan function is activated. 2 plaYback mode indicators: Display the applicable icon for the selected playback mode. 3 decoder indicators: Display the applicable icon for the selected internal decoder. -
Page 11: Setup
You may operate the T 535 DVD/SACD Player from its front panel or via the DVD 9 remote control. Since the remote will be the primary controller for most cases, we will focus on remote-controlled operations. Be sure also to read the section, “Front Panel”. -
Page 12: Operation
OPERATION uSing the t 535 – general Setup menu The Setup Menu allows one to customize the operation of the T 535. If the factory defaults do not suit your taste, you will need to use the setup menu to configure the T 535 yourself. To access and navigate through the Setup Menu selections, please refer to and follow the directions stated in the above section about “Navigating the Setup Menu OSD and Making Changes. -
Page 13: Screensaver
SCREENSAVER When you set [Screen Saver] to [On], a screen saver in the form of an NAD logo appears when you leave the T 535 for fifteen minutes at Stop/Resume mode or 30 minutes at Pause mode. Select [Off ] to disable the screen saver function. -
Page 14: Using The T 55 - Audio Setup Menu
OPERATION uSing the t 535 – audio Setup menu AUDIO SETUP MENU ANALOG OUTPUT Depending on the disc format, analog output can be setup to match the playback capability of the T 535. Stereo : Change output to stereo delivering 2-channel audio only. multi-channel : Connected to a multi-channel A/V receiver with 6 channel inputs, the T 535 performs DTS decoding or Dolby Digital 5.1- channel decoding when applicable. -
Page 15: Using The T 55 - Speaker Setup Menu
SPEAKER SETUP MENU SIZE Select a speaker that you want to adjust. Press Small or Off ). large : If you have connected the system to a speaker with a low frequency of 100Hz or below, select [Large]. If you have not connected a subwoofer, always select [Large] for Front speaker (L/R). -
Page 16: Level
OPERATION uSing the t 535 – Speaker Setup menu LEVEL From [Speaker] menu, scroll to the [Level] option to setup the volume levels of the individual speakers at a range of 0dB to -12dB. Press to set the desired volume levels for Front L, Center, Front R, Surround L and Surround R speakers or Subwoofer. -
Page 17: Using The T 55 - Video Setup Menu
VIDEO SETUP MENU TV DISPLAY Select [4:3 Pan Scan] or [4:3 Letter Box] when a standard 4:3 TV is connected. : Letter Box : Displays a wide picture with bands on the upper and lower portions of the screen. : Pan Scan :Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. -
Page 18: Scart Video Out (European Models Only)
OPERATION uSing the t 535 – video Setup menu SCART VIDEO OUT (EUROPEAN MODELS ONLY) SCART carries both composite video and RGB signals. One could select which kind of video output signal will be routed over SCART OUT. cvbS : Select to output composite video signals. rgb : Split the signal into the three fundamental colors Red, Green and Blue (RGB) resulting to greater picture resolution and elimination of artifacts associated with traditional composite video signals. -
Page 19: Using The T 55 - Hdmi Setup Menu
HDMI SETUP MENU ABOUT HDMI HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD Players, Set-Top Boxes and other AV devices. HDMI was developed to provide the technologies of HDCP (High Definition Contents Protection). -
Page 20: Using The T 55 - Disc Setup Menu
OPERATION uSing the t 535 – diSc Setup menu DISC SETUP MENU AUDIO/SUBTITLE/DVD MENU LANGUAGE Depending on the DVD media, only those [AUDIO], [Subtitle] and [DVD Menu] languages recorded on the DVD media are available. When a language is chosen, it will become the default setting unless the DVD media overrides the settings. -
Page 21: Using The T 55 - Features
Depending on the media, the following are other basic features of the T 535 DVD/SACD player. Use the DVD 9 remote control to make use of these features. TITLE AND MENU The [TITLE] and [MENU] buttons are used to display via OSD, the title headings and menus of the DVD and other applicable media. -
Page 22: Zoom
OPERATION uSing the t 535 –featureS ZOOM Use [ZOOM] to enlarge the video image. Press [ZOOM] during playback or still playback to activate the Zoom function. Depending on the media, each press of the ZOOM button changes the TV screen in the following sequence: ZOOM X 1.5, ZOOM X 2, ZOOM X 3 and ZOOM X 4. -
Page 23: Programming
PROGRAMMING The program function enables you to store your favorite tracks from any disc in the player memory. When programming a sequence of tracks, the T 535 must be in stop mode. To program the sequence 1. Press the DVD 9’s [PROGRAM] button to enter program mode and you will be prompted to a [PROGRAM] menu. -
Page 24: Reference
REFERENCE language code liSt Use this list to input your desired language for the following settings: AUDIO/SUBTITLE/DVD MENU LANGUAGE Language code 1112 Abkhazian 1111 Afar 1116 Afrikaans 2927 Albanian 1123 Amharic 1128 Arabic Armenian 1835 1129 Assamese Aymara 1135 1136 Azerbaijani Bashkir 1211... -
Page 25: Picture Settings
Guidelines for applicable picture settings with respect to video output. european modelS onlY Picture Setting Composite Brightness ✔ Contrast ✔ Sharpness Mid ✔ Sharpness High ✔ ✔ Gamma ✔ Chroma level ✔ Chroma delay ✔ True Life north america modelS onlY Picture Setting Composite Brightness... -
Page 26: Troubleshooting
REFERENCE troubleShooting condition No power. The power is on, but the DVD player does not work. No picture. No sound. The DVD player does not start playback. The remote control does not work properly. T535_eng_OM_v07.indd 26 poSSible cauSeS • The power cord is disconnected. •... -
Page 27: Specifications
SYSTEM OUTPUT GENERAL Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. Manufactured under License from Dolby Laboratories. - Page 28 ©2007 nad electronicS international a diviSion of lenbrook induStrieS limited All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International T 535 Manual 07/07 T535_eng_OM_v07.indd 28...
