- Page 1 T514 ® DVD / CD / MP3 Player Owner’s Manual Manuel de l'utilisateur Bedienungsanleitung Gebruikershandleiding Manual del Usuario Manuale delle Istruzioni Manual do Proprietário Bruksanvisning...
-
Page 2: Introduction
89/336/EEC, 93/68/EEC and 73/23/EEC. NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2005, NAD Electronics International, a division of Lenbrook Industries Limited NOTES ON COPYRIGHT It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. -
Page 3: Table Of Contents
Setting up the Player ........10 DVD Player Connections .......10 Audio Connection to Optional Equipment . -
Page 4: Before Use
To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location. SYMBOL USED IN THIS MANUAL... -
Page 5: Types Of Playable Discs
NOTES ON REGIONAL CODES • Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player’s regional code or the disc cannot play. • If you try to play a DVD with a different region code from your player, the message “Check Regional Code”... -
Page 6: Disc-Related Terms
Introduction BEFORE USE DISC-RELATED TERMS DVD ±R / DVD ±RW DVD -R and DVD +R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writable media, meaning the DVD content can be erased and re-recorded. -

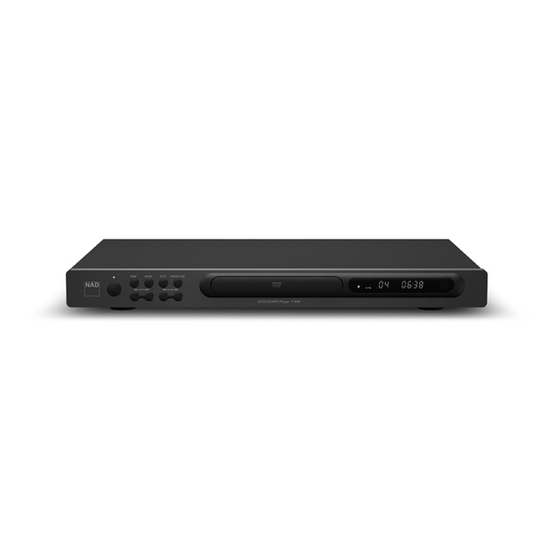

Page 7: Front Panel And Display Window
Indicates current chapter or track number S VCD CD TRK FRONT PANEL AND DISPLAY WINDOW Disc Tray Insert a disc here. T514 Shows the current status Point the DVD Player remote control here. Indicates total playing time/elapsed time Introduction Display window... -
Page 8: Rear Panel
VIDEO OUT Connect to a TV with video inputs. 12V TRIGGER IN By connecting this DVD player to another NAD audio component or system controller equipped with a 12V trigger output, you can remotely operate the T514C power ON/OFF. COMPONENT/PROGRESSIVE SCAN VIDEO OUT Connect to a TV with Y Cb/Pb Cr/Pr inputs. -
Page 9: Remote Control
Switches DVD Player ON. AUDIO Selects an audio language (DVD). SUBTITLE Selects a subtitle language. ANGLE Selects a DVD camera angle if available REPEAT Repeat chapter, track, title, all. RPT A-B Repeat sequence. RANDOM Plays tracks in random order. MARKER Marks any point during playback. -
Page 10: Installation And Setup
(See “TV Output Select” on page 14.) Video and Audio Connections to Your TV Make sure the DVD player is connected directly to the TV and not to a VCR, otherwise the DVD image could be distorted by the copy protection system. -
Page 11: Audio Connection To Optional Equipment
Amplifier equipped with 2-channel analogue stereo or Dolby Pro Logic ll / Pro Logic Connect the left and right AUDIO OUT jacks on the DVD player to the audio left and right IN jacks on your amplifier, receiver, or stereo system, using the audio cables (A). -
Page 12: Before Operation
Installation and Setup BEFORE OPERATION ON-SCREEN DISPLAY You can display the general playback status on the TV screen. Some items can be changed using the menu. To use the on-screen display: 1 Press DISPLAY during playback. 2 Press to select an item. The selected item is highlighted. 3 Press to change the setting. -
Page 13: Initial Settings
INITIAL SETTINGS By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 13 to 16. -
Page 14: Audio
Progressive Scan to On in error, you must reset the unit. First, remove the disc in the DVD Player. Next, press STOP ( ) and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analogue TV or monitor. -
Page 15: Dynamic Range Control (Drc)
You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted. If Auto Play mode is set to On, this DVD player will search for the title that has the longest playback time and then play back the title automatically. -
Page 16: Lock (Parental Control)
Installation and Setup BEFORE OPERATION LOCK (PARENTAL CONTROL) LOCK Unlock Rating Password Country Code Move DVD-V RATING Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country. -
Page 17: Operation
DVD player. 2 Turn on the audio system (if applicable) and select the input source connected to the DVD player. 3 Press OPEN/CLOSE to open the disc tray and load your chosen disc in the tray, with the playback side down. - Page 18 2 To exit still motion mode, press PLAY. DVD-V SLOW MOTION 1 Press PAUSE/STEP ( ) during playback. The DVD player will now go into PAUSE mode. 2 Use the SCAN ( ) to select the required speed: 1/8, 1/4, or...
-
Page 19: Special Dvd Features
DVD-V ZOOM Use zoom to enlarge the video image. 1 Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture. 2 Each press of the ZOOM button changes the TV screen in the sequence: 100% size ➜... -
Page 20: Operation With Audio Cd And Mp3 / Wma Disc
(see above) to ensure compatible playback. Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. NAD ELECTRONICS INTERNATIONAL has no right to grant such permission. Permission should always be sought from the... -
Page 21: Audio Cd And Mp3 / Wma Disc Features
AUDIO CD AND MP3 / WMA DISC FEATURES PAUSE 1 Press PAUSE/STEP during playback. 2 To return to playback, press PLAY, ENTER or press PAUSE/STEP again. MOVING TO ANOTHER TRACK 1 Press SKIP ( ) briefly during playback to go to the next track or to return to the beginning of the current track. -
Page 22: Programmed Playback
Operation PROGRAMMED PLAYBACK The program function enables you to store your favourite tracks from any disc in the player memory. A program can contain 30 tracks. 1 Insert a disc. Audio CD or MP3/WMA Discs: AUDIO CD or MUSIC menu appears. 2 Press PROGRAM. -
Page 23: Operation With Jpeg Disc
• Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc’s contents. If you don’t see an on- screen display after several minutes, some of the files may to select the be too large —... -
Page 24: Operation With A Dvd Vr Format Disc
Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. Maintaining the Unit The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. -
Page 25: Additional Features
SCREEN SAVER The screen saver appears when you leave the DVD player in Stop mode for about five minutes. If the Screen Saver is displayed for five minutes, the DVD Player automatically turns itself off. -
Page 26: Reference Troubleshooting
TROUBLESHOOTING Check the following guide for the possible cause of a problem before contacting service. SYMPTOM No power. The power is on, but the DVD player does not work. No picture. No sound. The DVD player does not start playback. -
Page 27: Table Of Languages And Their Codes
Language Code List Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Code Language Code Language 6566 Abkhazian 7074 Fiji 6565 Afar 7073 Finnish 6570 Afrikaans 7082 French 8381 Albanian 7089 Frisian 6577 Ameharic 7176 Galician... -
Page 28: Country Codes List
Reference COUNTRY CODE LIST Choose a country code from this list. Code Country Code Country Andorra Eritrea United Arab Emirates Spain Afghanistan Ethiopia Antigua and Barbuda Finland Anguilla Fiji Albania Falkland Islands Armenia Micronesia Netherlands Antilles Faroe Islands Angola France Antarctica France (European Argentina... -
Page 29: Specifications
GENERAL Power requirements Power consumption Dimensions (approx.) Weight (approx.) Operating temperature Operating humidity SYSTEM Laser Signal system Frequency response Signal-to-noise ratio Harmonic distortion Dynamic range OUTPUTS VIDEO OUT S-VIDEO OUT COMPONENT VIDEO OUT AUDIO OUT DIGITAL OUT (COAXIAL) DIGITAL OUT (OPTICAL) ACCESSORIES Video cable Audio cable... - Page 30 ©2005 NAD ELECTRONICS INTERNATIONAL A DIVISION OF LENBROOK INDUSTRIES LIMITED All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International T 514 Manual C Version 02/05...
