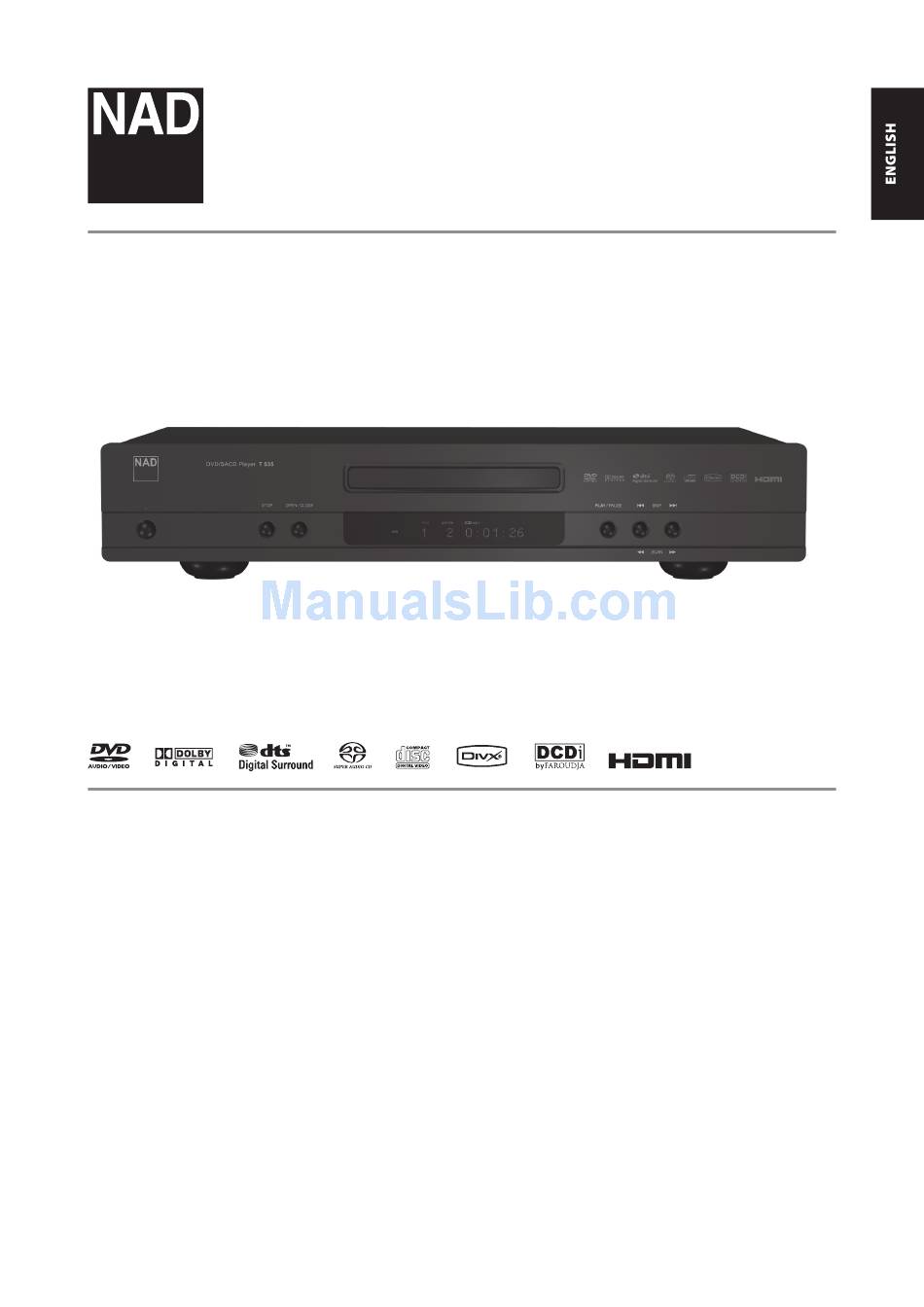

  • Page 1 T 535 ® DVD / SACD Player Owner’s Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR LATER USE. 14 Outdoor Antenna Grounding - If an outside antenna or cable system FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE is connected to the product, be sure the antenna or cable system is AUDIO EQUIPMENT.
  • Page 3 Changes or modifications to this equipment not expressly approved by CAUTION NAD Electronics for compliance could void the user’s authority to operate The T 535 employs a Laser System. To ensure proper use of this product, this equipment. please read this owner’s manual carefully and retain for future reference.
  • Page 4 BLUE – NEUTRAL BROWN – LIVE The model and serial number of your new T 535 are located on the back of the cabinet. For your future convenience, we suggest that you record these As these colors may not correspond with the colored markings identifying...

  • Page 5: Table Of Contents

    USING THE T 535 - FEATURES ........

  • Page 6: Introduction

    SAVE THE PACKAGING to be transferred between source components, processors, and TV Please save the box and all of the packaging in which your T 535 arrived. Displays in a pure digital format. • Using the high quality 12-bit 216-MHz video DAC, the T 535 ensures Should you move or otherwise need to transport your T 535, this is by far the safest container in which to do so.

  • Page 7: Identification Of Controls

    4 OPEN/CLOSE: Press this button to open and close the disc tray. When or chapter. in standby, this button will also power ON the T 535 and at the same time open the disc tray. Press and hold for more than 2 seconds to search up or down a track or chapter.

  • Page 8: Rear Panel

    AC outlet. Failure to observe this practice may cause permanent damage (Xantech or similar) or the IR output of another component to allow control of the T 535 from a remote location. Most NAD products with IR to all equipment connected via HDMI sockets. OUT are fully compatible with the T 535. 8 VIDEO OUT/S-VIDEO OUT: Connect to video input of the monitor/ 5.

  • Page 9: Dvd 9 Remote Control

    IDENTIFICATION OF CONTROLS DVD 9 REMOTE CONTROL ON – Switches DVD Player ON OFF – Switches DVD Player OFF AUDIO – Selects an audio language DIMMER - Toggle to either reduce or restore normal SUBTITLE – Selects a subtitle language VFD brightness.

  • Page 10: Vacuum Fluorescent Display

    IDENTIFICATION OF CONTROLS VACUUM FLUORESCENT DISPLAY 1 P. SCAN indicator: Illuminates when progressive scan function is 5 D.MIX indicator (DVD-Audio only): Illuminates when playing a disc activated. that allows downmixing of a multi-channel audio source. [MULTI] icon is also illuminated alongside [D.MIX] icon to indicate that the disc is of 2 PLAYBACK mode indicators: Display the applicable icon for the multi-channel audio format and can be downmixed.

  • Page 11: Setup

    USING THE T 535 ABOUT THE ON-SCREEN DISPLAY (OSD) You may operate the T 535 DVD/SACD Player from its front panel or via the DVD 9 remote control. Since the remote will be the primary controller for The T 535 employs a self-explanatory on-screen display “menu” that will most cases, we will focus on remote-controlled operations.

  • Page 12: Operation

    USING THE T 535 – GENERAL SETUP MENU SACD MODE The Setup Menu allows one to customize the operation of the T 535. If the factory defaults do not suit your taste, you will need to use the setup menu Some SACD discs contain both SACD layer and the standard CD layer.

  • Page 13: Screensaver

    SCREENSAVER DIVX REGISTRATION When you set [Screen Saver] to [On], a screen saver in the form of an NAD DivX is the name of a revolutionary new video codec which is based on the logo appears when you leave the T 535 for fifteen minutes at Stop/Resume new MPEG-4 compression standard for video.

  • Page 14: Using The T 535 - Audio Setup Menu

    Each DVD disc has a variety of audio output options. Set the player’s [Digital Out] according to the type of audio system you use. All : Select [All] if you connect the T 535’s digital OUT jack to an amplifier or other equipment with a Dolby Digital, DTS or MPEG decoder.

  • Page 15: Using The T 535 - Speaker Setup Menu

    OPERATION USING THE T 535 – SPEAKER SETUP MENU SPEAKER SETUP MENU RESET The Speaker Size settings can be reset to their initial factory settings by selecting [On] at the [Reset] option. When [On] is selected, the confirmation screen appears.

  • Page 16: Level

    OPERATION USING THE T 535 – SPEAKER SETUP MENU LEVEL SACD CONFIGURATION From [Speaker] menu, scroll to the [Level] option to setup the volume levels There are three preset speaker configurations for SACD discs. The following of the individual speakers at a range of 0dB to -12dB.

  • Page 17: Using The T 535 - Video Setup Menu

    TV TYPE PROGRESSIVE SCAN You can select either [PAL] or [NTSC] to force the output of the T 535 to the If your television is a high-definition or “digital ready” television, you may take desired format. For example one can load a PAL media and display it in the advantage of the T 535’...

  • Page 18: Scart Video Out (European Models Only)

    PICTURE SETTINGS The T 535 comes with 10 sets of picture color settings that you can define yourself. The “Picture Settings” section at the “REFERENCE” page shows a detailed guideline on applicable picture settings with respect to video output.

  • Page 19: Using The T 535 - Hdmi Setup Menu

    AV source and AV devices such as DTVs. HDMI VIDEO The resolution of your HDMI video can be adjusted with T 535 connected to an HDMI-compatible component via the HDMI jack. 480P/576P, 720P, 1080i and 1080P : Set applicable resolution depending on your TV/Monitor capability.

  • Page 20: Using The T 535 - Disc Setup Menu

    OPERATION USING THE T 535 – DISC SETUP MENU DISC SETUP MENU ANGLE MARK An angle mark display can be turned on or off when sequences recorded from different camera angles are played back. On : An angle mark is displayed continuously.

  • Page 21: Using The T 535 - Features

    OPERATION USING THE T 535 - FEATURES REPEAT Depending on the media, the following are other basic features of the T 535 DVD/SACD player. Use the DVD 9 remote control to make use of these features. TITLE AND MENU To repeat the playback of a particular track or chapter, press the T 535’s [REPEAT] key once.

  • Page 22: Zoom

    OPERATION USING THE T 535 –FEATURES ZOOM PAL/NTSC Use [ZOOM] to enlarge the video image. Press [ZOOM] during playback or At STOP mode, toggle the [PAL/NTSC] key of DVD 9 remote control to still playback to activate the Zoom function.

  • Page 23: Programming

    “CLEAR ALL” to reset the whole program sequence. the T 535 will display the file type at the VFD and a corresponding icon 3. Load up to 20 tracks into a program sequence. Press the [PLAY] button or at the menu screen.

  • Page 24: Reference

    REFERENCE LANGUAGE CODE LIST Use this list to input your desired language for the following settings: AUDIO/SUBTITLE/DVD MENU LANGUAGE Language Code Language Code Language Code Language Code Abkhazian 1112 Fiji 1620 Lingala 2224 Singhalese 2919 1111 1619 2230 2921 Afar Finnish Lithuanian Slovak...

  • Page 25: Picture Settings

    REFERENCE PICTURE SETTINGS Guidelines for applicable picture settings with respect to video output. EUROPEAN MODELS ONLY Video OUT Picture Setting Control Range Component Video Composite S-Video HDMI Interlaced Progressive Scan Brightness 0 to +6 ✔ ✔ ✔ ✔ ✔ Contrast -6 to +6 ✔...

  • Page 26: Troubleshooting

    REFERENCE TROUBLESHOOTING CONDITION POSSIBLE CAUSES POSSIBLE SOLUTIONS No power. • The power cord is disconnected. • Plug the power cord into the wall outlet securely. The power is on, but the DVD player does • No disc is inserted. • Insert a disc. (Check that the DVD or, audio not work.

  • Page 27: Specifications

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. Specifications are subject to change without notice. For updated documentation and features, please log onto www.NADelectronics.com for the latest information about T 535.
  • Page 28 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
