Connecting the mixer systems 1-17
418146 &RQQHFW#6pDQFH#WR#FRQVROH

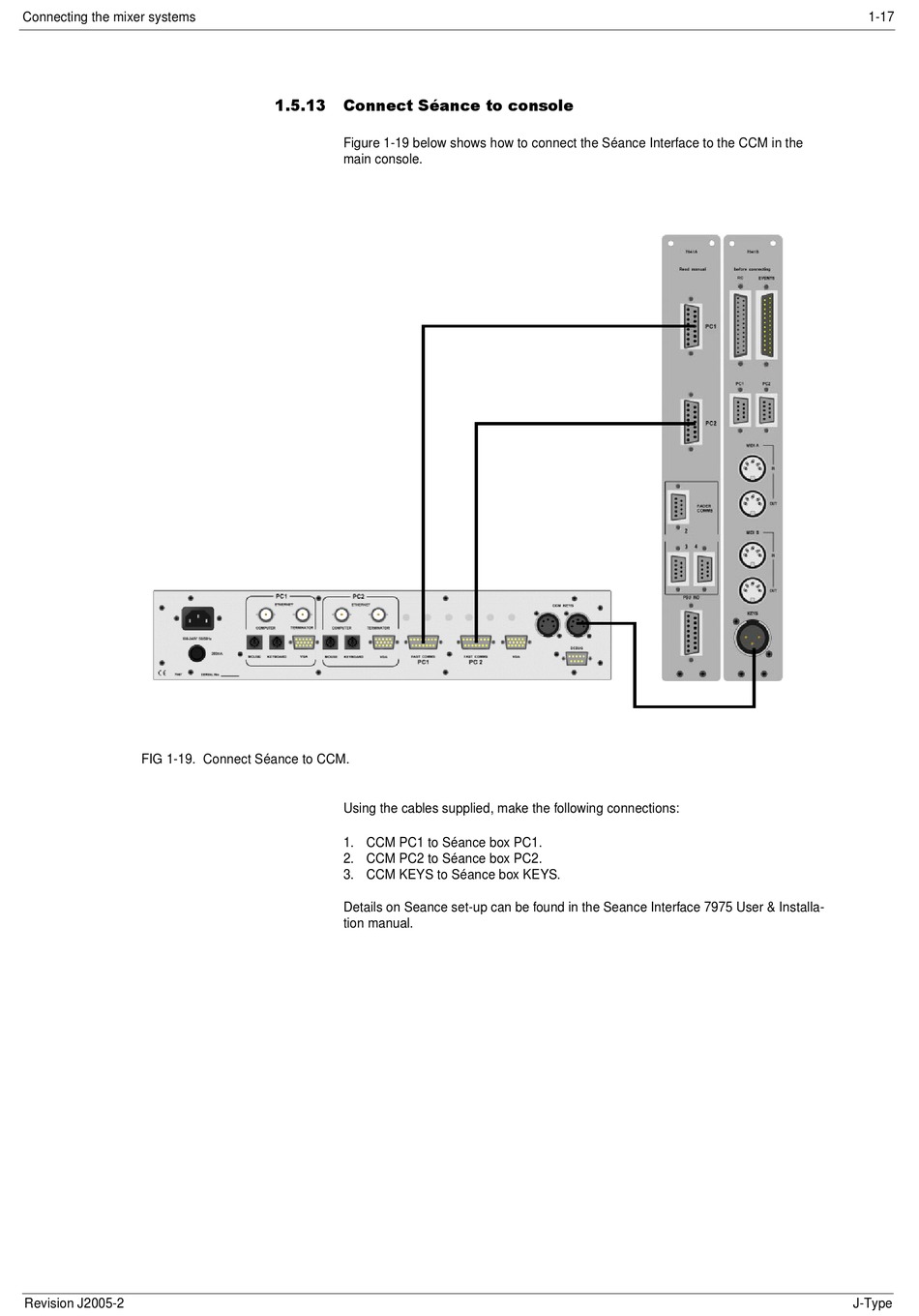

Figure 1-19 below shows how to connect the Séance Interface to the CCM in the
main console.
FIG 1-19. Connect Séance to CCM.
Using the cables supplied, make the following connections:
1. CCM PC1 to Séance box PC1.
2. CCM PC2 to Séance box PC2.
3. CCM KEYS to Séance box KEYS.
Details on Seance set-up can be found in the Seance Interface 7975 User & Installa-
tion manual.
Revision J2005-2 J-Type
