Cadac J-Type Installation & User Manual page 143

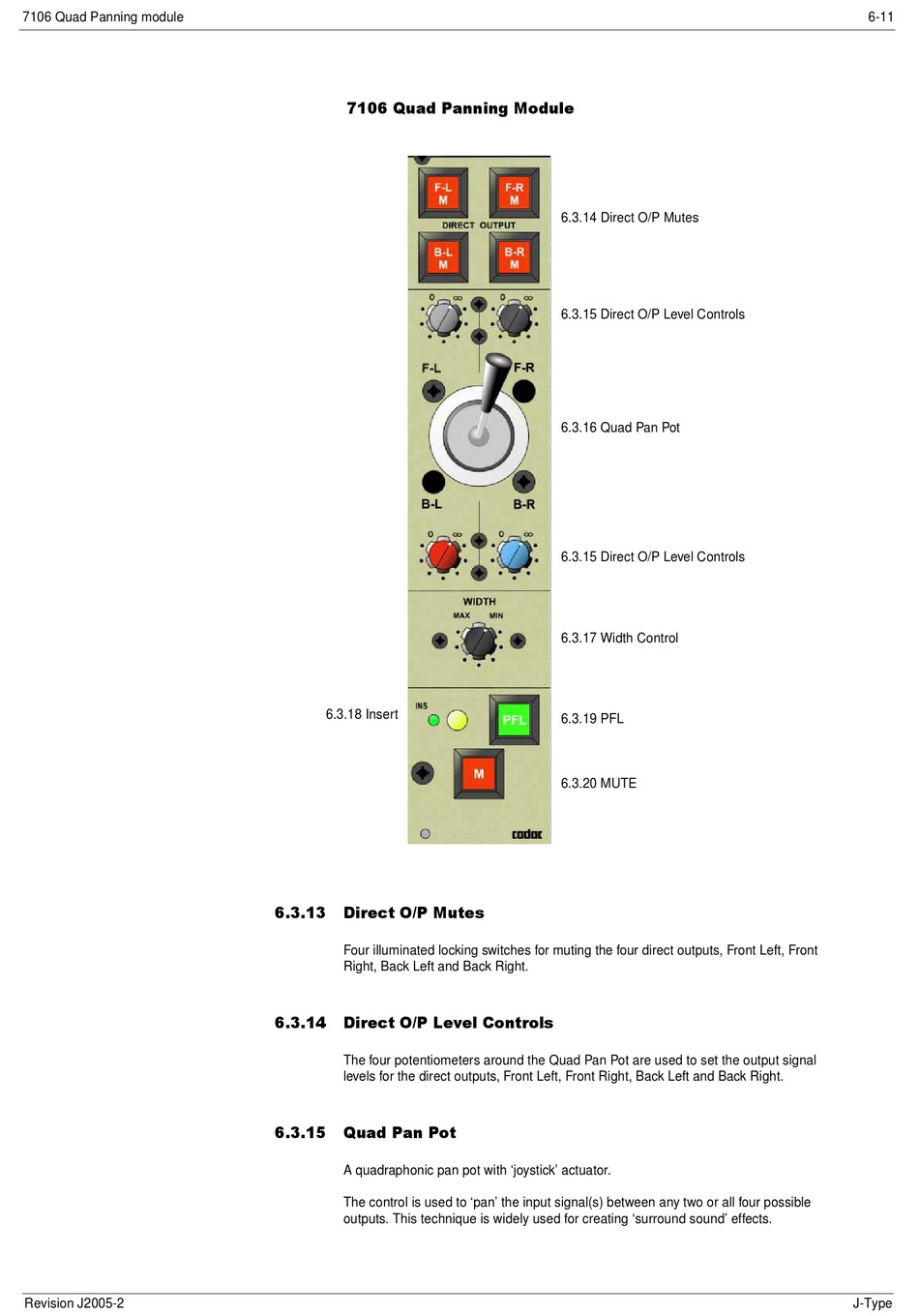

7106 Quad Panning module
Revision J2005-2
:439#4XDG#3DQQLQJ#0RGXOH
6.3.18 Insert
916146 'LUHFW#223#0XWHV
Four illuminated locking switches for muting the four direct outputs, Front Left, Front
Right, Back Left and Back Right.
916147 'LUHFW#223#/HYHO#&RQWUROV
The four potentiometers around the Quad Pan Pot are used to set the output signal
levels for the direct outputs, Front Left, Front Right, Back Left and Back Right.
916148 4XDG#3DQ#3RW
A quadraphonic pan pot with 'joystick' actuator.
The control is used to 'pan' the input signal(s) between any two or all four possible
outputs. This technique is widely used for creating 'surround sound' effects.
6.3.14 Direct O/P Mutes
6.3.15 Direct O/P Level Controls
6.3.16 Quad Pan Pot
6.3.15 Direct O/P Level Controls
6.3.17 Width Control
6.3.19 PFL
6.3.20 MUTE
6-11
J-Type
