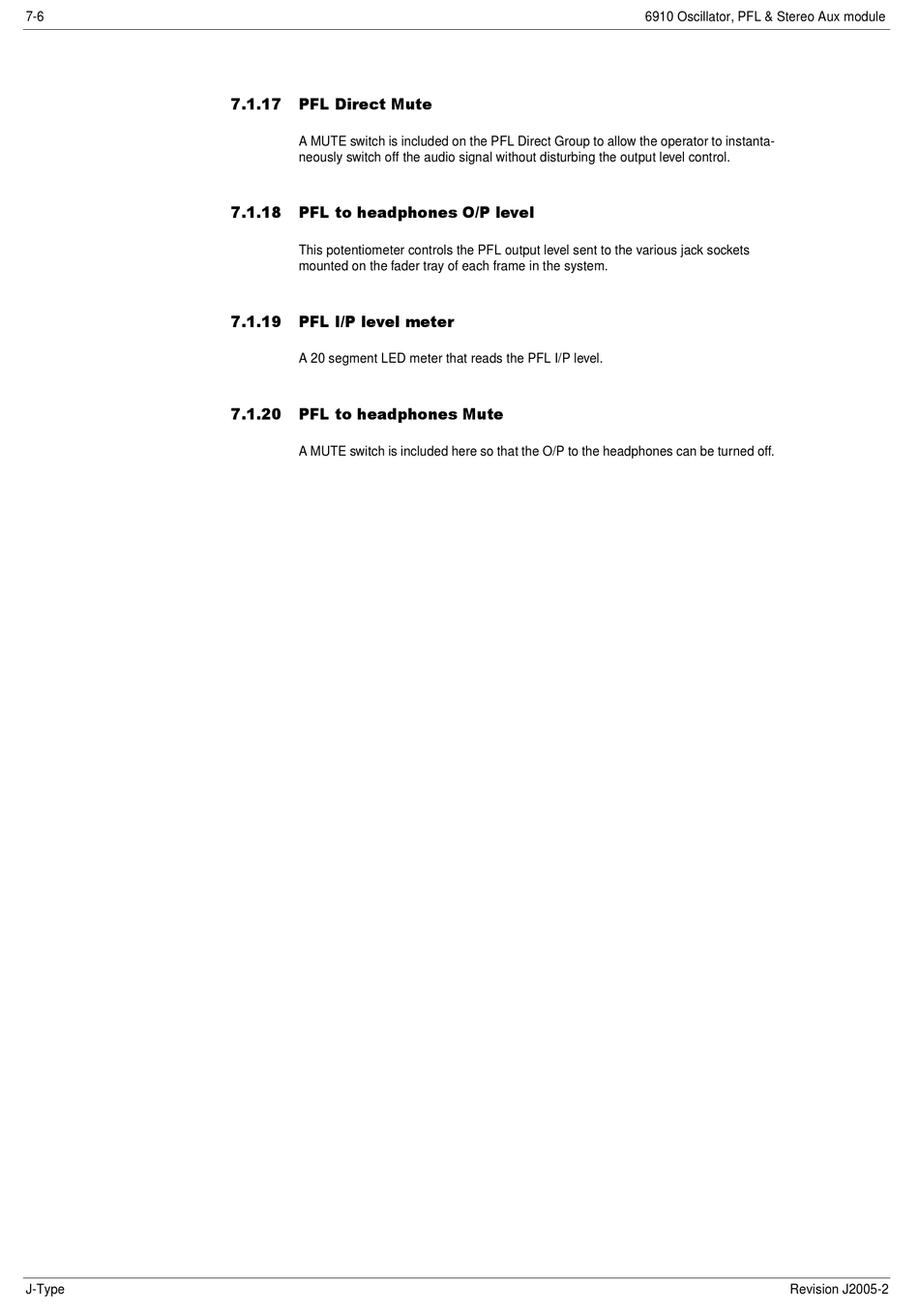

7-6
J-Type
:1414:
3)/#'LUHFW#0XWH
A MUTE switch is included on the PFL Direct Group to allow the operator to instanta-
neously switch off the audio signal without disturbing the output level control.
:1414;
3)/#WR#KHDGSKRQHV#223#OHYHO
This potentiometer controls the PFL output level sent to the various jack sockets
mounted on the fader tray of each frame in the system.
:1414<
3)/#,23#OHYHO#PHWHU
A 20 segment LED meter that reads the PFL I/P level.
:14153
3)/#WR#KHDGSKRQHV#0XWH
A MUTE switch is included here so that the O/P to the headphones can be turned off.
6910 Oscillator, PFL & Stereo Aux module
Revision J2005-2
