7-16
J-Type

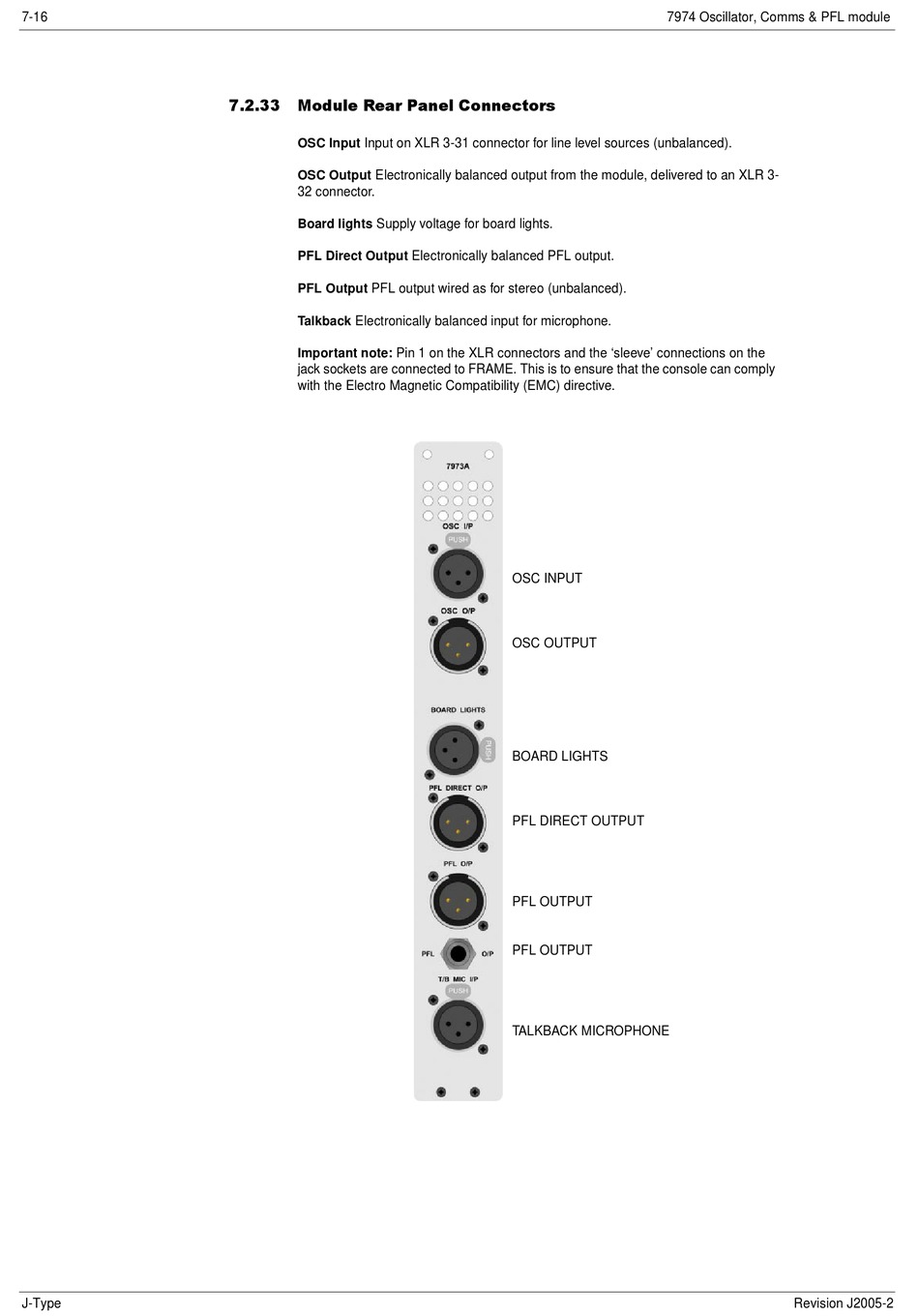

:15166 0RGXOH#5HDU#3DQHO#&RQQHFWRUV#
OSC Input Input on XLR 3-31 connector for line level sources (unbalanced).
OSC Output Electronically balanced output from the module, delivered to an XLR 3-
32 connector.
Board lights Supply voltage for board lights.
PFL Direct Output Electronically balanced PFL output.
PFL Output PFL output wired as for stereo (unbalanced).
Talkback Electronically balanced input for microphone.
Important note: Pin 1 on the XLR connectors and the 'sleeve' connections on the
jack sockets are connected to FRAME. This is to ensure that the console can comply
with the Electro Magnetic Compatibility (EMC) directive.
7974 Oscillator, Comms & PFL module
OSC INPUT
OSC OUTPUT
BOARD LIGHTS
PFL DIRECT OUTPUT
PFL OUTPUT
PFL OUTPUT
TALKBACK MICROPHONE
Revision J2005-2
