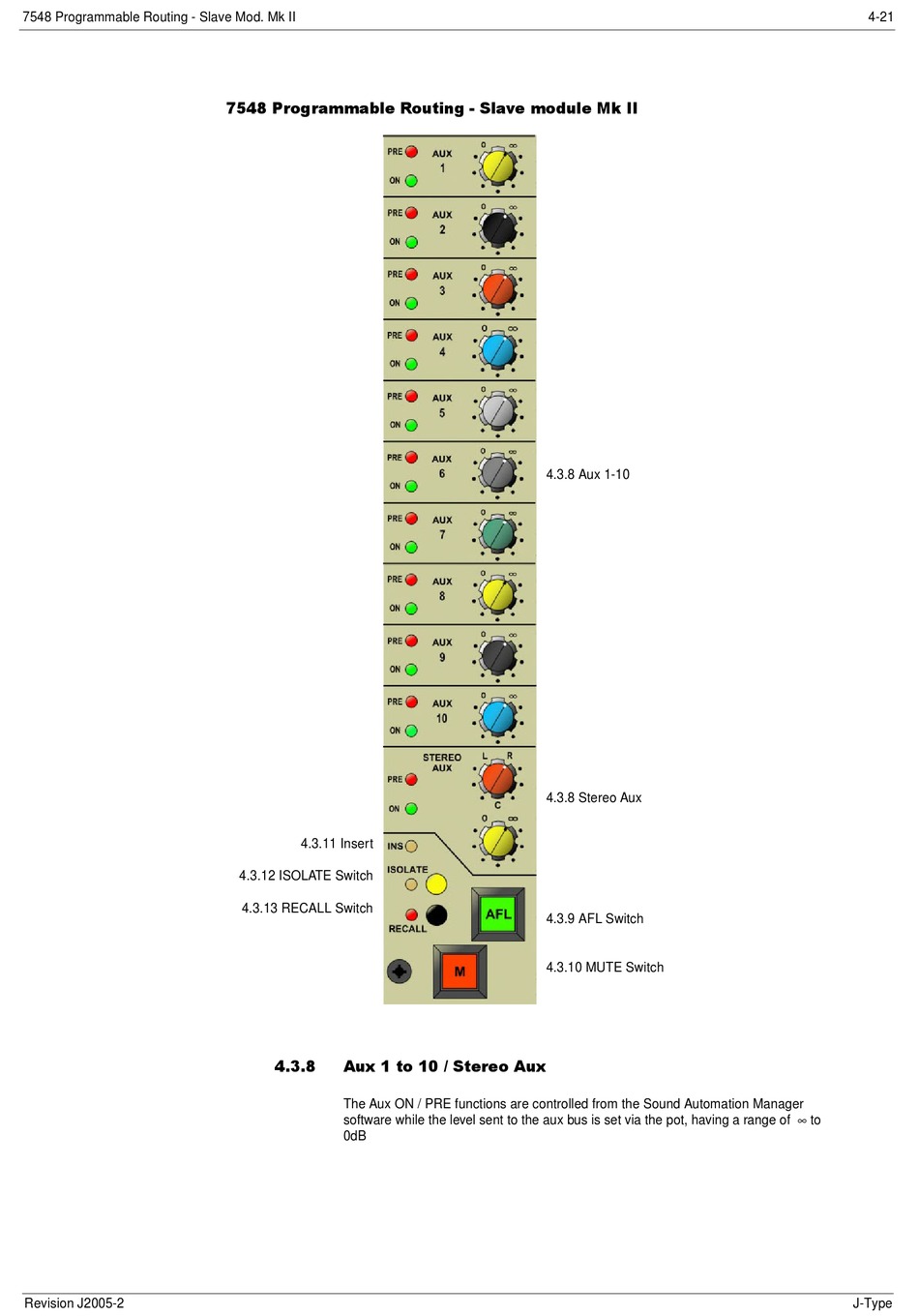

7548 Programmable Routing - Slave Mod. Mk II
Revision J2005-2
:87;#3URJUDPPDEOH#5RXWLQJ#0#6ODYH#PRGXOH#0N#,,
4.3.11 Insert
4.3.12 ISOLATE Switch
4.3.13 RECALL Switch
7161;
$X[#4#WR#43#2#6WHUHR#$X[
The Aux ON / PRE functions are controlled from the Sound Automation Manager
software while the level sent to the aux bus is set via the pot, having a range of ∞ to
0dB
4.3.8 Aux 1-10
4.3.8 Stereo Aux
4.3.9 AFL Switch
4.3.10 MUTE Switch
4-21
J-Type
